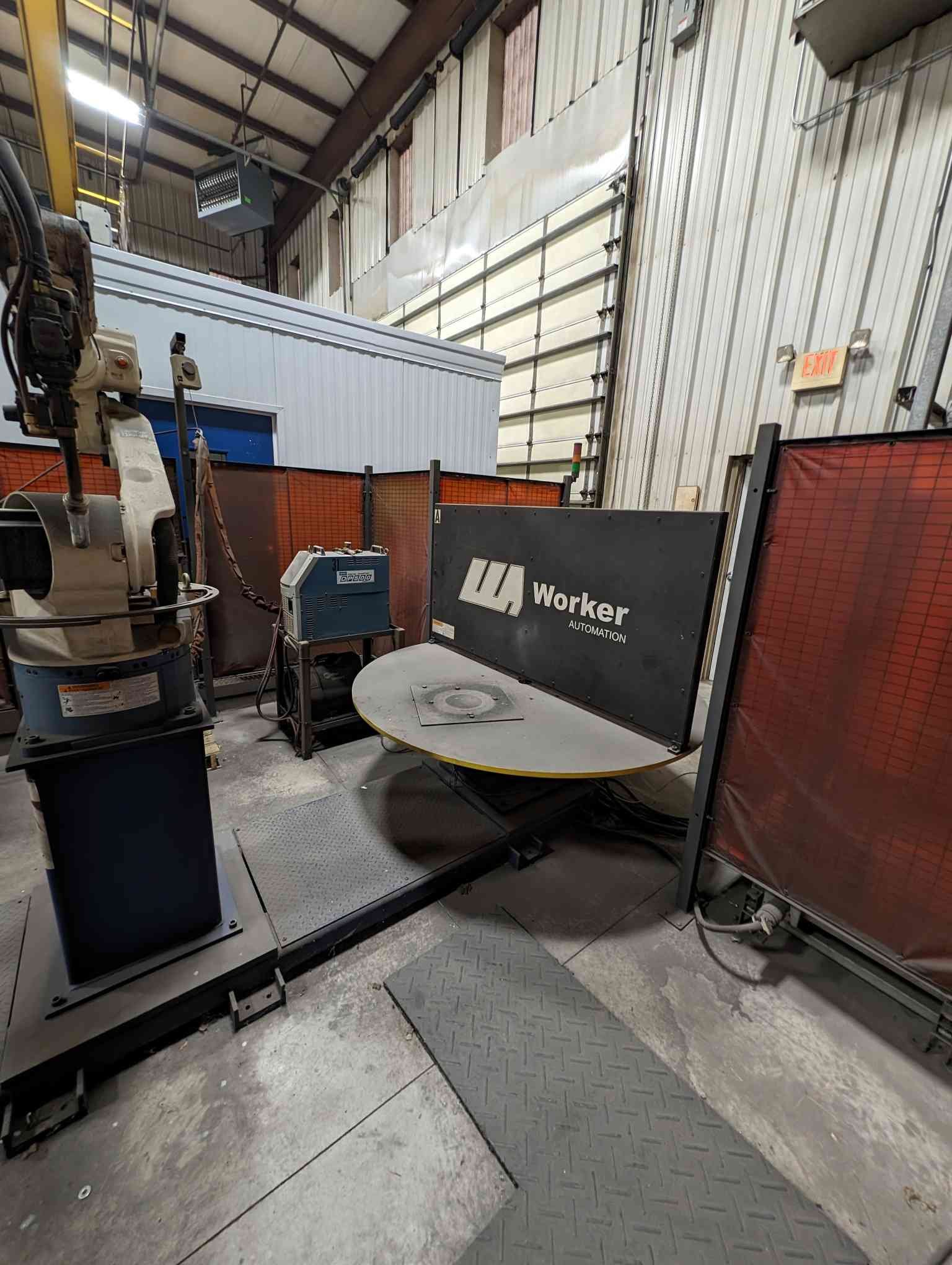

Description
Wire Feeder: AF 4001
Welding Power Source Model: DP-400
Welding Mode: DC pulse
Input Voltage: 3-phase, 380V±10%, 50/60Hz
Dimensions (W×D×H): mm 250×640×544
Weight: kg 41.5

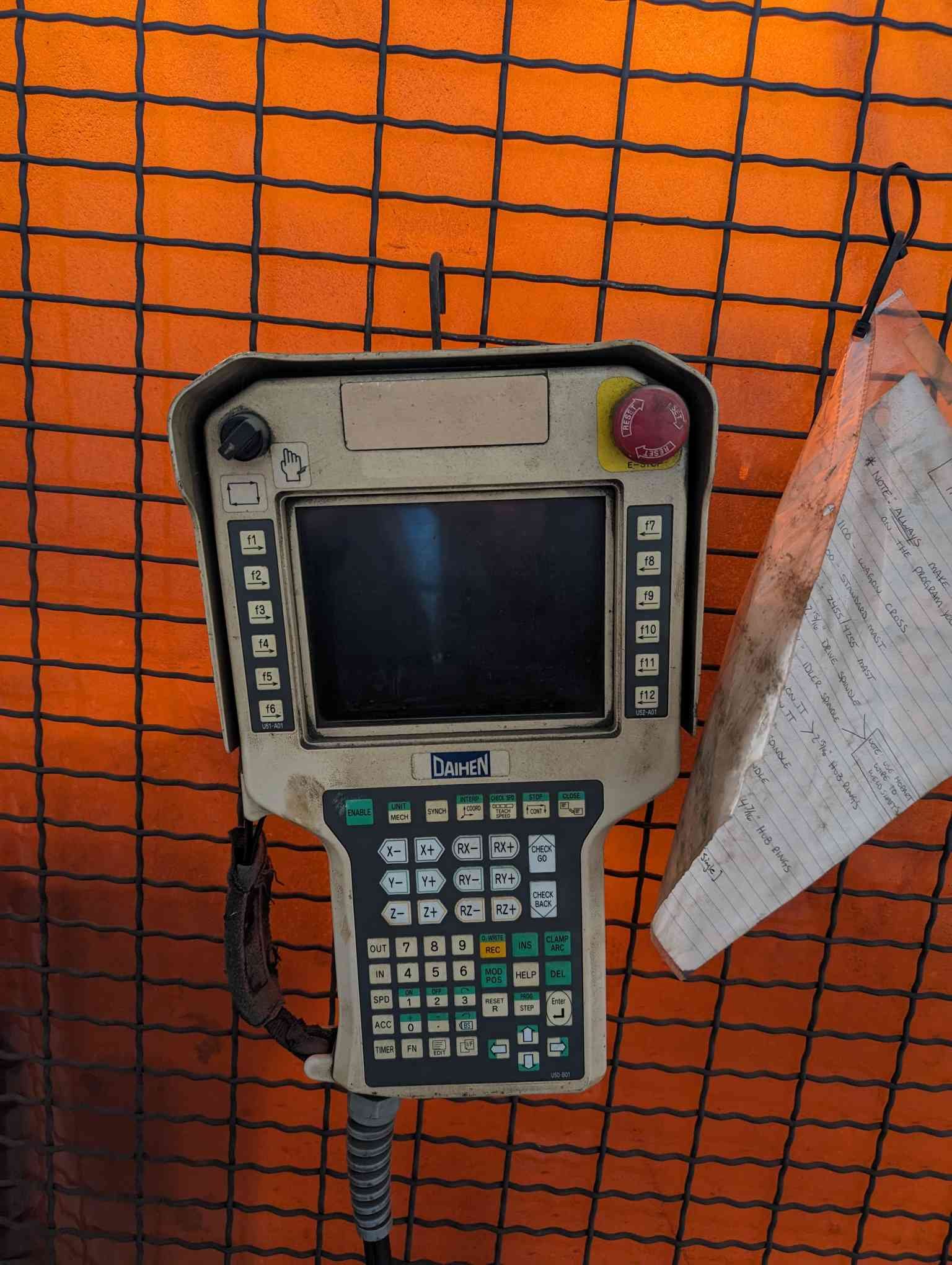

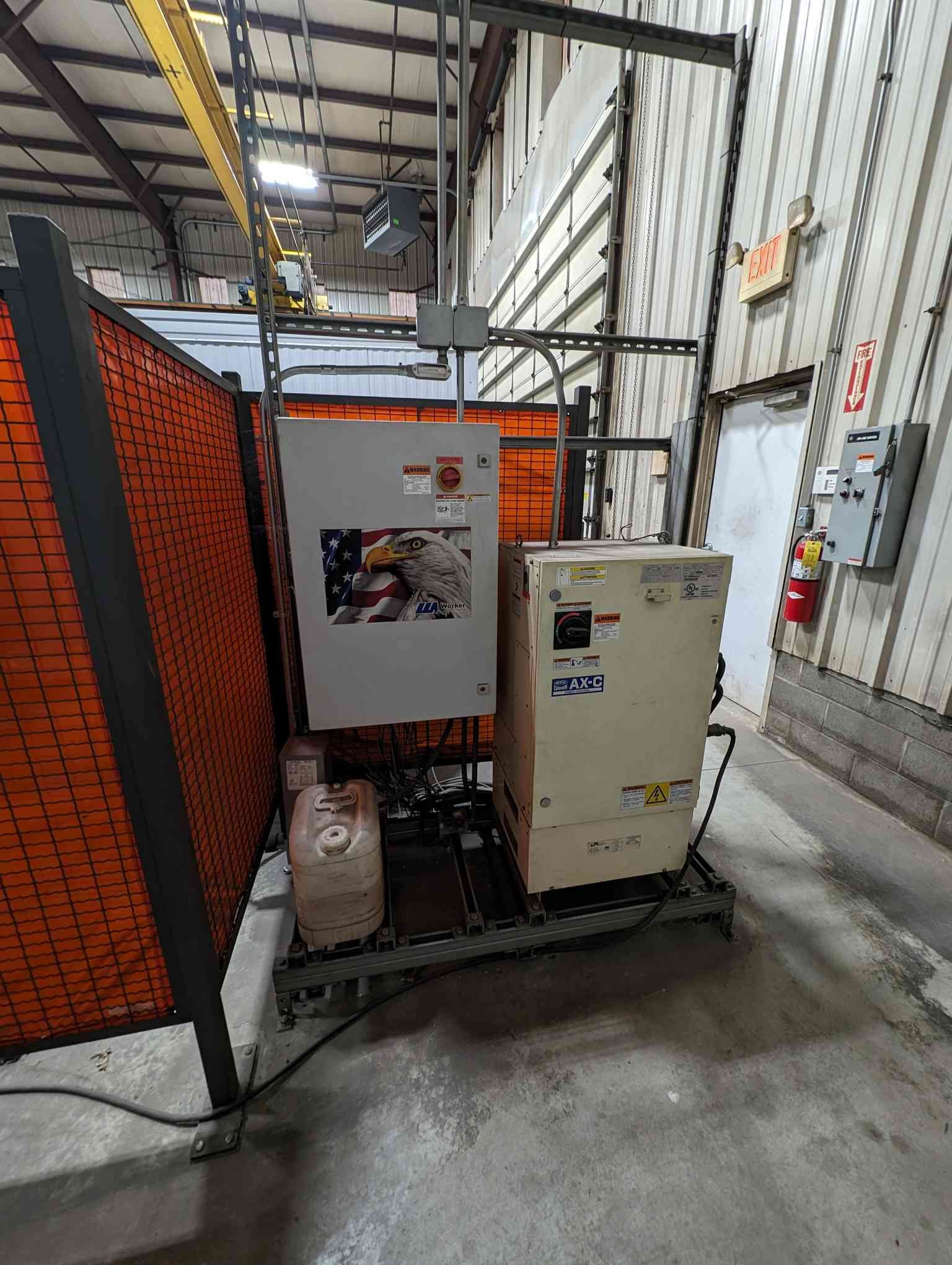

Control: AX-C

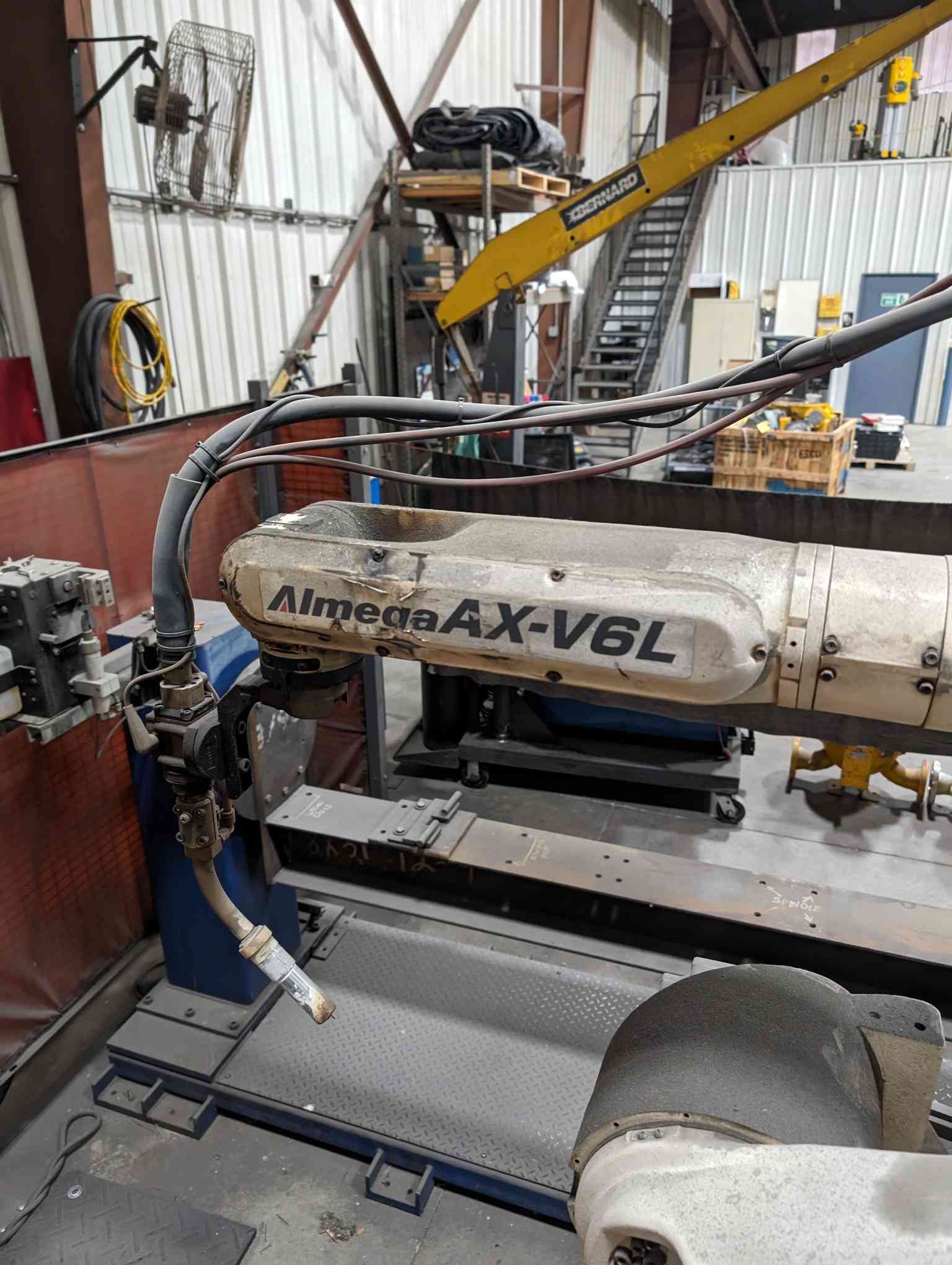

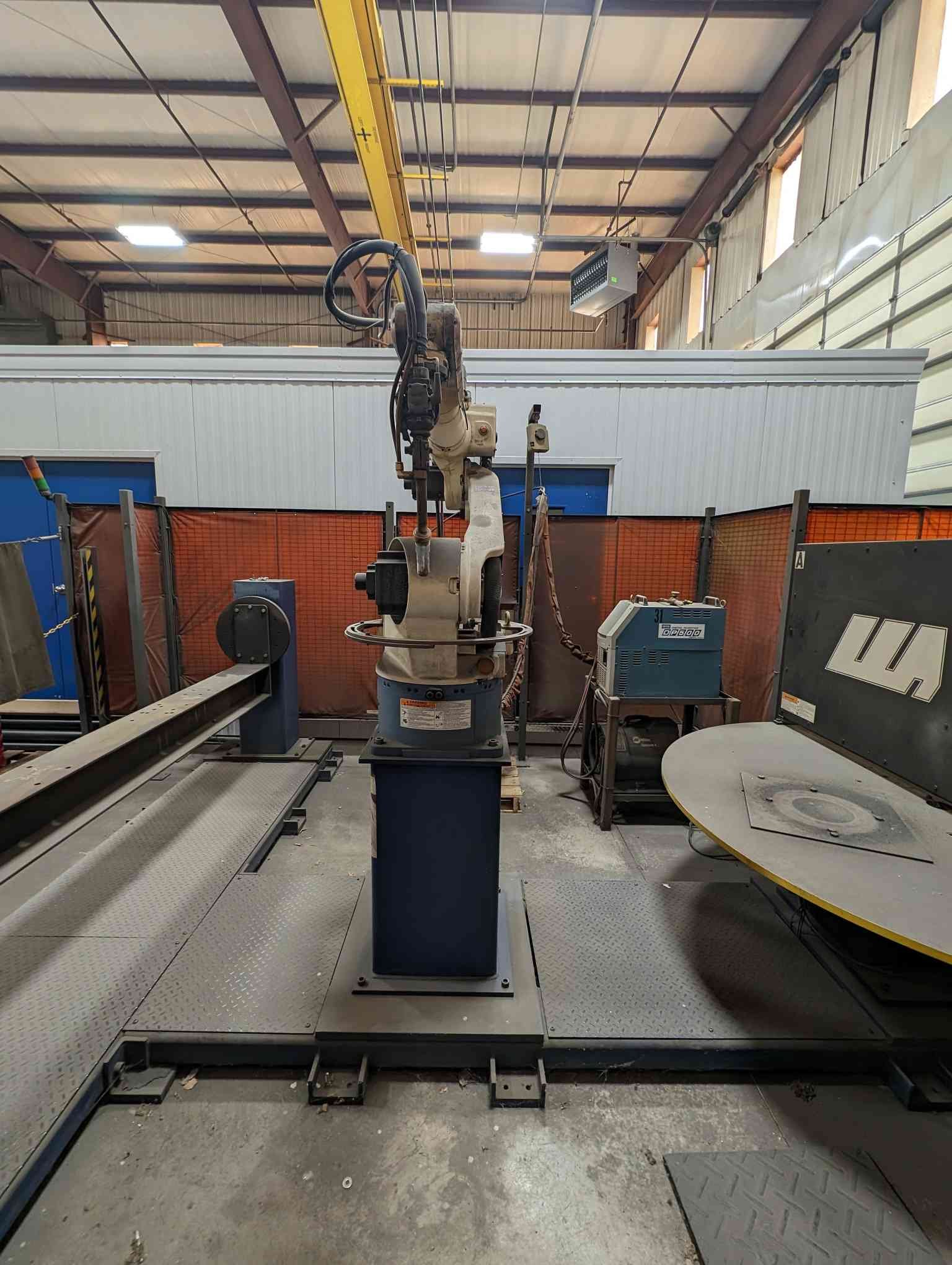

Robot: AX V6 L
General specifications:
Number of axis: : 6
Payload: 6 kg
Horizontal arm reach: 1402 mm
Accuracy / repeatability: ±0.08 mm
Axis data – motion range
Axis 1 ±170°
Axis 2 +155°, -90°
Axis 3 +190°, -170°
Axis 4 ±180°
Axis 5 +230°, -50°
Axis 6 ±360°
Robot axis Speed
Axis 1: 150 °/s
Axis 2 :150 °/s
Axis 3: 150 °/s
Axis 4: 340 °/s
Axis 5: 340 °/s
Axis 6: 520 °/s
Power Source:
DP 400
