Description

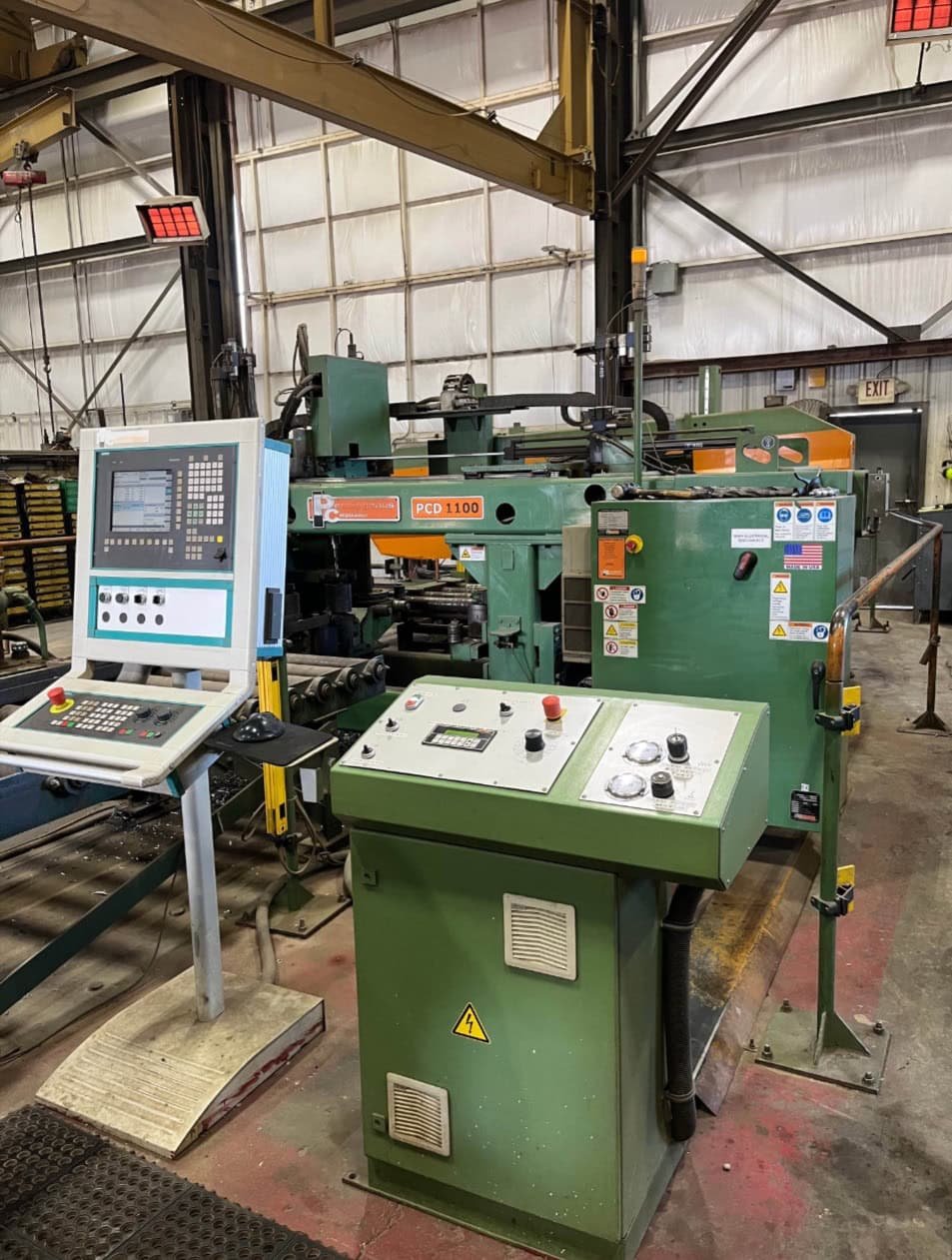

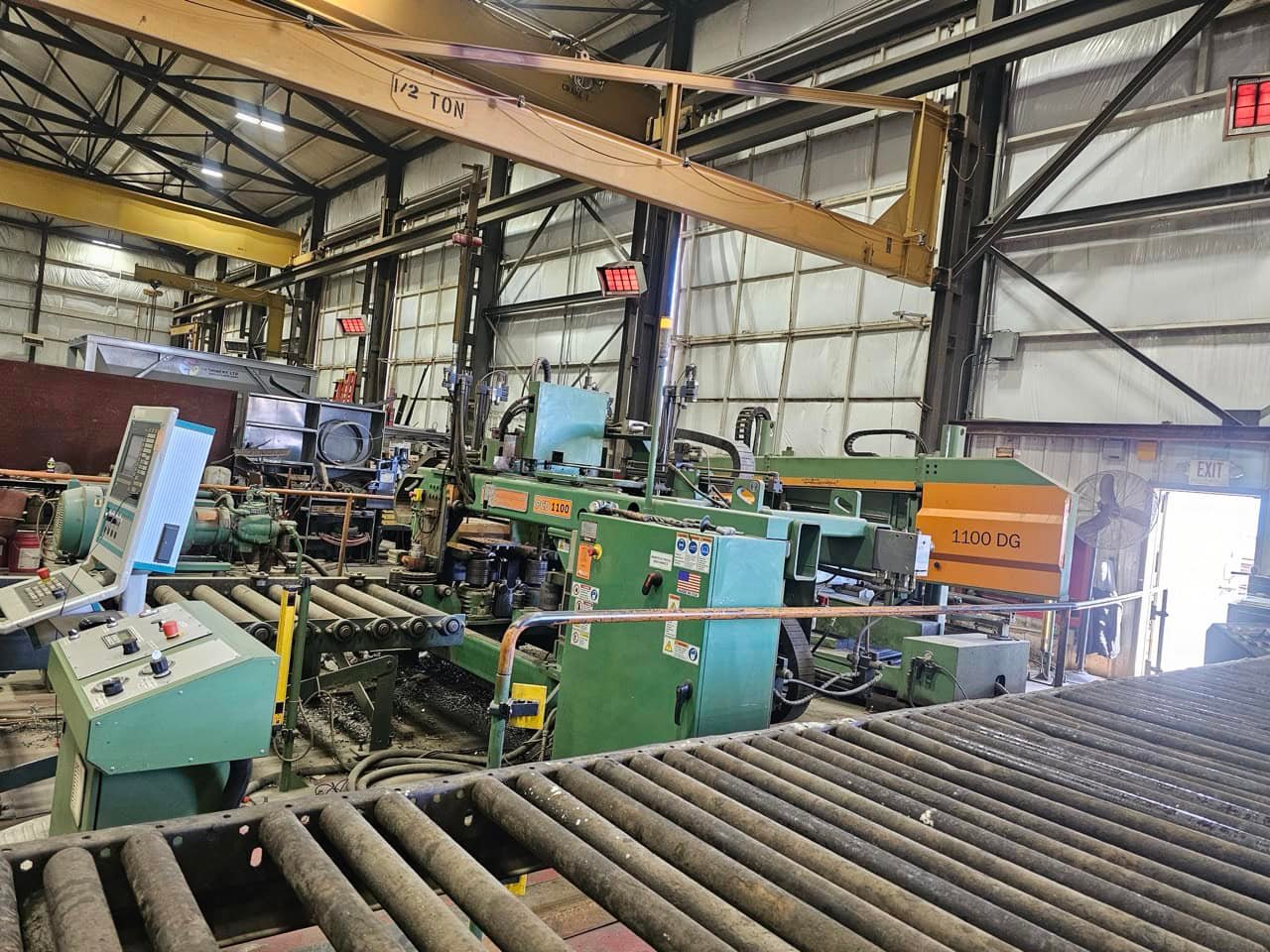

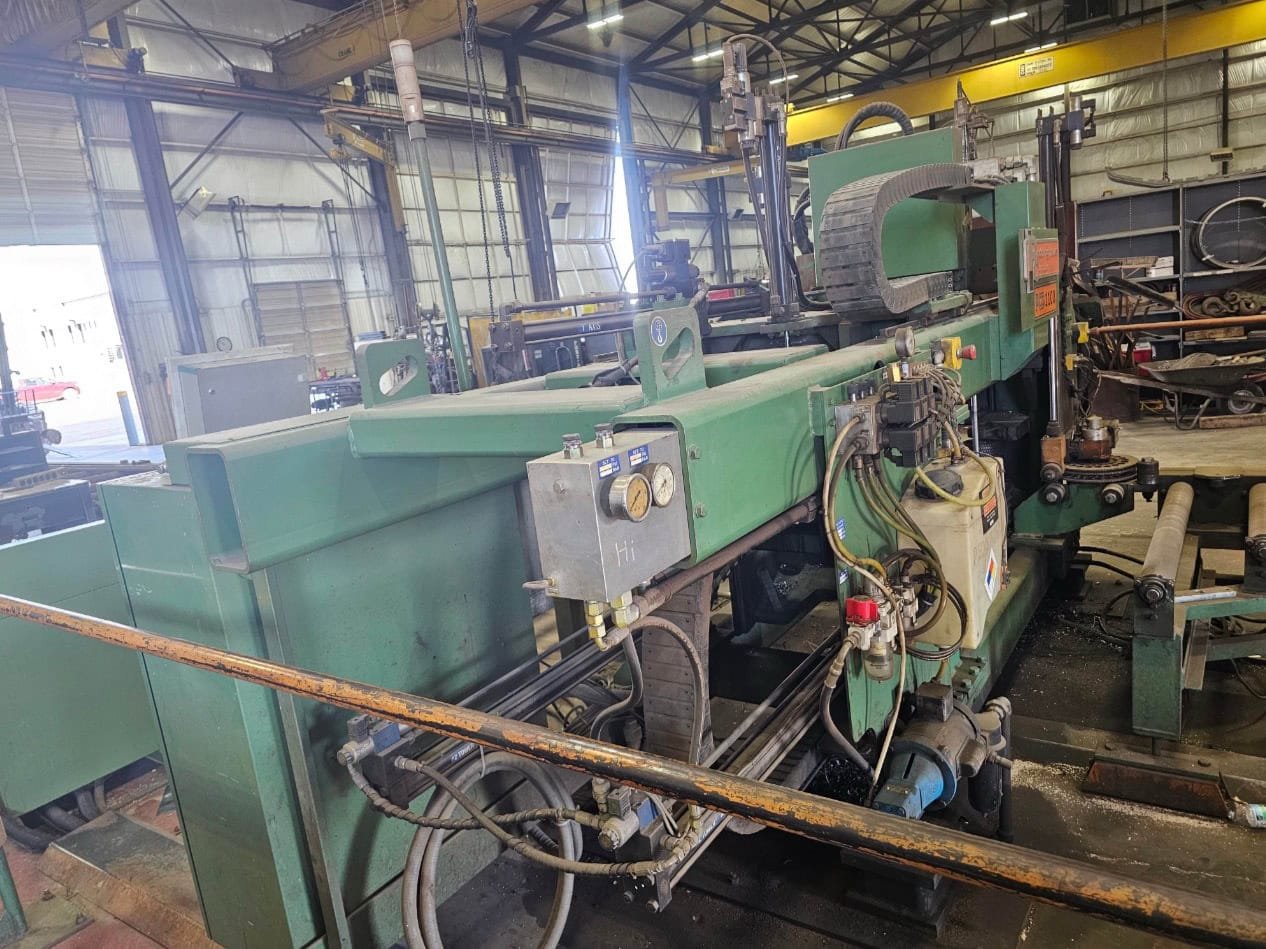

Beam Drill Line:
Maximum Machining Width: 43.31″
Maximum Machining Height: 18″
Minimum Machining Width: 3″
Minimum Length of Piece Part: 62″
Minimum Bar Stock Thickness: 3/4″
Number of Drill Spindles: 3
Drill Diameter Capacity: 1-9/16″
Spindle Power: 13.5 hp
Spindle Speeds: 200 – 850 rpm
Spindle Stroke: 13″
Positioning Stroke on Flange Drills: 0″–18″
Positioning Stroke on Web Drill: 0″– 43.31″
X-Axis Feed Rate: 130 fpm
Maximum Workpiece Weight: 18,000 lbs
Miter Saw:
Motor Power: 10.2 hp
Cutting Capacity: 44″ x 20″
Weight Limit: 18,000 lbs
Miter Cutting Angles: Capable of 90°, 45°, and 30° cuts, with a maximum of 60° in both left and right orientations
