Description
Capacity: 6″
Wall Thickness: 0.165″
Round Tubing Bending Capacity (Mild Steel):
6″ x 0.165″
Round Tubing Bending Capacity (Stainless):
4- 1/2″ x 0.250″
Steel Pipe Bending Capacity (Schedule 80): 4- 1/2 x 0.337″
Square Tubing Bending Capacity (Mild Steel):
4″ x 0.250″
Round Bar Bending Capacity (Mild Steel): 3-1/2″
Square Bar Bending Capacity (Mild Steel): 3-1/8″
Max. Radius: 25″
Max. Bend Angle: 180°
Max. Tube Length Over Mandrel: 13’6″
Bending Arm Speed: 2.3 RPM
220/480 Volt, 60 Hz, 3 Phase Electrics
Equipped With:
AM Industrial Programmable Operator Control Pedestal

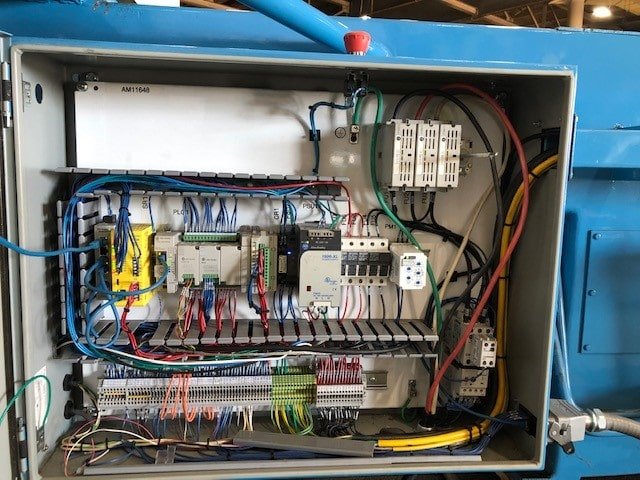

Allen Bradley PLC Control And Related Components
Hydraulic Mandrel Extractor
Automatic Machine Lubrication System
Installation/Operation/Maintenance Manuals
Refurbishment Includes:

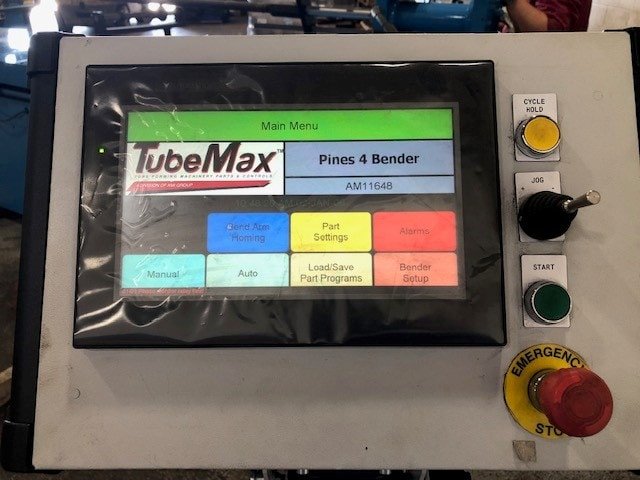

New Touchscreen Programmable Control
New Encoder For Accurate Degree Of Bend
Premium Prime And Paint
New Wiring
New Hydraulic Hoses

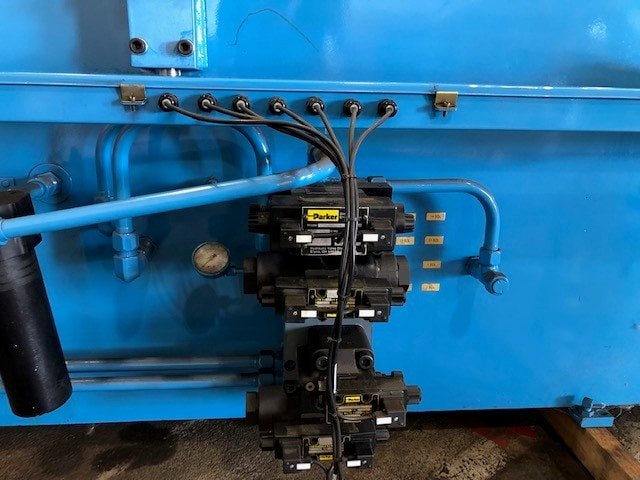

New Hydraulic Valves
Rebuild/Replace Pump
Replace Seals And Rechrome Cylinders
Readjust/Remachine Head Slides And Gibs
