Description
Saw Blade Size: 24″ x 1′ bore
Saw Spindle Speed: 1800RPM
Saw Motor: 10 HP
Servomotor (feed system): 400w
Automatic Feed Length: 18ft
Program Storage: 100
Maximum Pushing Weight: 110lbs.
Pusher Positioning Speed: 65 FPM to 165 FPM

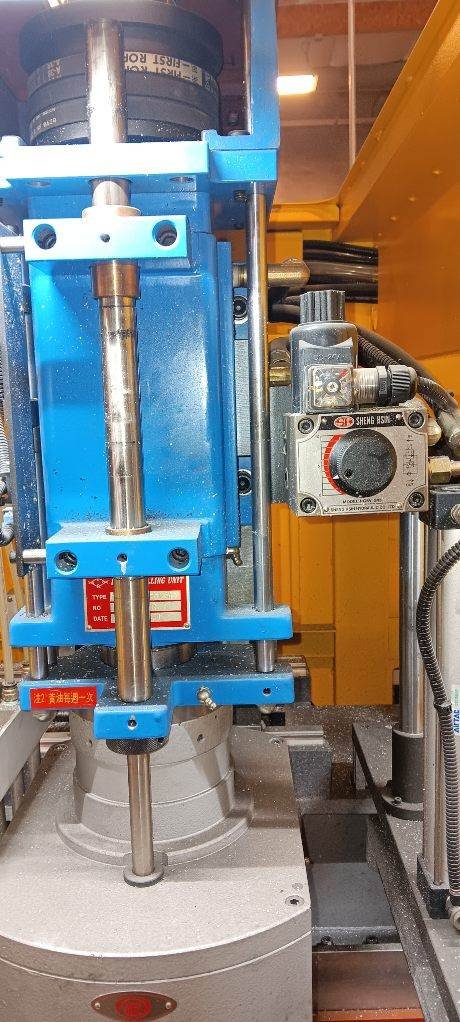

Drill Spindle Power: 3 HP
Drill Spindle Speed (inverter controlled): 600 t0 2500RPM
Machine Weight (Excludes pusher): 4000lbs.
Equipped With:

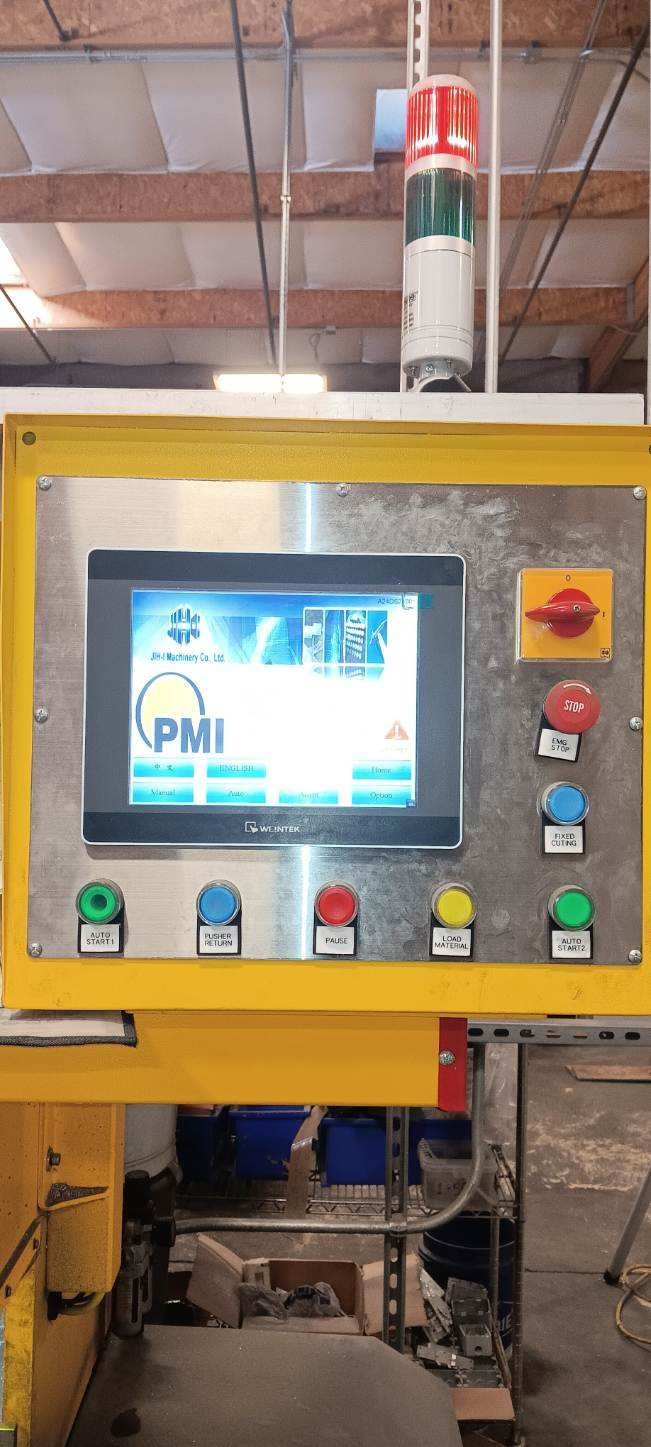

NC Control
Chip Collector
18 Foot Pusher System

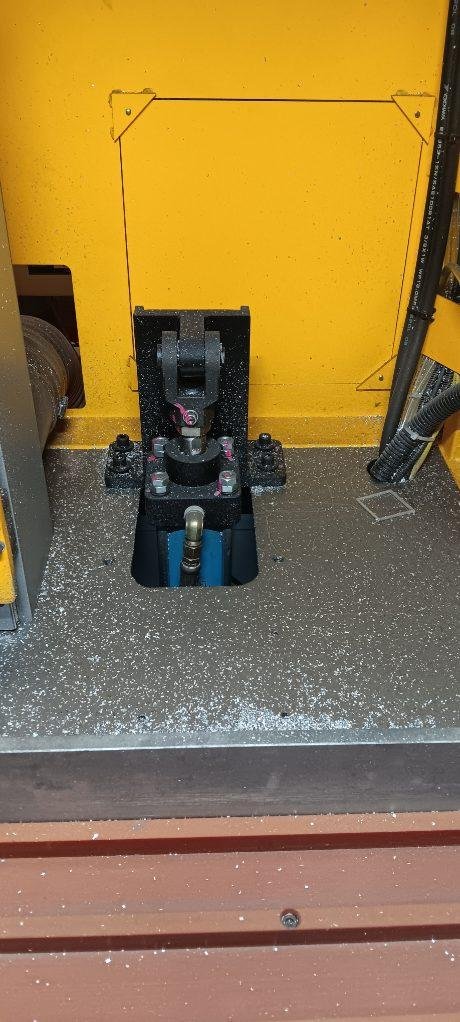

Material Clamping
