Description
EQUIPMENT OVERVIEW

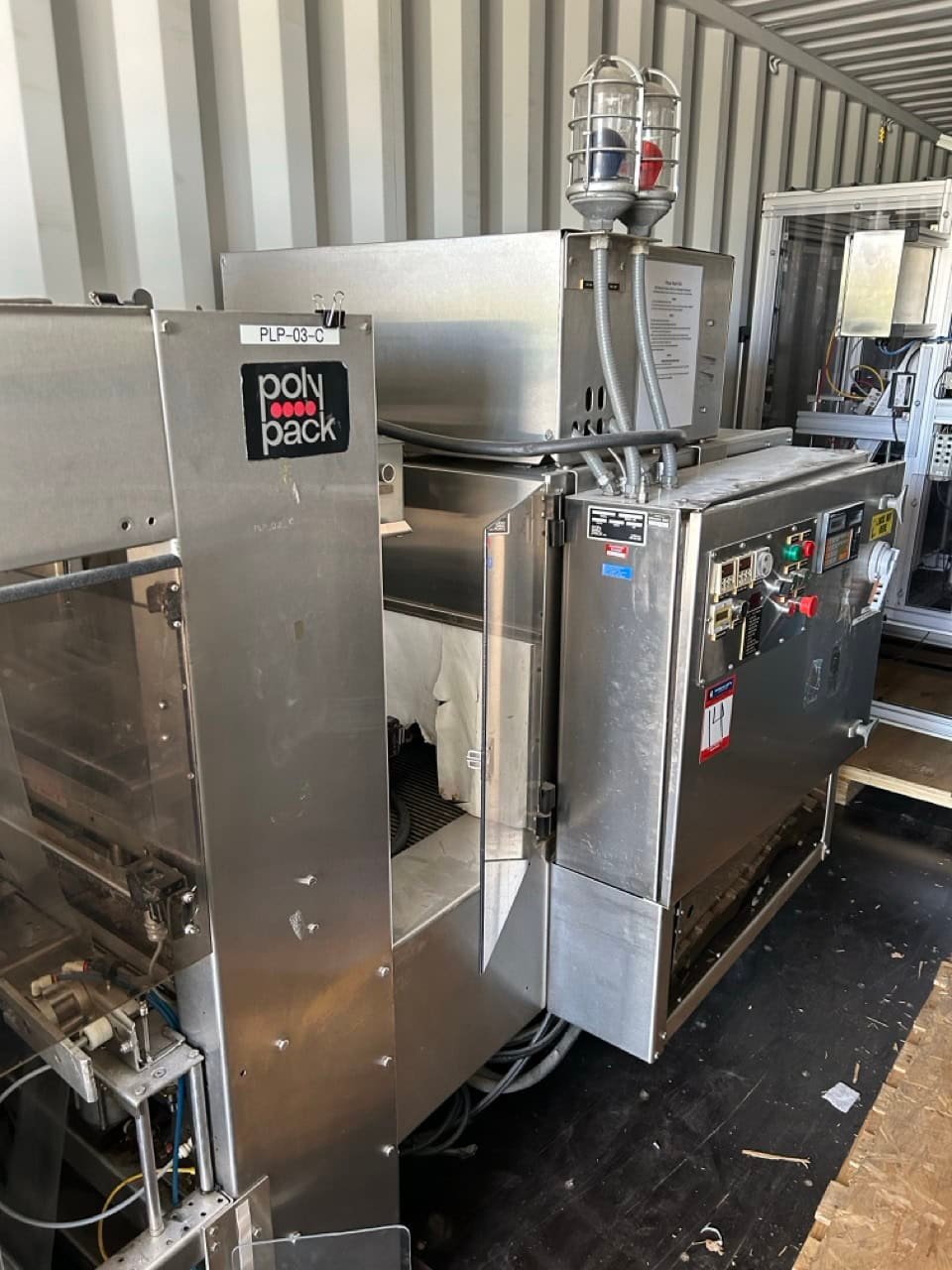

The Poly Pack PH 16 is a semi-automatic inline shrink bundler designed for moderate-speed bundling of multi-pack consumer goods, bottles, cartons, and other grouped items. With a push-through pneumatic feed and centerfold PE film compatibility, it offers flexible packaging without requiring a fully automated line. Though not integrated with a heat tunnel, it’s compatible with a wide range of external shrink tunnels.
KEY FEATURES & SPECIFICATIONS
MAX BUNDLE WIDTH: 14″
SEALING BAR WIDTH: 16″
FILM TYPE: CENTERFOLD PE SHRINK FILM
MAX FILM WIDTH: 24″–26″
OPERATION: SEMI-AUTOMATIC, PUSH-THROUGH FEED
CYCLE SPEED: 10–20 BUNDLES PER MIN (PRODUCT DEPENDENT)
CONTROL PANEL: ANALOG OR BASIC ALLEN-BRADLEY, DEPENDING ON VINTAGE
FRAME: HEAVY DUTY STEEL FRAME WITH LEXAN SAFETY GUARDS
GUARDING: INTERLOCKED DOORS, FRONT & REAR ACCESS PANELS
BUNDLING TYPE: BULLSEYE SHRINK WRAP, NO PAD
HEAT TUNNEL: NOT INCLUDED
AIR REQUIREMENTS: 80 PSI @ 4 CFM
ELECTRICAL REQUIREMENTS: 208V / 60A / 60HZ
DIMENSIONS: APPROX. 120″ L × 48″ W × 60″ H
WEIGHT: APPROX. 1,500 LBS
