Description

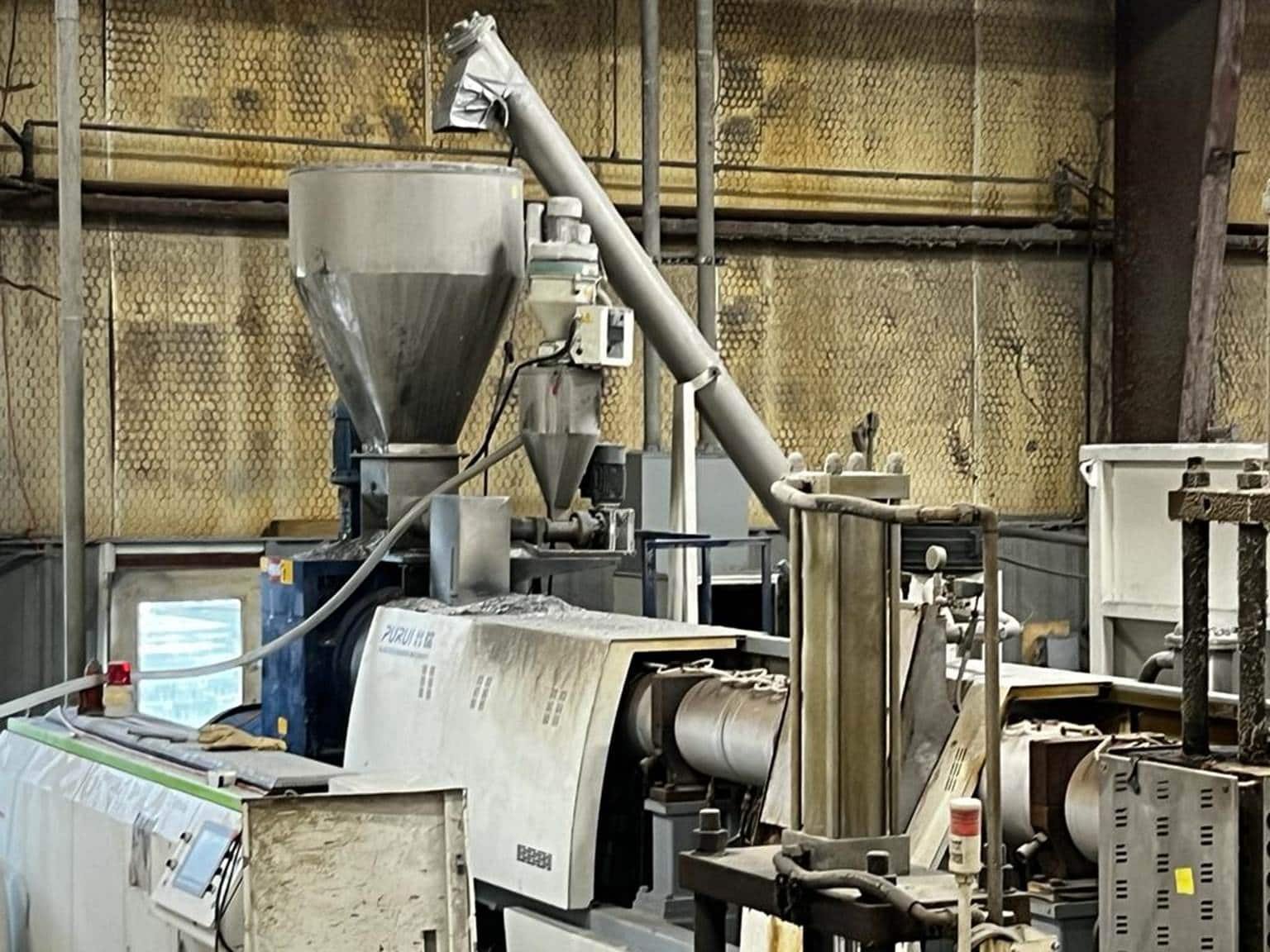

Dual stage 8“ single screw pelletizing system
Main Extruder 32:1
Secondary Extruder 10:1
MFG: Purui, Model: SJ200/32, MFG Date: 2018
1.（L/D):32：1
2.Screw diameter：200mm
3. AC motor power：250kW
4.Rotate speed：10~100rpm
5.Cooling method：force wind cooling
6.Lubrication ：Force lubrication
7.Heating method：Electrical heater
8.Control section：9 sections（including machine head）
9. Frequency inverter
Secondary Extruder of dual extruder system, Model SJ200/10:
1.（L/D）：10 ：1
2.Screw diameter：200mm
3. AC motor power：75kW
4.Rotate speed：10~100rpm
5.Cooling method：force wind cooling
6.Lubrication ：Force lubrication
7.Heating method：Electrical heater
8.Control section：4 section（including machine head）
Includes:
1 Large Feeding silo with sensor, 3-4 ton capacity
2 Spiral feeding conveyor
3 Feeding silo
4 SJ200/32 single screw extruder
5 350mm Hydraulic screen changing system
6 SJ200/10 single screw extruder
7 350mmHydraulic screen changing system
8 Pelletizer system
9 Dewatering vibrating screener
10 Dewatering fan & 2M stainless silo
11 Control cabinet
12 Spare parts
13 WEG motor with UL certificate
14. Control cabinet conforms with UL standard
