Description

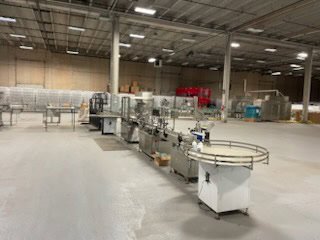

Qingdao MG High Speed Gel Sanitizer Anti-Explosive Filling line with Labeler and Robotic Palletizer, 2020:
– Bottle capacity: 1 gallon
– Filling speed: 8500-9500 Bottles per hour for standard 1 gallon bottles
– Filling liquid is gel hand sanitizer

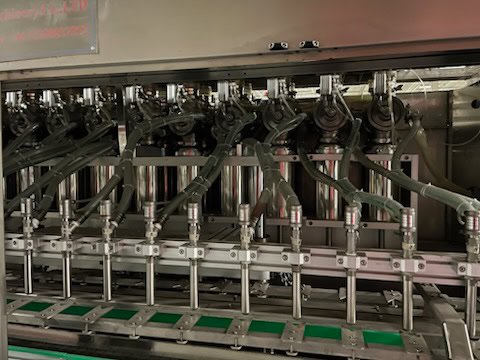

20 Nozzle Double Row Back High Speed Filler
– Features corrosion and oxidation resistant technology
– 8500-9500 bottles per hour
– Machine material: SUS 316L
– Single cylinder capacity: 200ML-5000ML
– Power: 380Vk 5.5Kw
– Bottle size range: 30mm-150mm
– Filling error: – Machine weight: 1500 kg
– Air requirements: 0.4Mpa-0.6Mpa

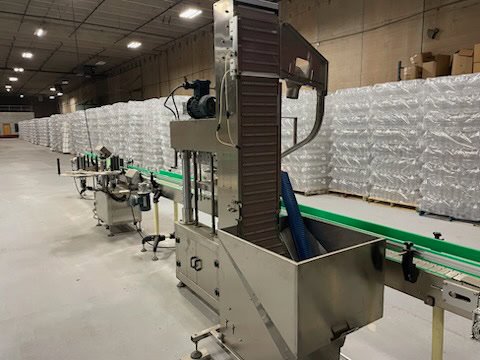

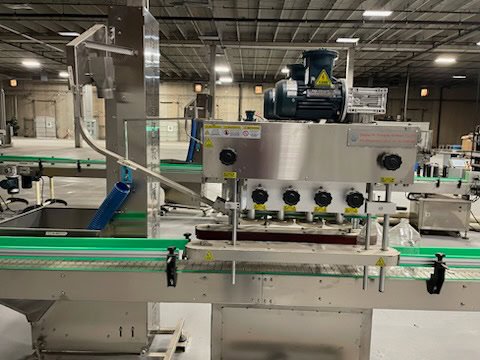

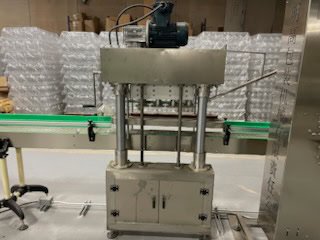

Fully Automatic Anti Explosion Capping Machine
– Wheels: 8
– Capping speed: 9000 screw caps per hour
– Anti explosive motor
– Cap diameter range: 10-100mm
– Bottle height range: 60-350mm

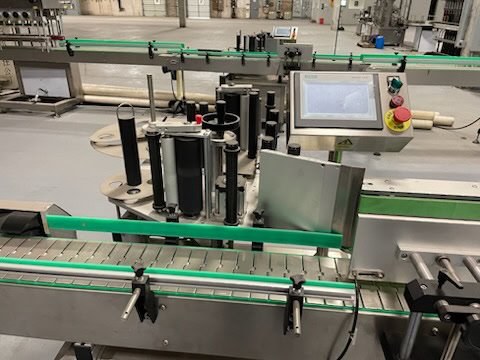

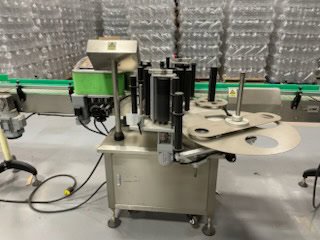

High Speed Automatic Round Bottle Label Machine
– Label accuracy: +/- 0.1mm
– Labeling speed: up to 250 pieces per minute
– Weight: 185kg
– 220V, 50Hz, 980W
– Equipment size: 1950mm L x 1100mm W x 1300mm H

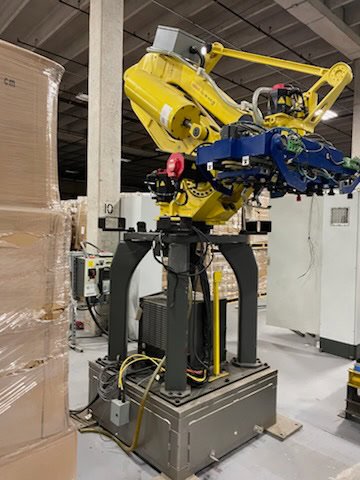

Robot Palletizing Line:

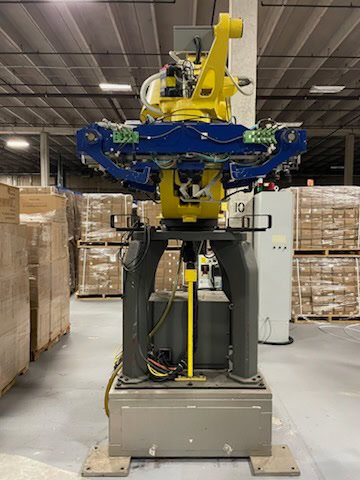

– Fanuc M-410iB robotic palletizer with stand.

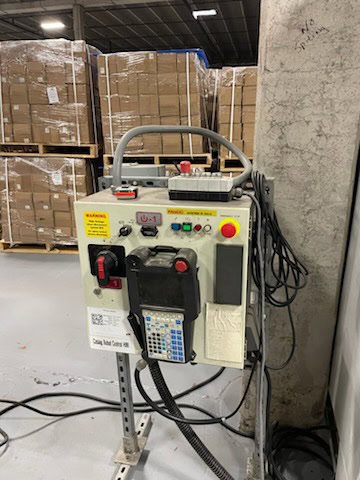

– Fanuc R30iB Controller.
– Fanuc wrap around stretch wrapper with associated roller bed.
*year estimated based on year purchased
