Description
Main Spindle:
Maximum Bar Working Capacity: 1.65″
Maximum Turning Length: 9.8″
Spindle Speed Range: 6,000 rpm
Spindle Motor Power: 15 hp
Spindle Nose: A2-5
C-Axis Increment: 0.001°

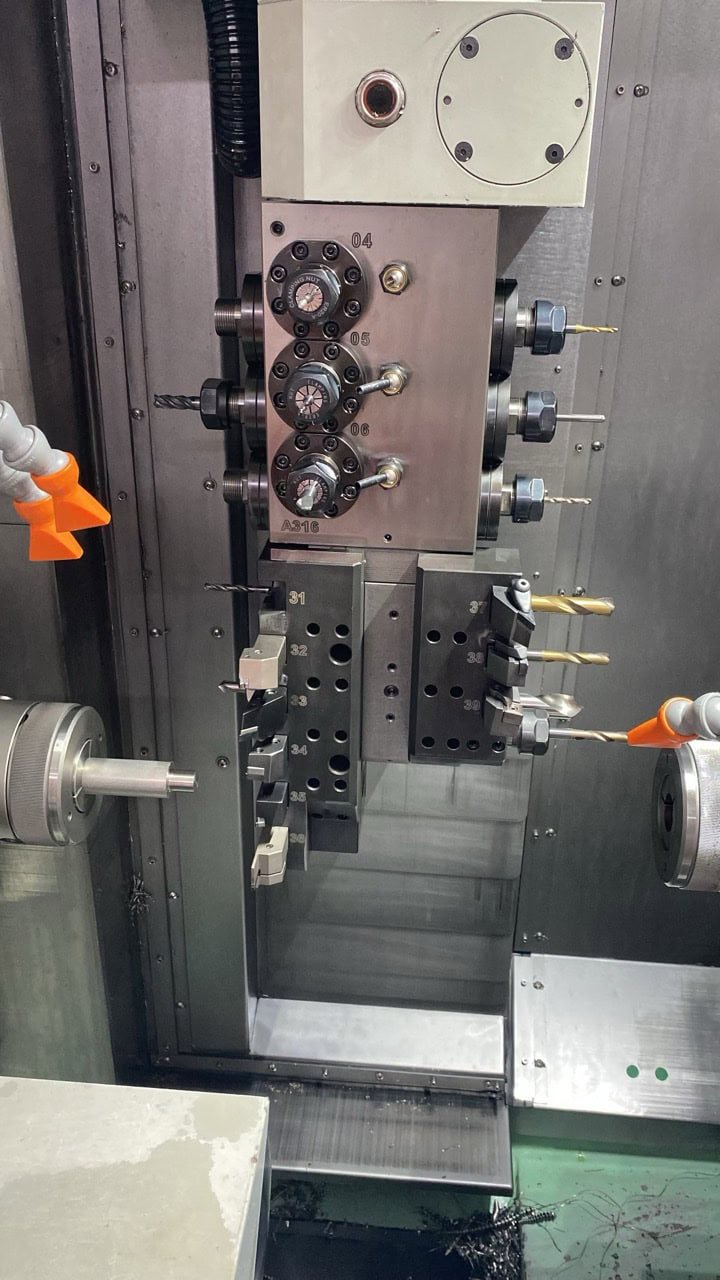

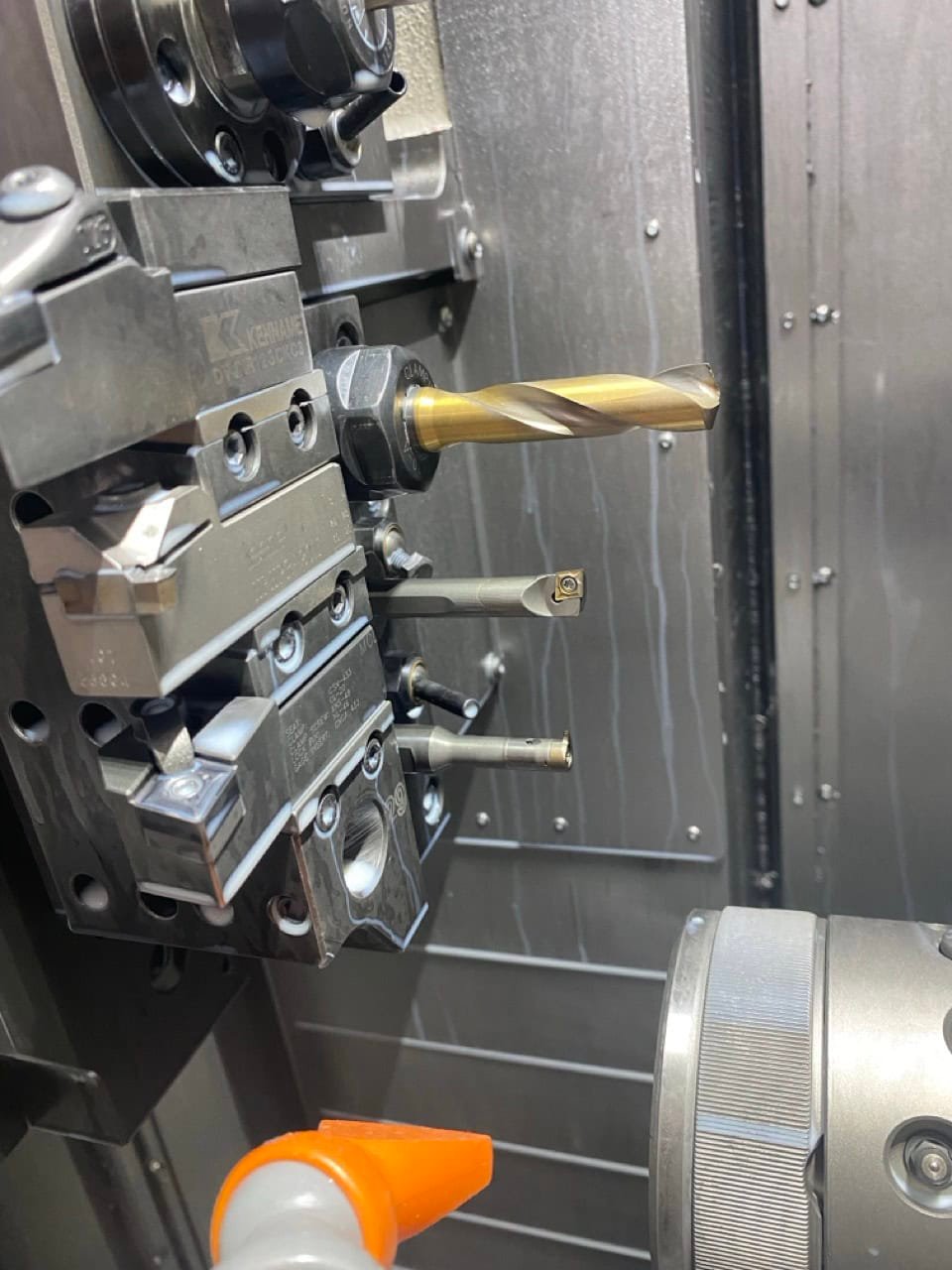

Tooling Type: Gang Tool with Servo Y-Axis and KM-25 Quick Change

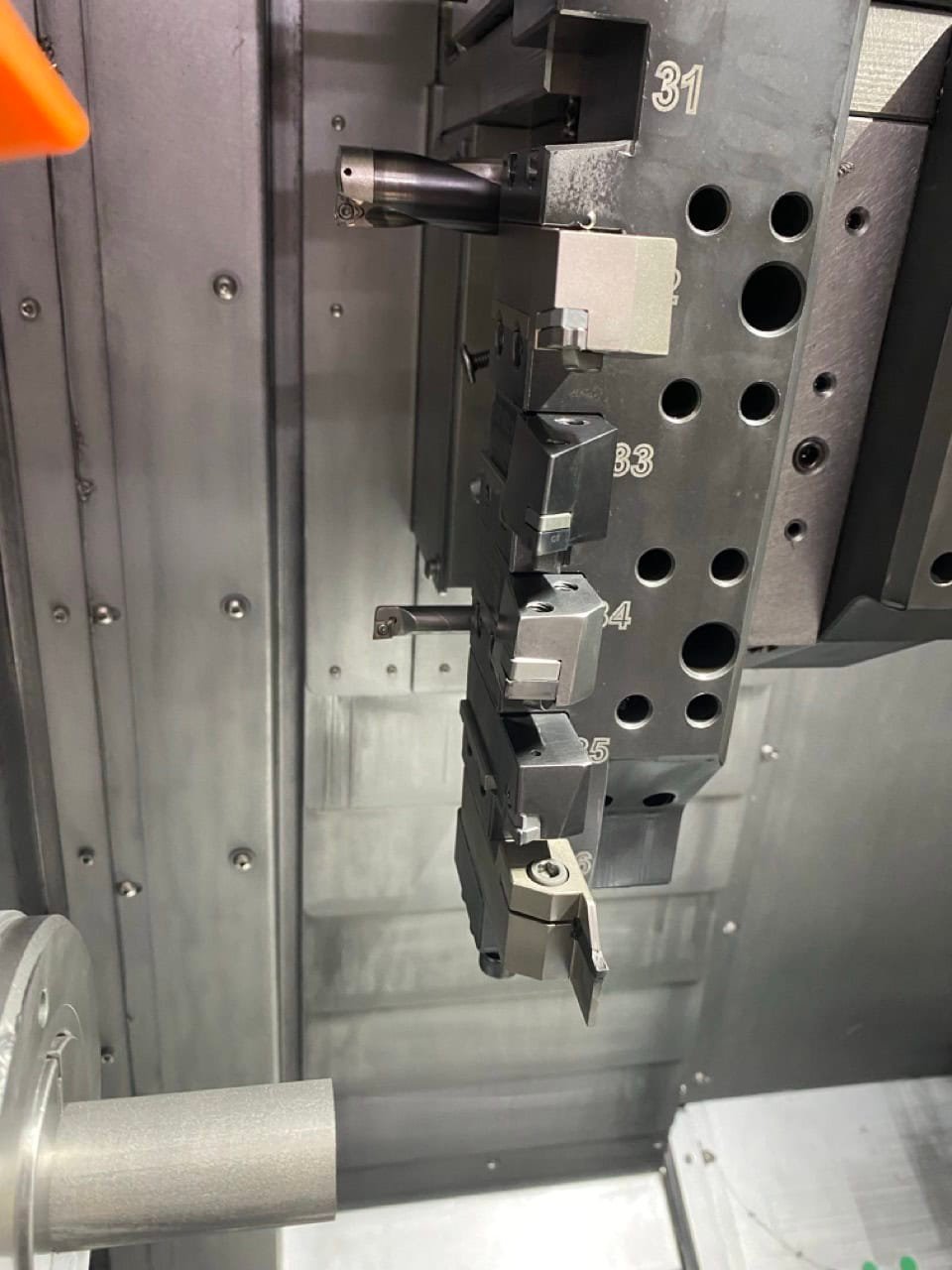

Number of Turning Tools: 6 O.D. tools (5 + 1 cut-off) and 5 I.D. tools
Square Shank Size: 0.75″
Boring Bar Capacity: 0.75″
B-Axis Rotation: 360°
B-Axis Index Time: 0.3 seconds for 90° / 0.6 seconds for 360°

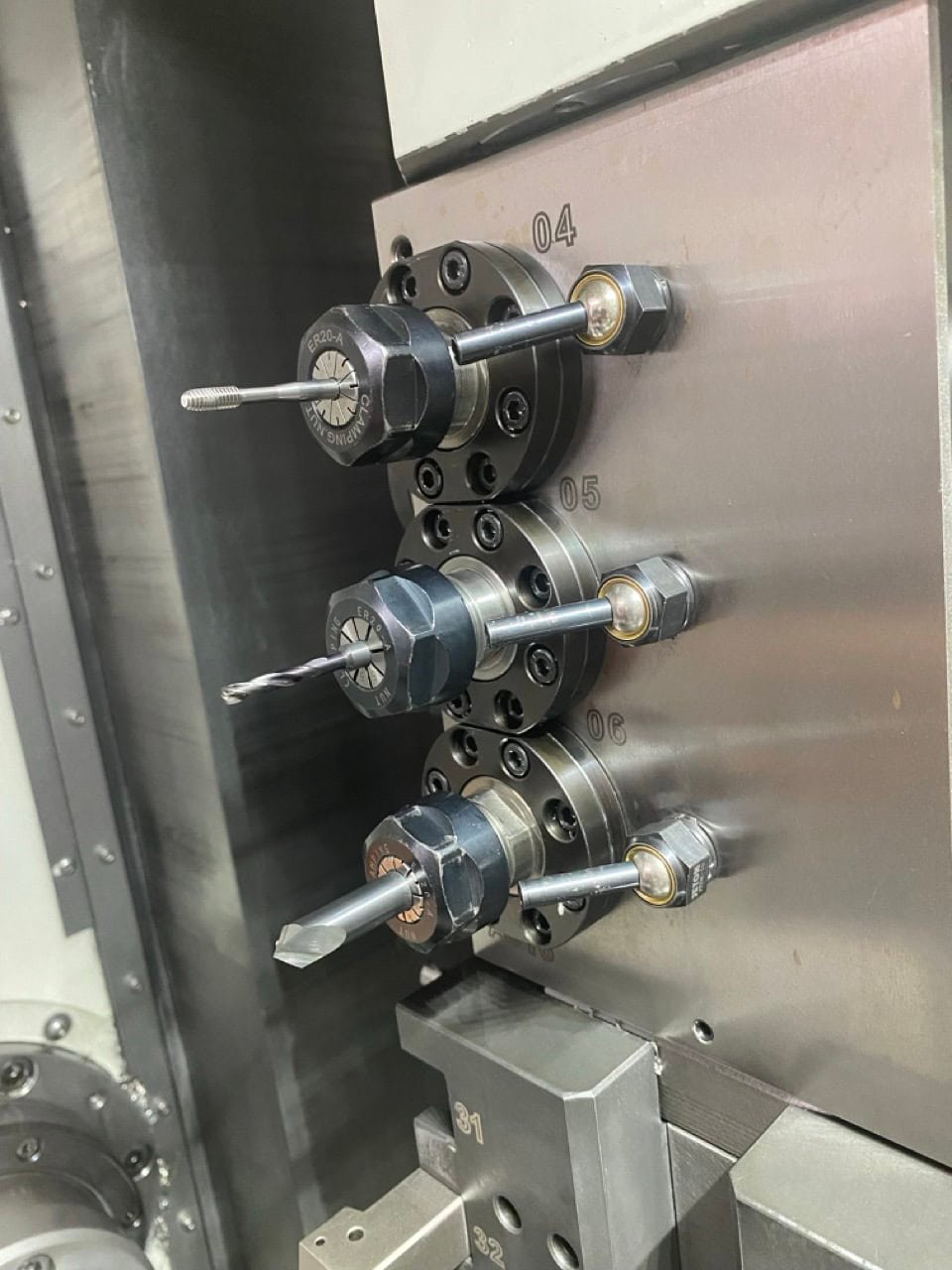

Number of Live Tools: 12
Live Tool Spindle Motor Power: 2 hp
Live Tool Spindle Speed: 4,000 rpm
Live Tool Shank: ER-20 Collet
Sub Spindle:
Maximum Bar Working Capacity: 1.65″
Maximum Turning Length: 3.94″
Spindle Speed Range: 6,000 rpm
Spindle Motor Power: 7.5 hp
C-Axis Increment: 0.001°
Tooling Type: Gang Tool with Servo Y-Axis and KM-25 Quick Change
Number of Turning Tools: 5 O.D. tools and 9 I.D. tools
Square Shank Size: 0.75″
Boring Bar Capacity: 0.75″
B-Axis Rotation: 360°
B-Axis Index Time: 0.3 seconds for 90° / 0.6 seconds for 360°
Number of Live Tools: 12
Live Tool Spindle Motor Power: 2 hp
Live Tool Spindle Speed: 4,000 rpm
Live Tool Shank: ER-20 Collet
Rapid Traverse Rate: 1,181 ipm
Approx. Dimensions: 138″ x 75″ x 75″
Approx. Weight: 10,000 lbs
Equipped With:
12′ Tracer Bar Feeder
