Description

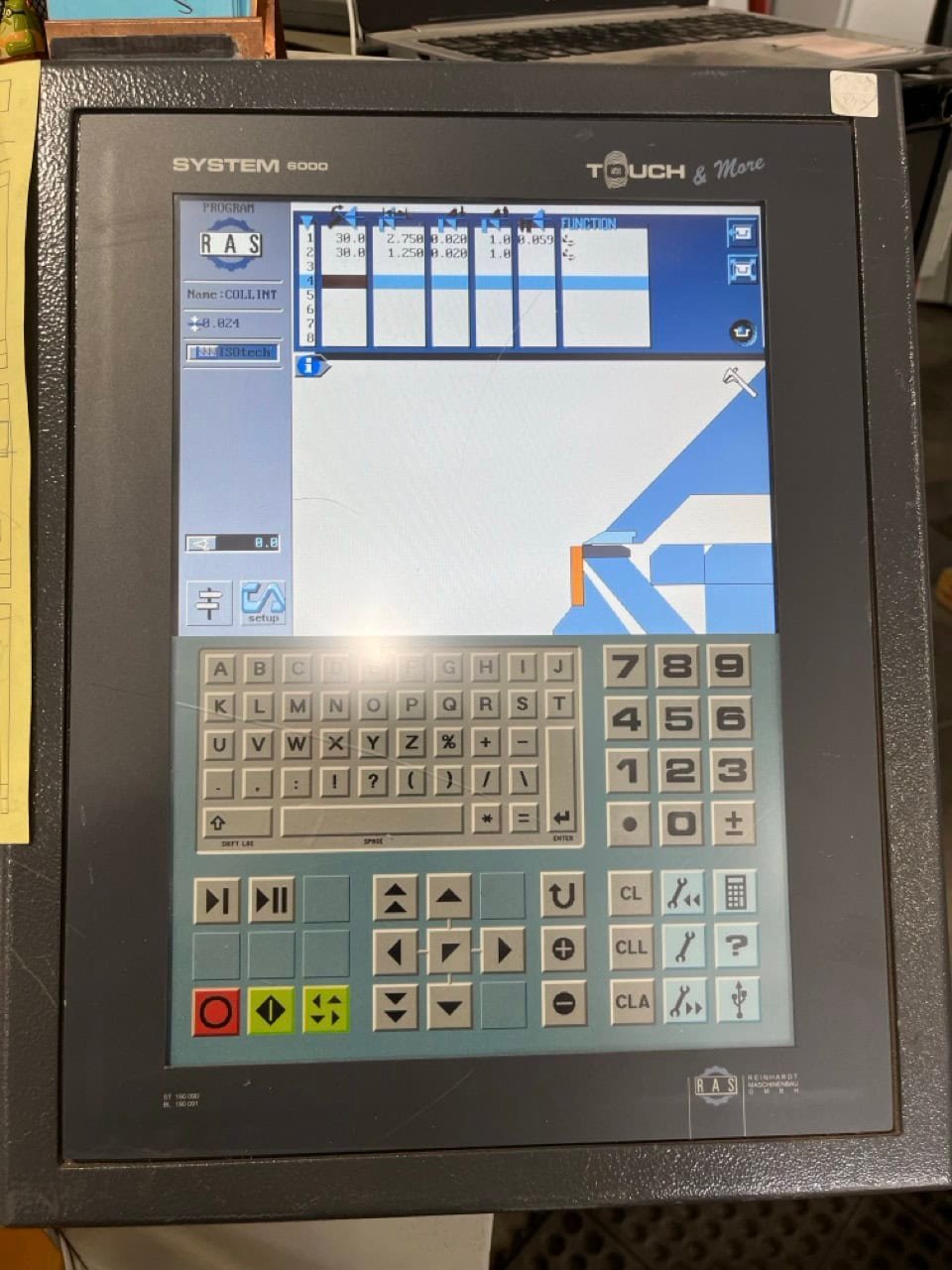

System 6000 Touch Screen control
Max Thickness 0.0591″
Max Thickness (gauge) 16 gauge
Max Bending Length Length 124″ (3150 mm)
Maximum Sheet Thickness 16 ga/1.5mm CNC
Folding Beam Adjustment 0” – 0.217”/ 0 – 5.5mm
Maximum Length 124”/3150mm
Motor Drive Power Upper Beam 1 hp/.75 kw

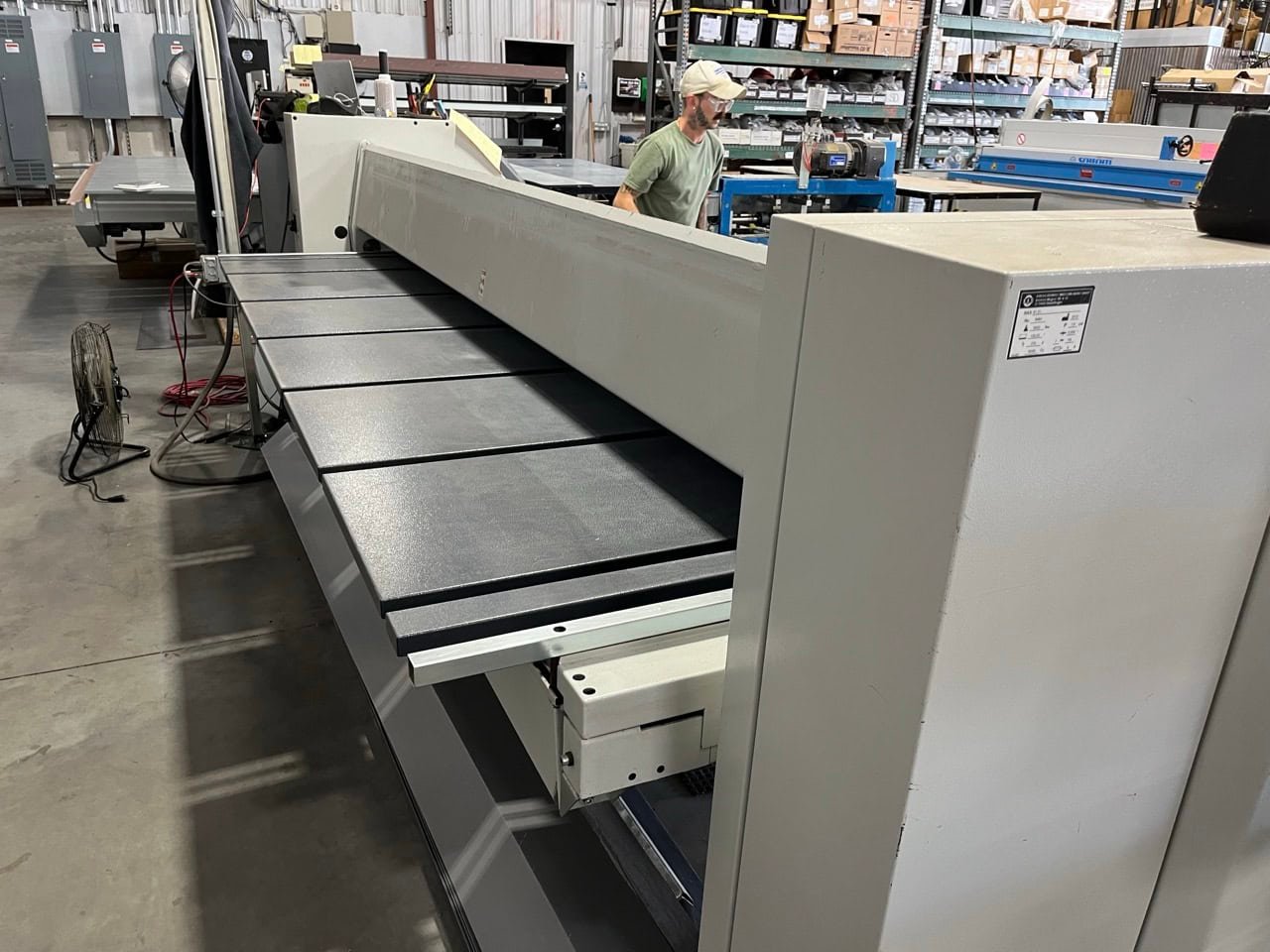

Back gauge Depth 0.236” – 39.4” / 6-1000mm
Motor Drive Power Folding Beam 1.5 hp/1.1 kw
Machine Length 170”/4320mm
Down stroke Speed 2.5”/sec 6mm/sec
Machine Width 55.1”/1400mm
Folding Beam Speed 180 degrees/sec
Machine Height 54.33”/1380mm
Back gauge Speed (0.4” to 39.3”/8mm – 1000mm) 1.9 sec
Working Height 33.5”/850mm
Back gauge Accuracy .004”/.15mm
Maximum Upper BeamUpstroke 0 – 4.73”/ 0 – 120mm
Machine Weight 5,500 lbs.
Dimensions Approx. Shipping Dimensions: 175″ L x 64″ W x 56″ H
Weight: 5,500
