Description
Robot
Payload: 12 kg
H-Reach: 1420 mm
Repeatability: ±0.08 mm
Robot Mass: 130 kg
Axes: 6
Structure: Articulated
Mounting: Floor, Inverted, Angle

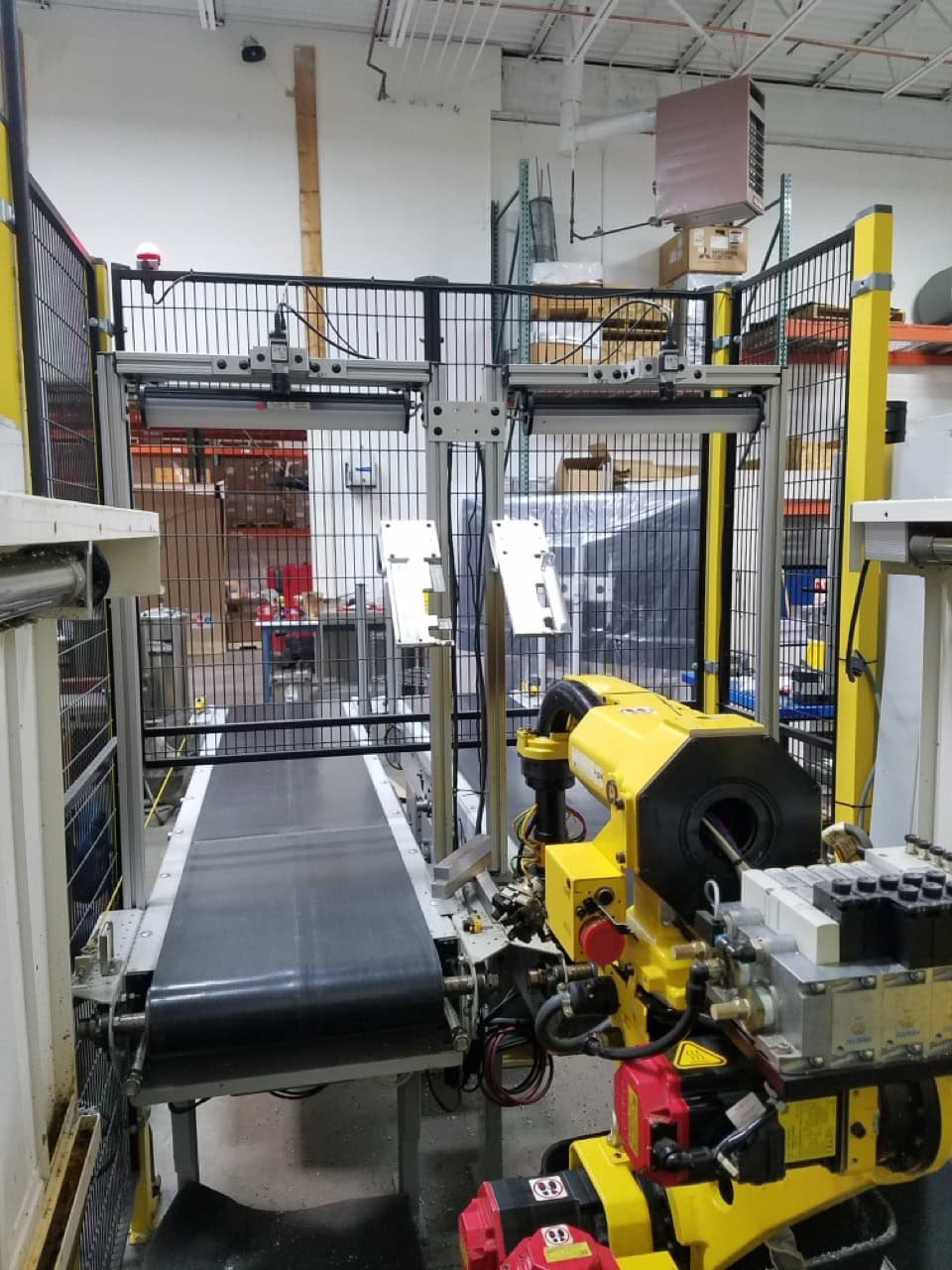

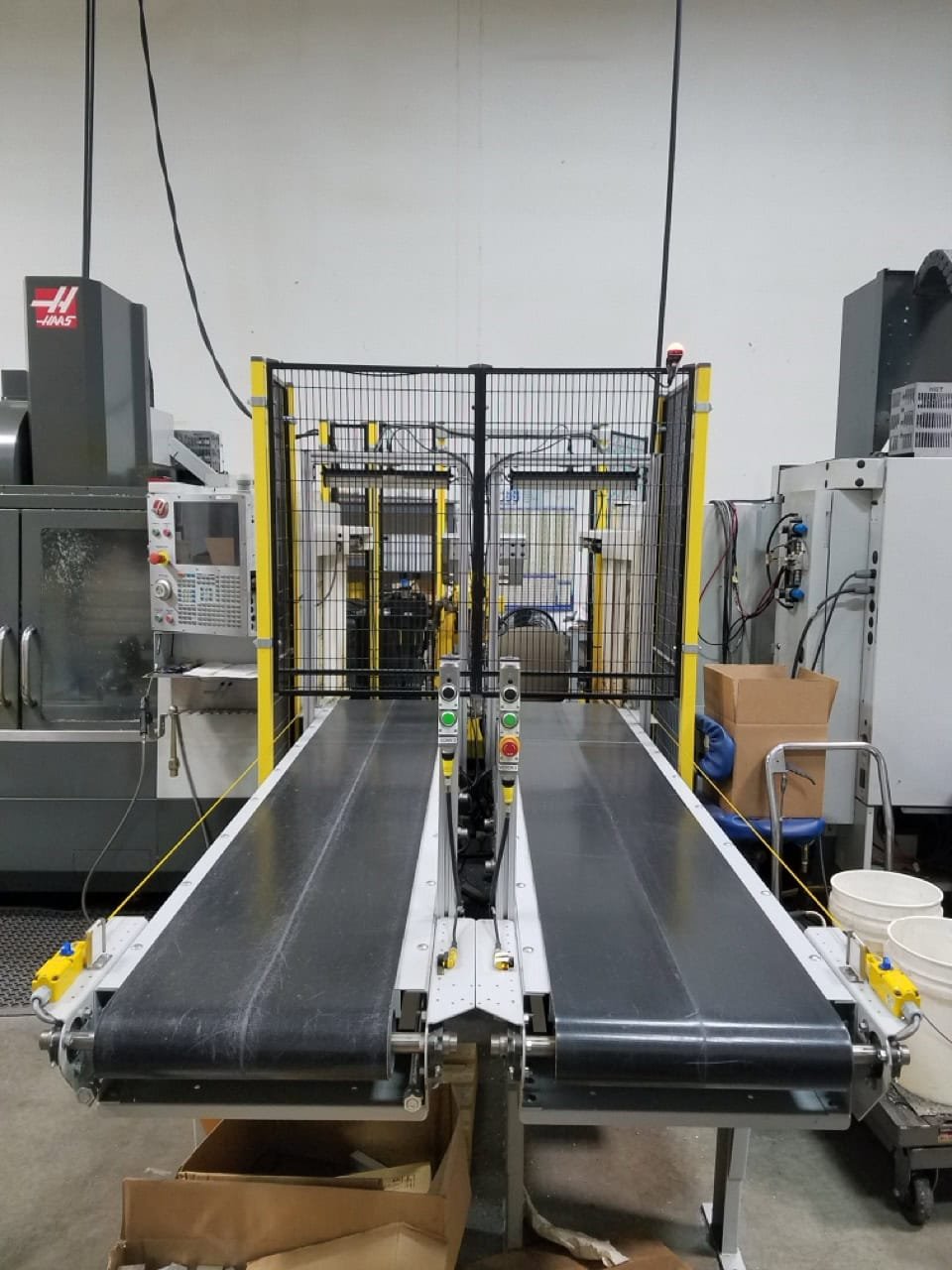

RoboFlex CS (Conveyor System)
1.5’ Wide 8.5’ Long 40” High Slider Bed Conveyor
Center Drive Unit
Center Tracking Rib On Belt
2HP Inverter Duty Rated Drive Motor And Gearbox
60 FPM Single Belt Speed
E-Stop Tether Operated Safety Disconnect Switch
Photo Electric Eye At End To Stop Part Loading When Full

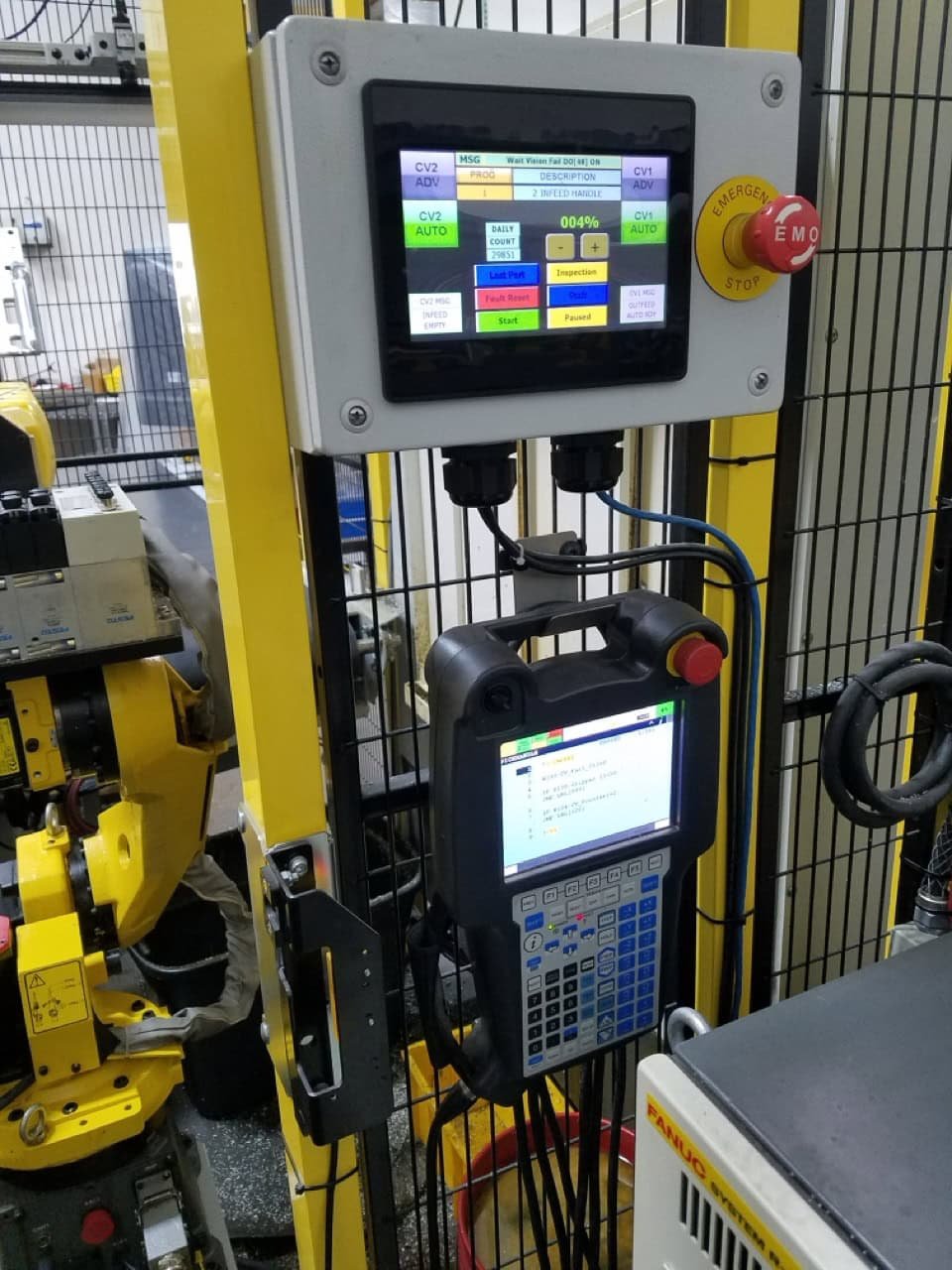

Manual, Auto And Jog Conveyor Control Buttons
Additional Cell Details Upon Request
