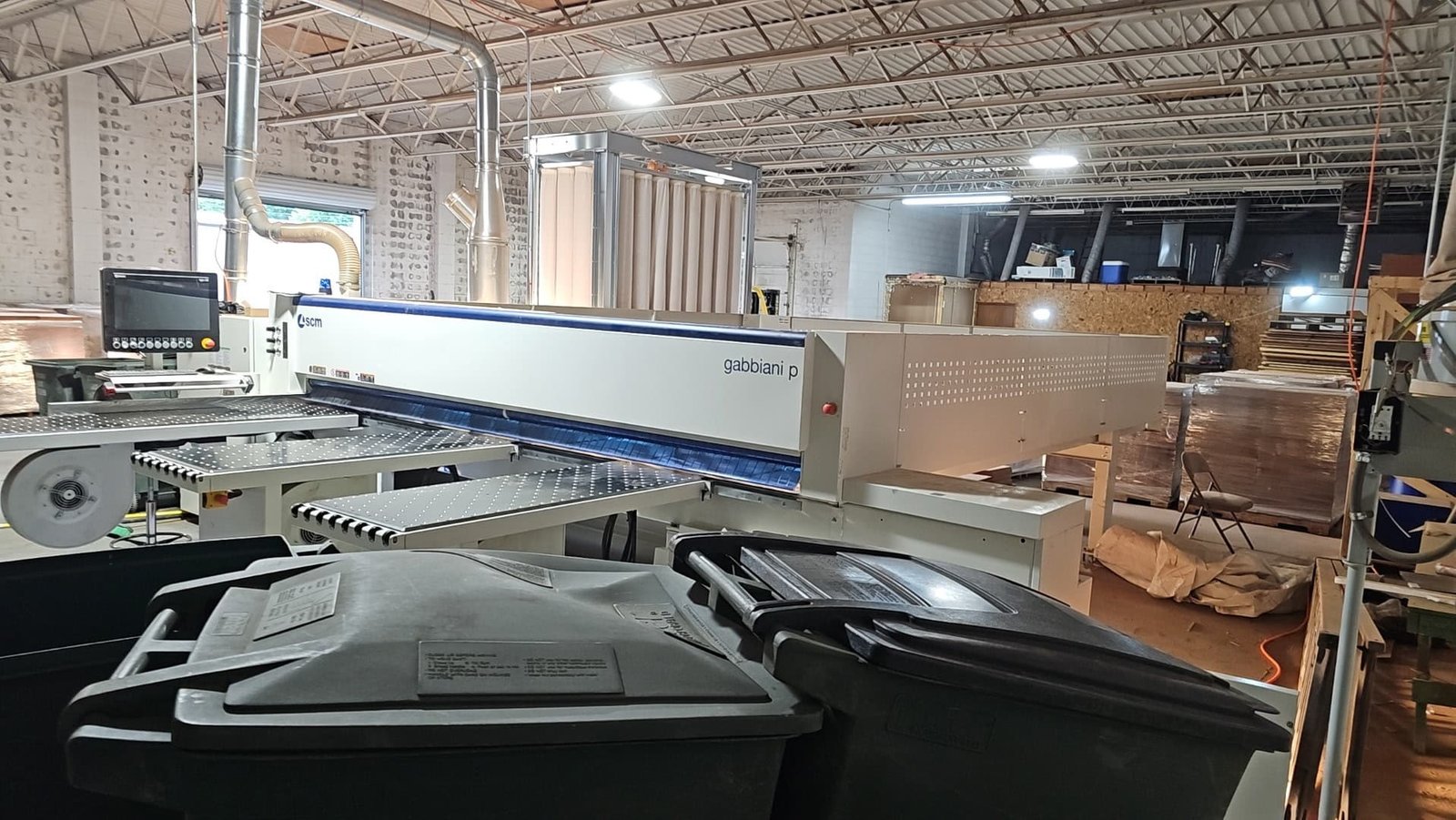

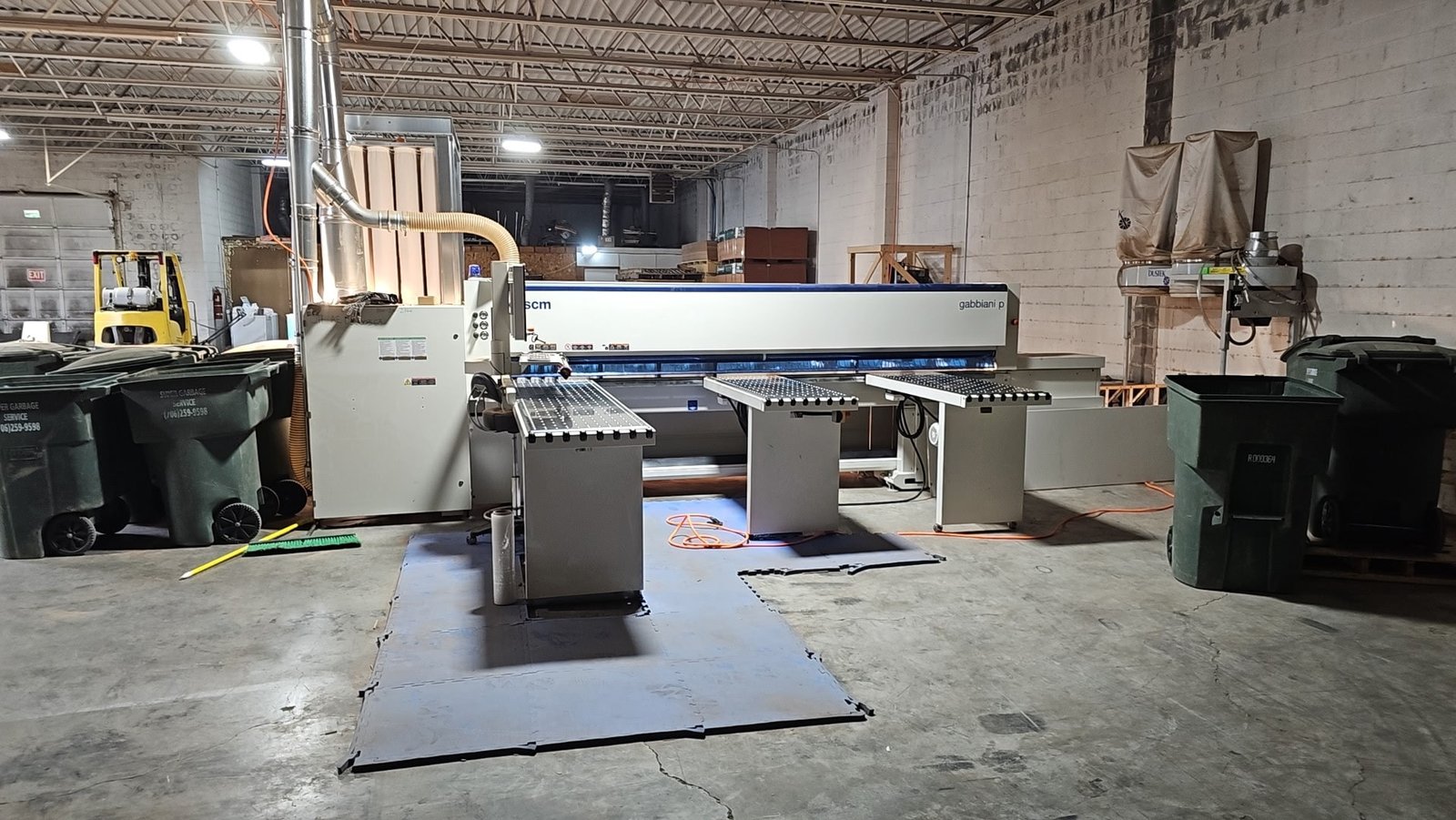

Description
Blade Projection: 70 mm
Cutting Lengths Available: 3,300 mm, 3,800 mm, and 4,300 mm
Saw Carriage Speed: 6–60 m/min
Approx. Pusher Feed Speed (for cross cutting): 60 m/min
Main Blade Motor: 7.5 kW
Scoring Blade Motor: 1.3–1.5 kW for scoring unit
Main Blade Rotation Speed: 4,650 RPM; scorer blade 5,850 RPM
Standard 5 panel clamps, pneumatic aligner for cross cuts
Air-cushion loading tables with independent motors and floating grippers for smooth, consistent panel flow
Equipped With:

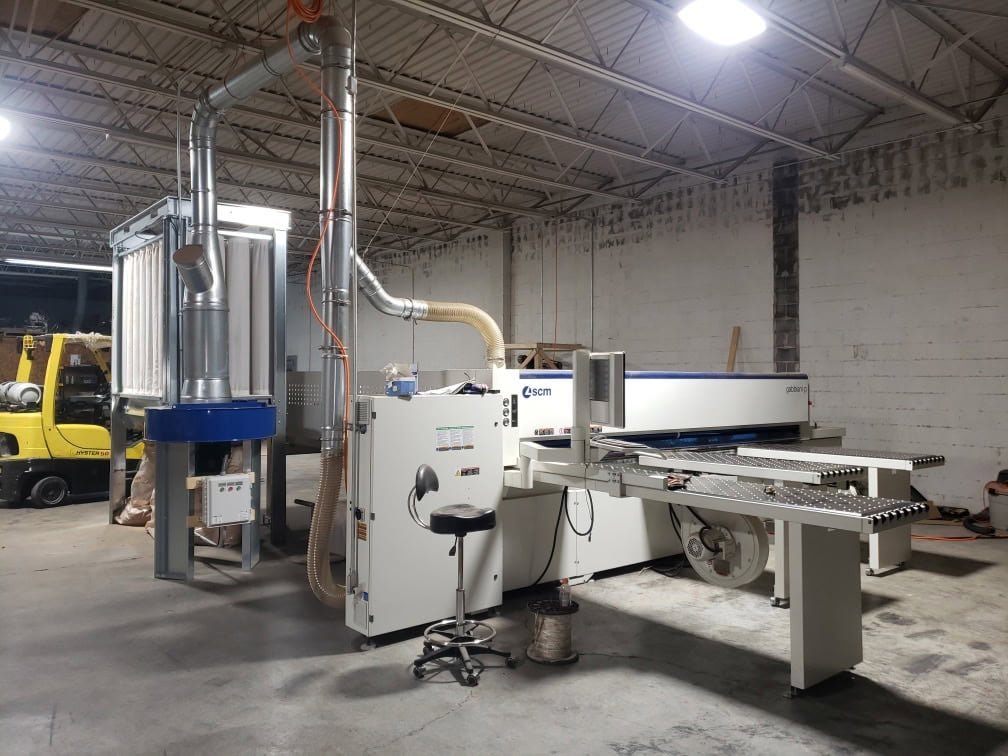

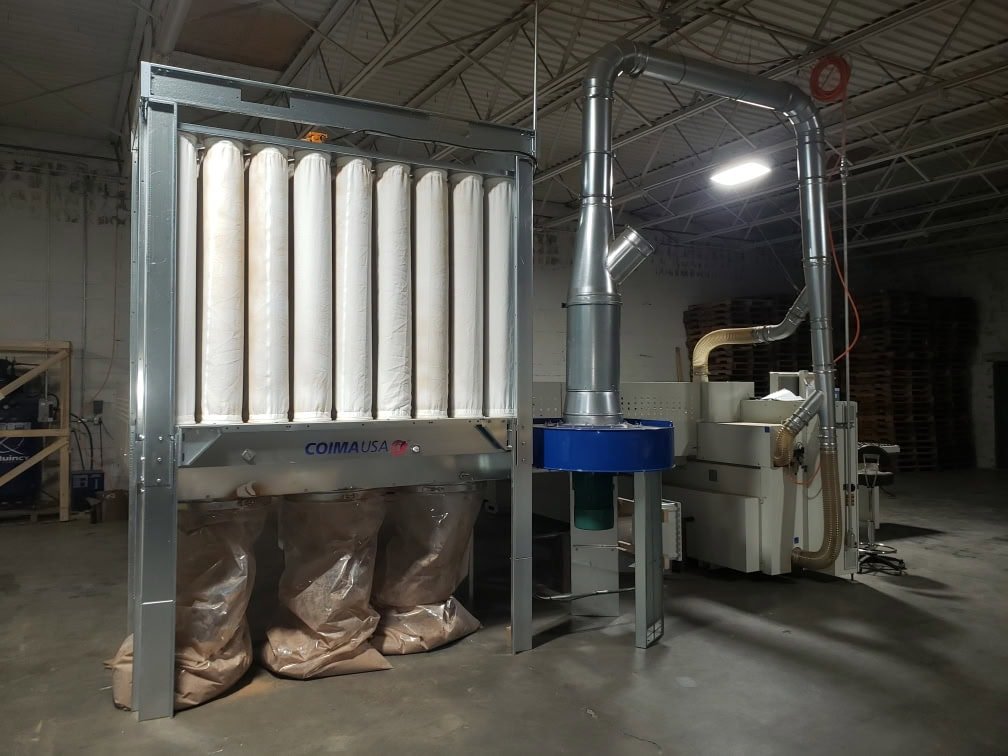

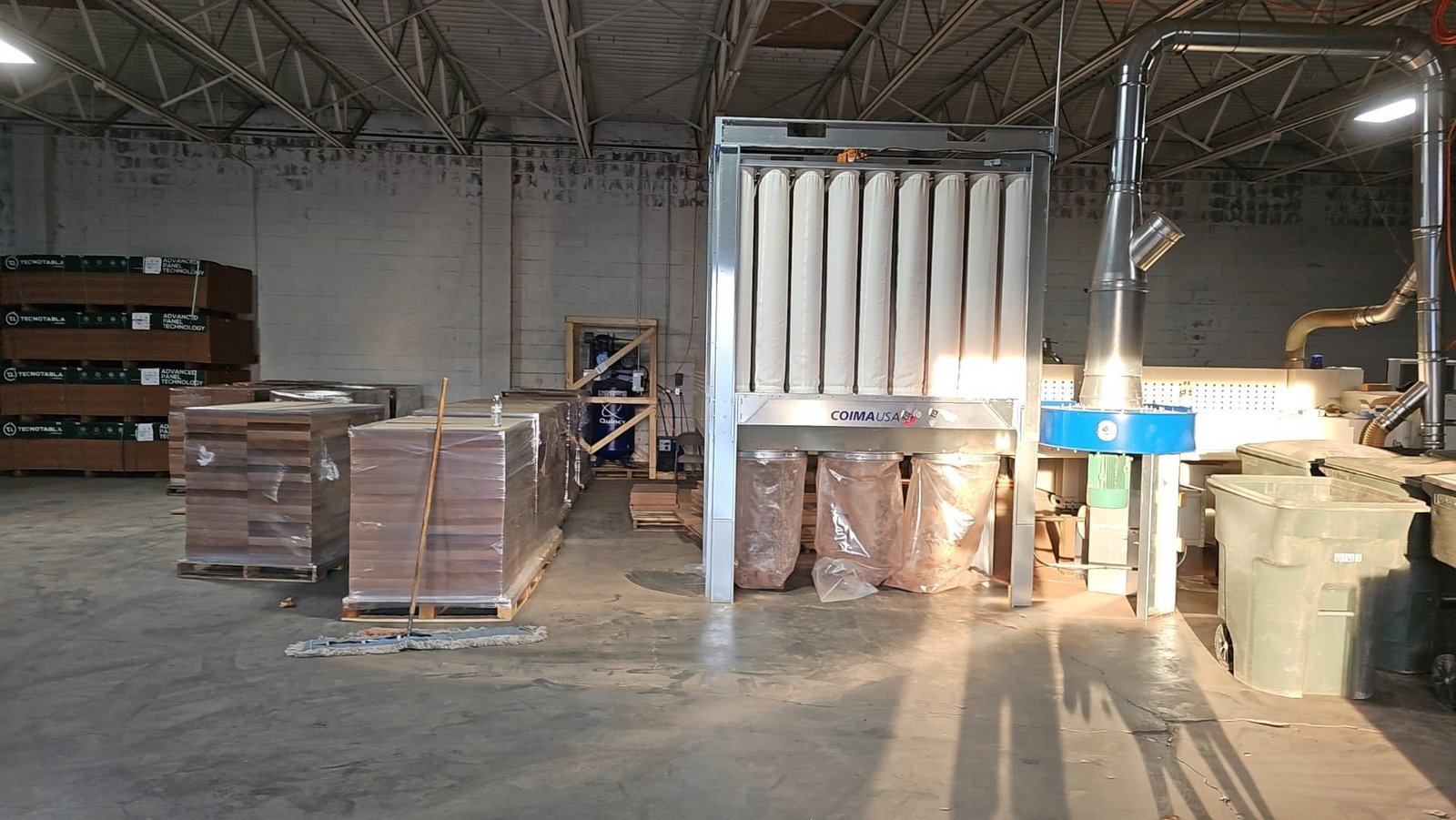

Dust Collector
Extra Blades, Bags and Other Accessories
