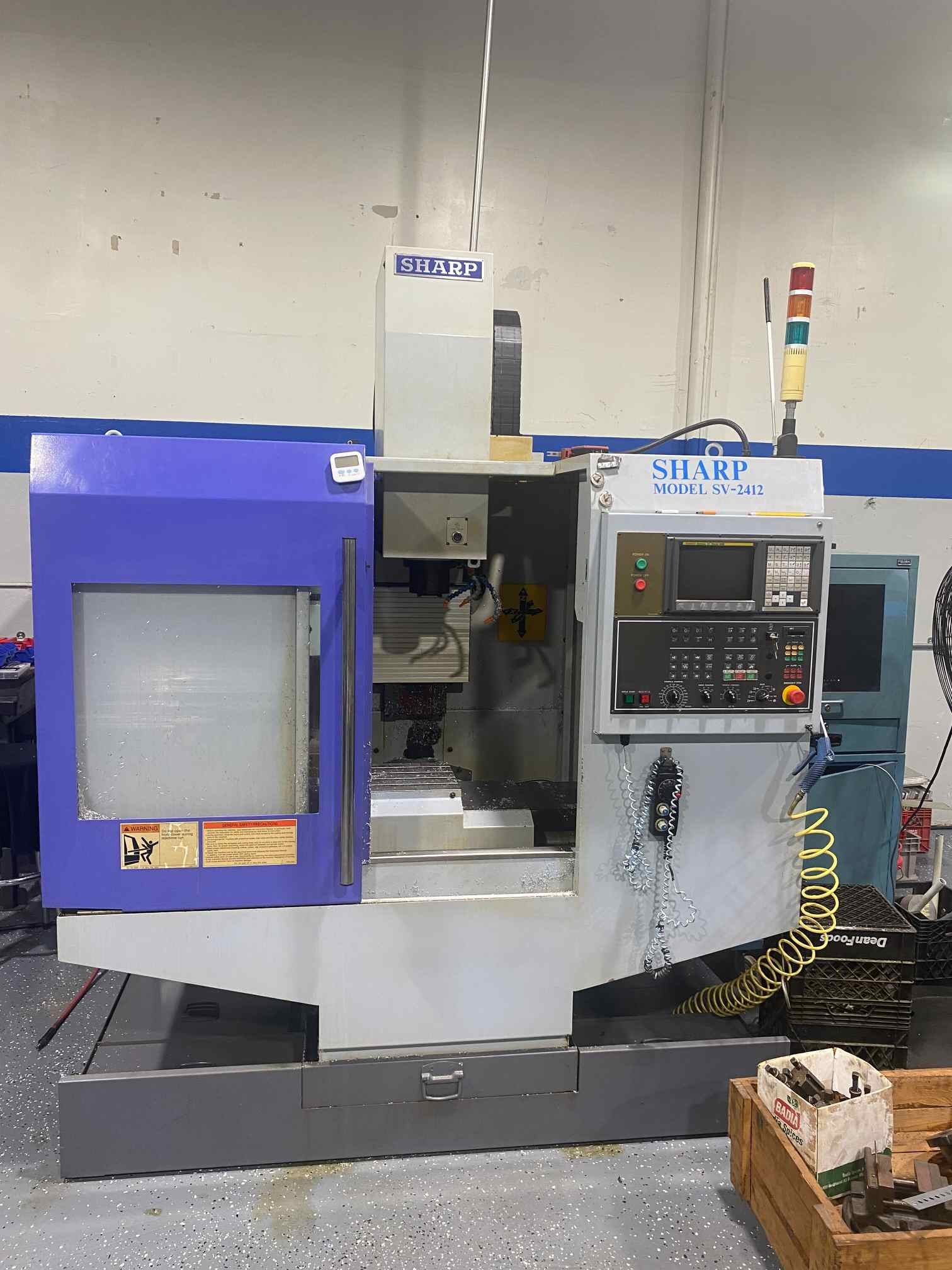

Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately

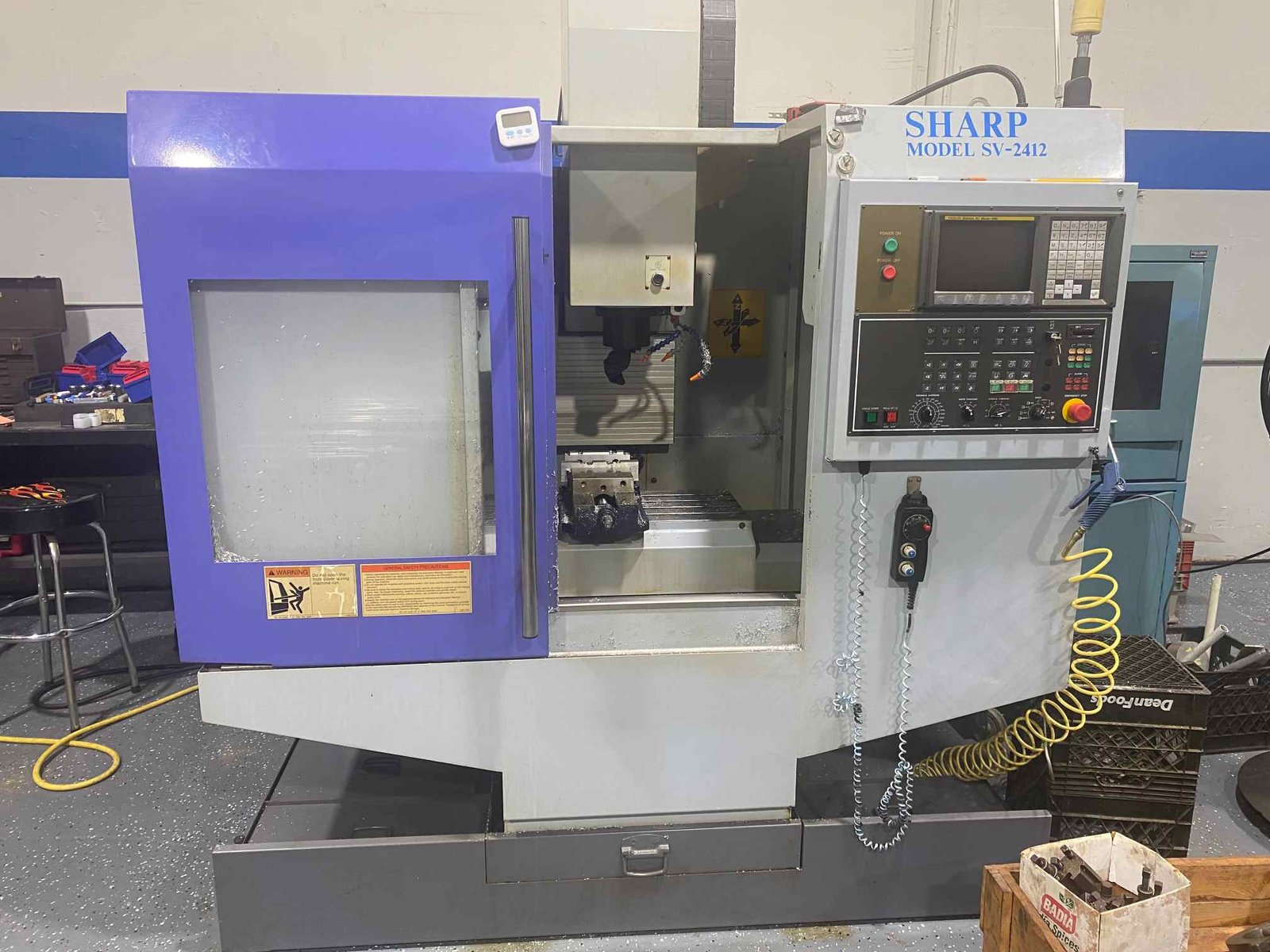

Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately - Image 2

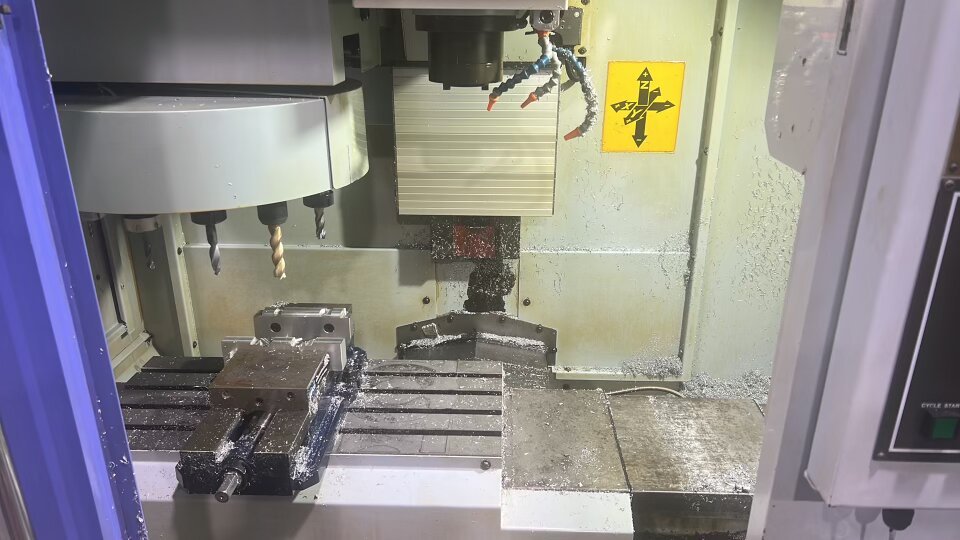

Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately - Image 3

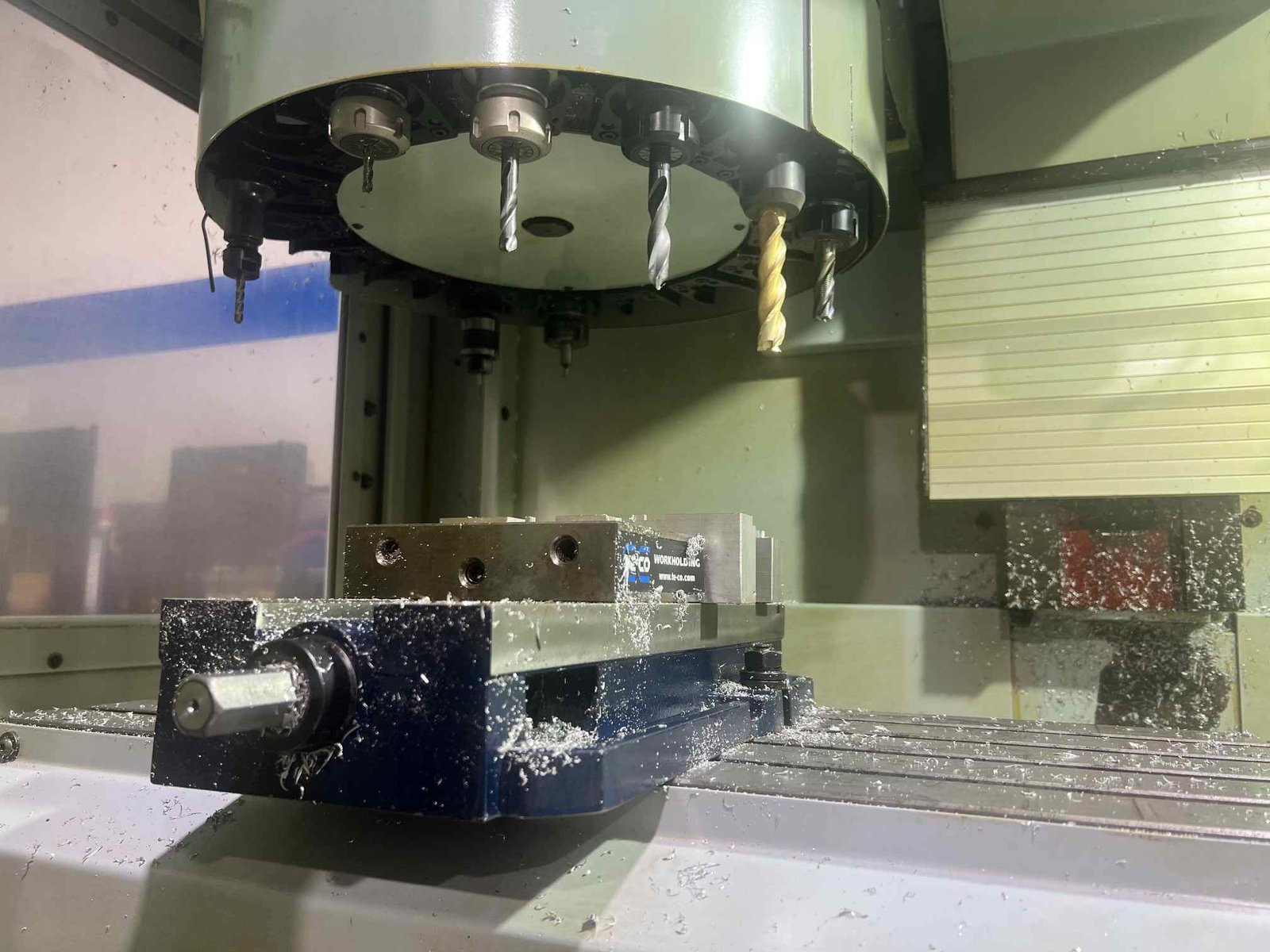

Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately - Image 4

Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately

Name: Sharp SV-2412S VMC, 2004 – Fanuc Control, Available Immediately
SKU: 16374945963
Availability: InStock

€ 19.990,00

X-Axis Travel: 24″ Y-Axis Travel 12″ Z-Axis Travel 18″ Table Size 27.5″ X 12″ Max. Table Weight 770 Lbs Spindle Nose To Table Top 2.8″ – 20.8″ Spindle Speed: 10,000 RPM Spindle Taper Ct 40 Spindle Motor 7.5 / 10 Hp Tool Changer 10 Station Feed Rate: 630 Ipm Rapid Traverse Rate 1,181 Ipm Machine […]

SKU: 16374945963

Category: Vertical Machining Centers

Description

Description

X-Axis Travel: 24″
Y-Axis Travel 12″
Z-Axis Travel 18″
Table Size 27.5″ X 12″
Max. Table Weight 770 Lbs
Spindle Nose To Table Top 2.8″ – 20.8″
Spindle Speed: 10,000 RPM
Spindle Taper Ct 40
Spindle Motor 7.5 / 10 Hp
Tool Changer 10 Station
Feed Rate: 630 Ipm
Rapid Traverse Rate 1,181 Ipm
Machine Dimensions 72.8″ X 71.8″ X 94.4″ High
Machine Weight: 6,000 Lbs.

Equipped With:

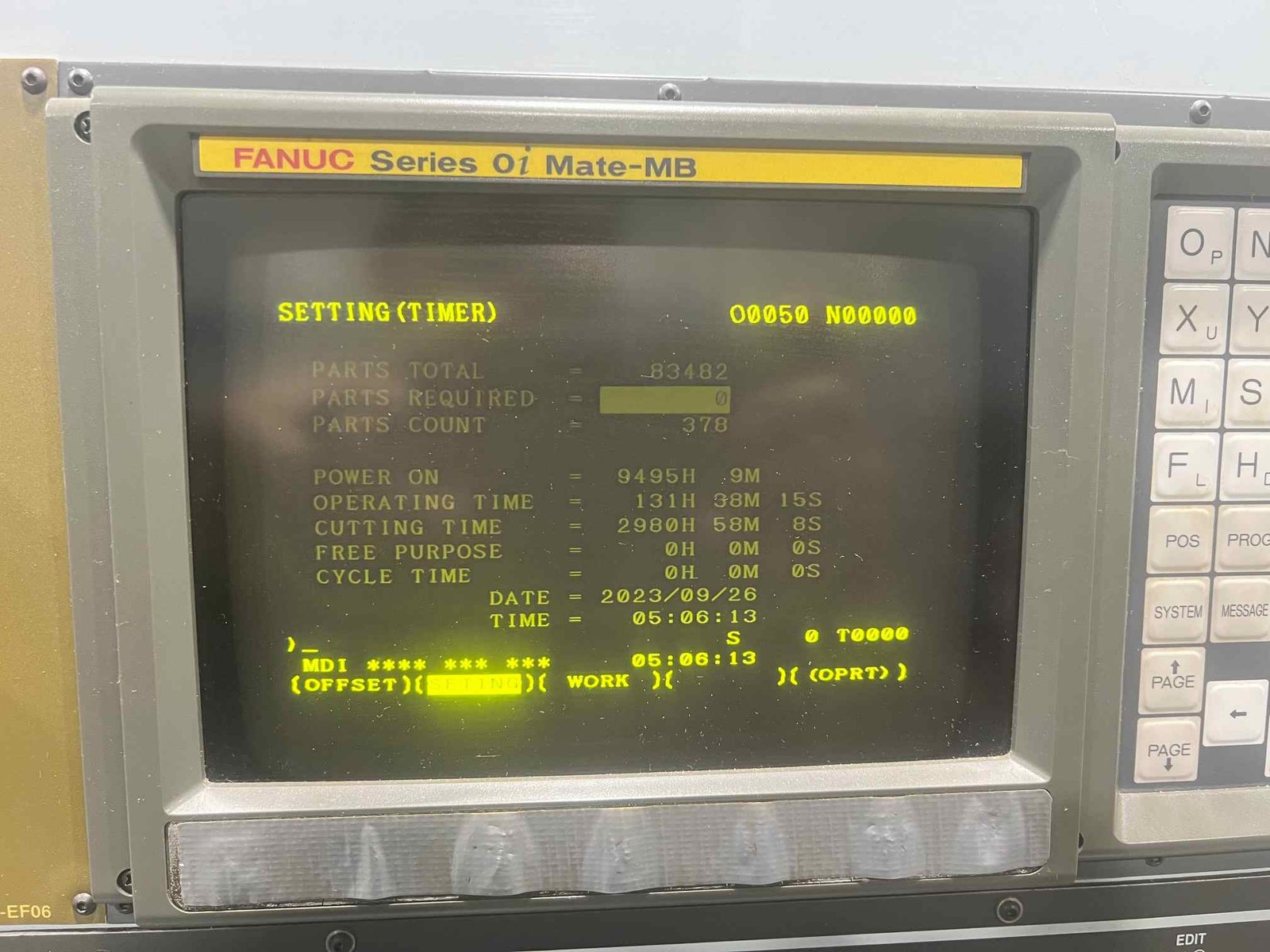

Fanuc 0i-Mb Cnc Control
