Description
Machine Overview

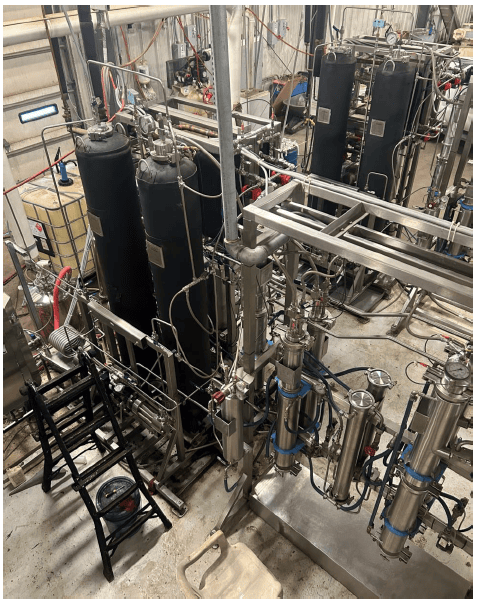

Turnkey Vitalis R-200-H extraction platform with all required thermal, hydraulic, and electrical components included
Designed for continuous CO₂ botanical extraction up to 5,000 psi

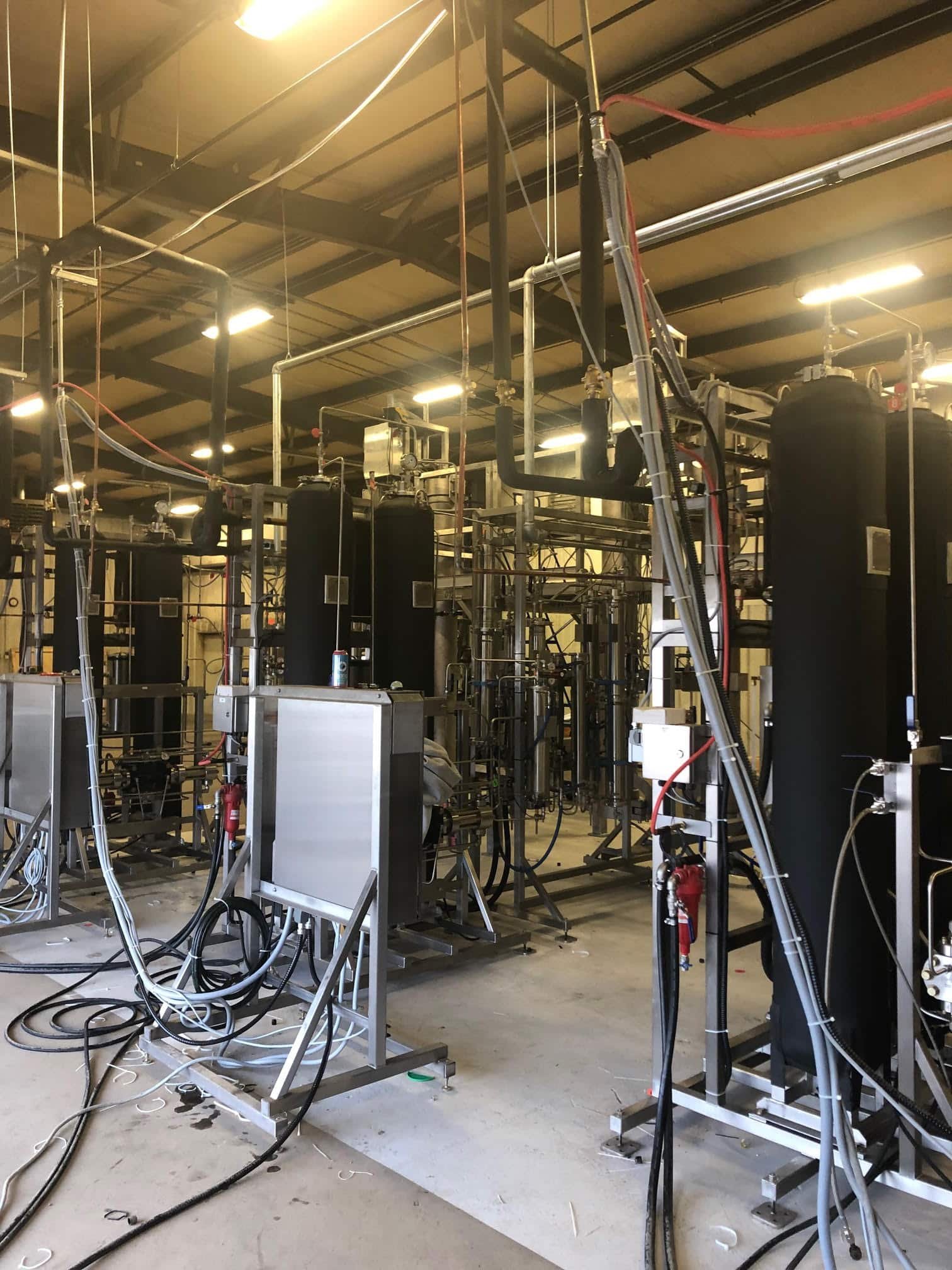

Modular layout for optimized facility integration
All skids pre-plumbed and pre-wired
Certification-ready (ASME, CRN, UL, CSA)
No visible corrosion or structural damage from images; condition assumed fair-to-good pending inspection
System Specs and Features
-Extraction System (Vitalis R-200-H)
-Supercritical CO₂ extraction
-Flow Rate: 200 L/hr
-Max Pressure: 5,000 psi

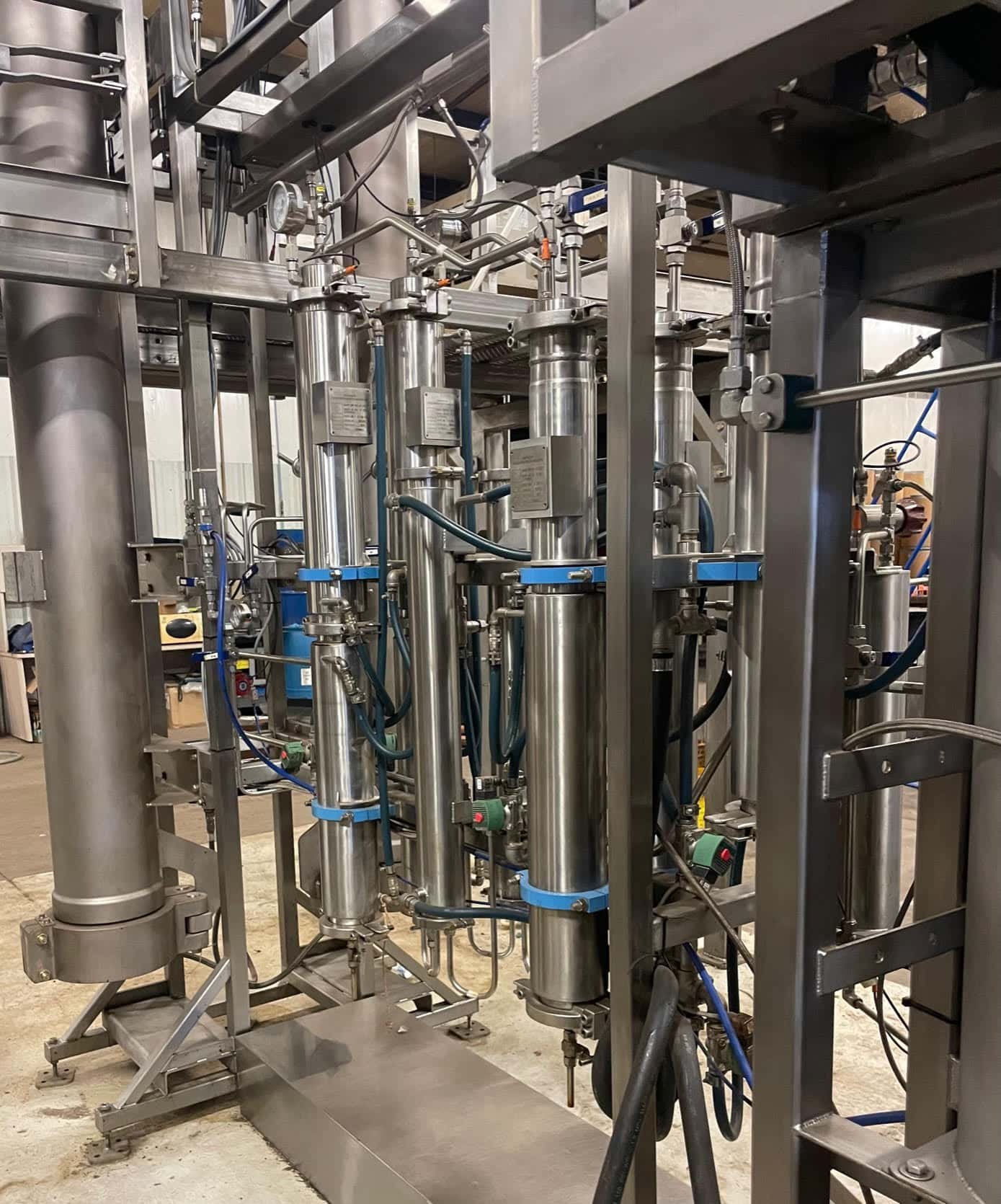

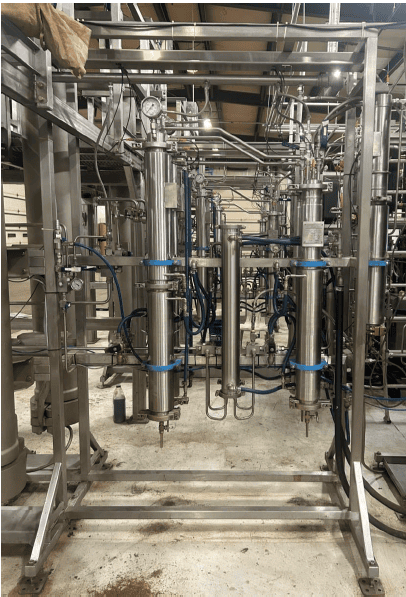

-Vessels: 3x 20L separator vessels
-Control: Touchscreen HMI, live batch tracking
-Frame: 304/316 SS construction
-CO₂ Pump: Dual pneumatically driven
-Heating: 250,000 BTU/hr NG (Navien)
-Certifications: ASME, CSA, CRN, UL
-Refrigeration (Vitalis Unit, 3HP)
-Temperature Range: -20°C to +15°C
-Compressor: Hermetic scroll, air-cooled
-Power: 460V, 60Hz, 3-phase

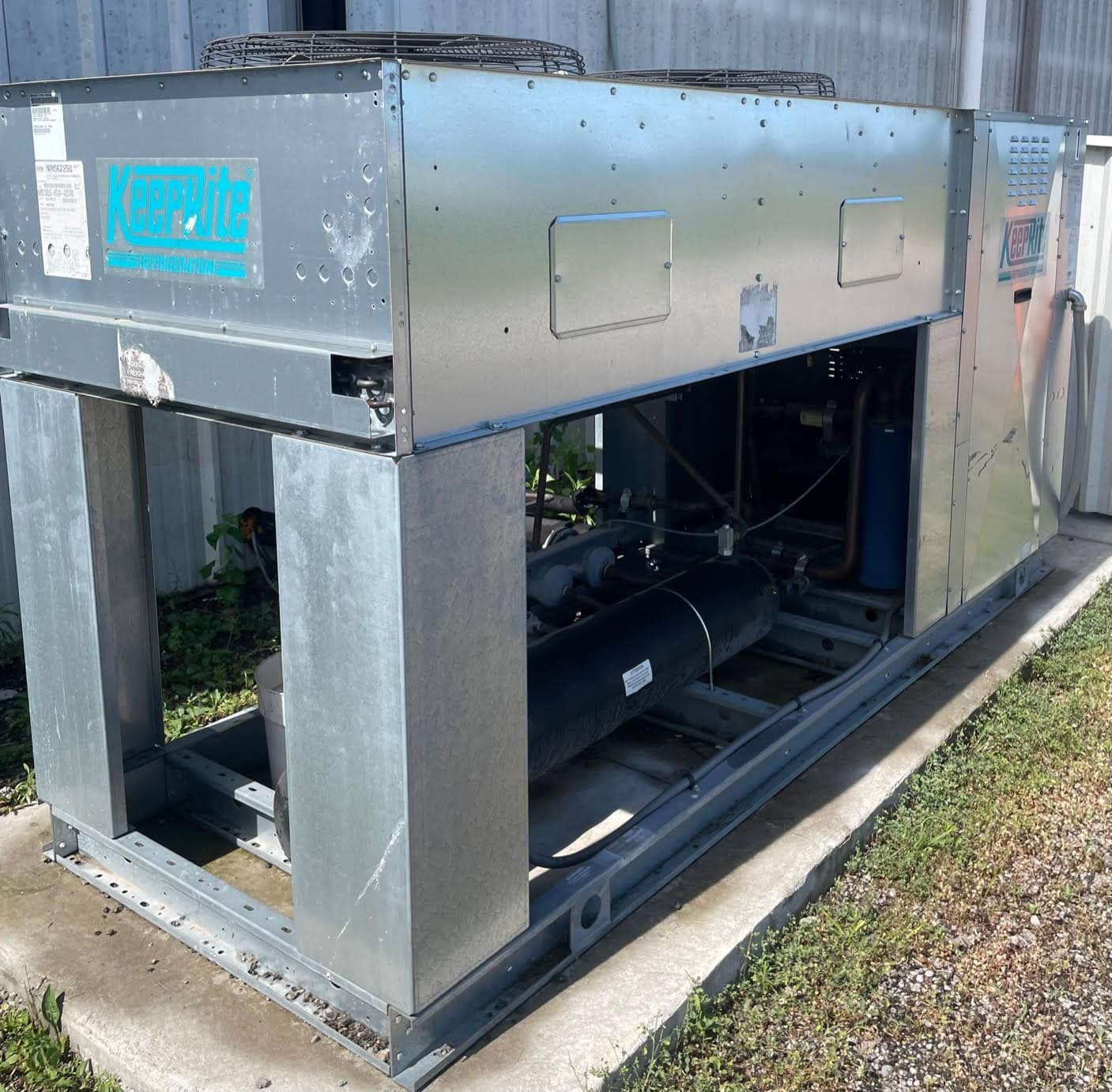

Condensing Unit (KeepRite KVS030L6-HT4B-A2CM24)
-Voltage: 460V, 3-phase
-Compressor: 47.8 RLA / 235 LRA
-Fan Motors: Dual 3.1A, single 0.44A
-Refrigerant: R404A / R507
-PSIG: 450 (high) / 300 (low)
Hydraulics

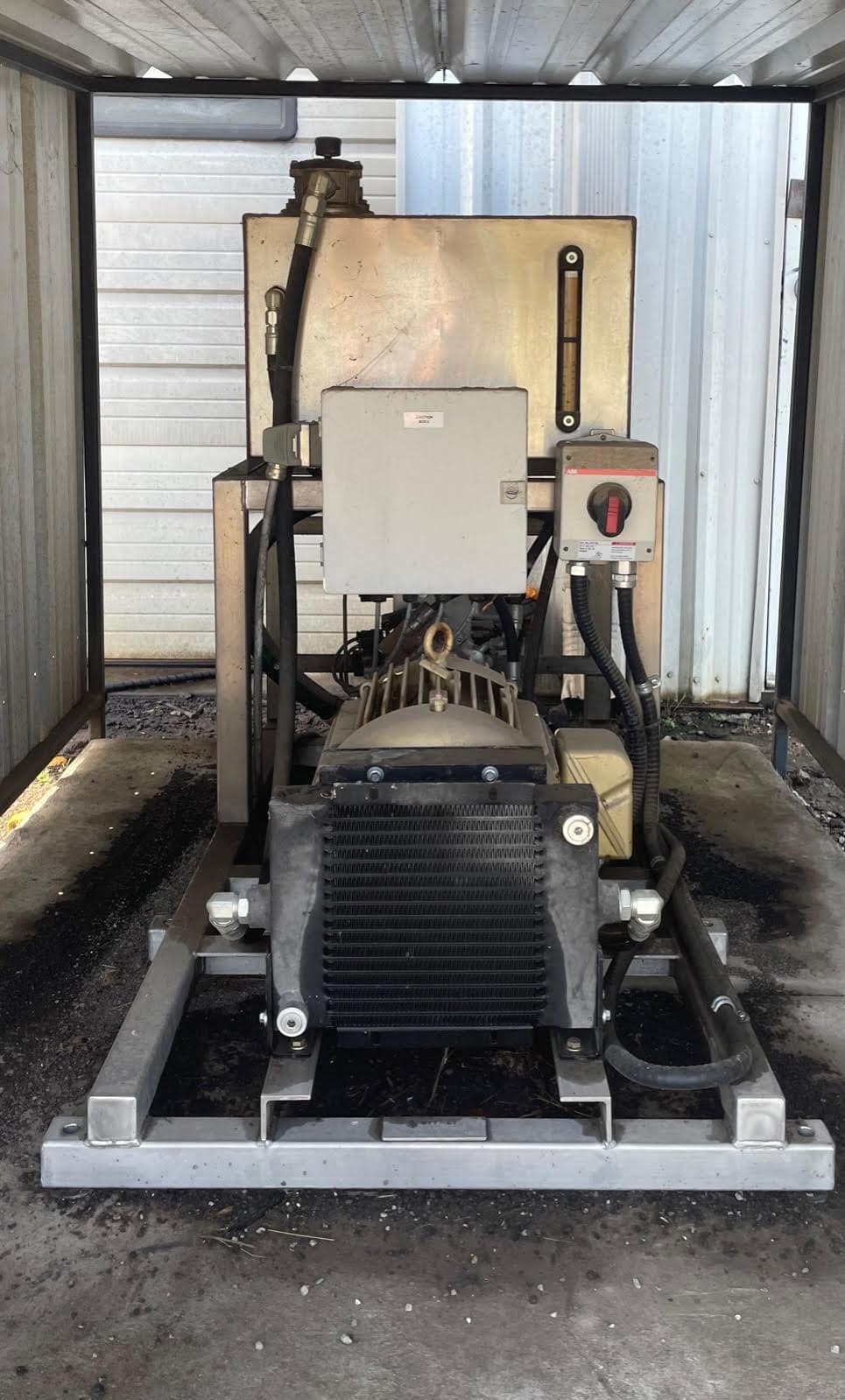

-Hydraulic Power Unit: Skid-mounted
-Estimated 10–15 HP drive support
-Controls integrated with HMI
-Water Heating System
-Navien NPE-240S, 250,000 BTU/hr
-Natural gas fired, tankless
-Integrated with circulation and jacket heating
