Description

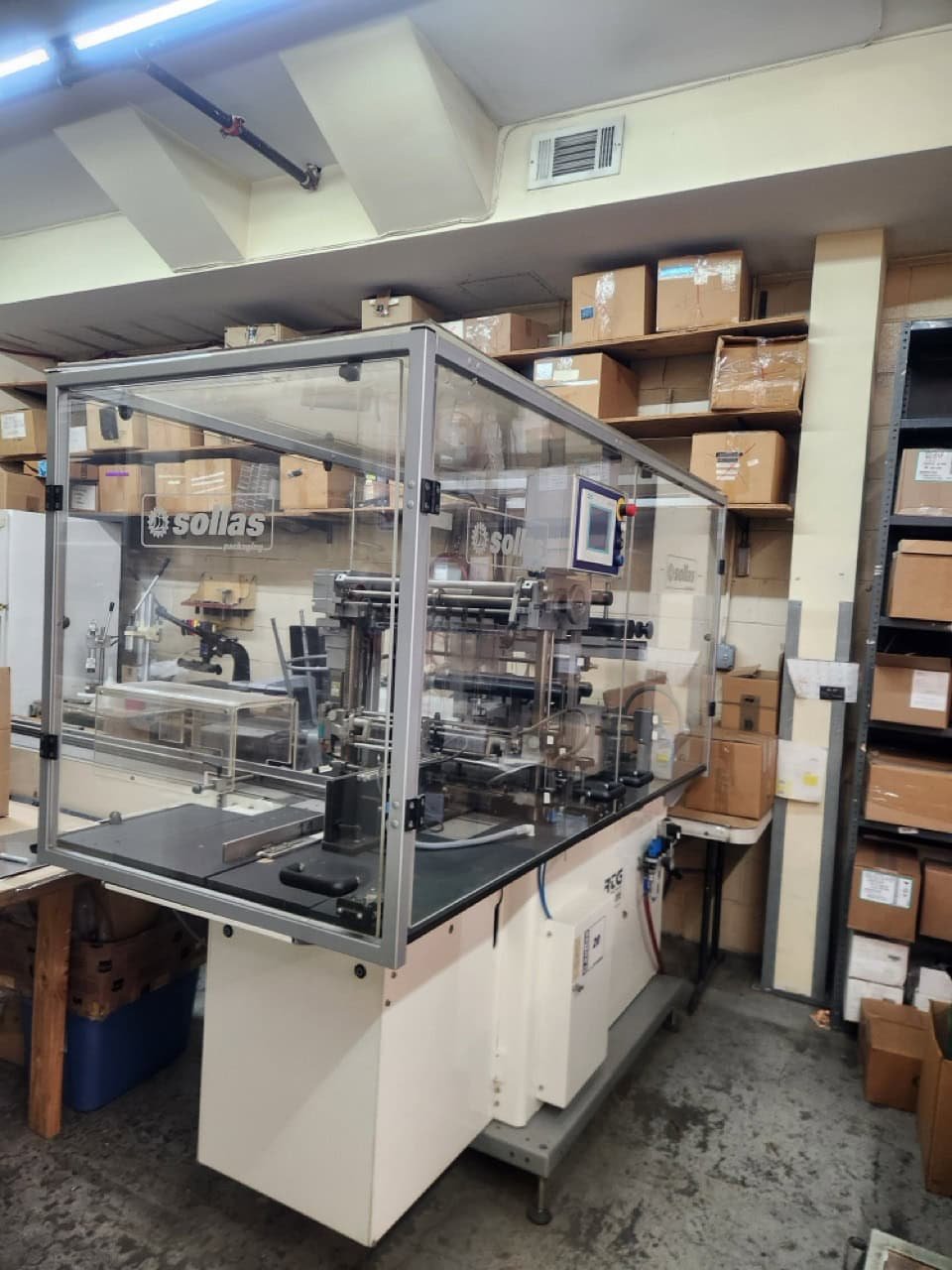

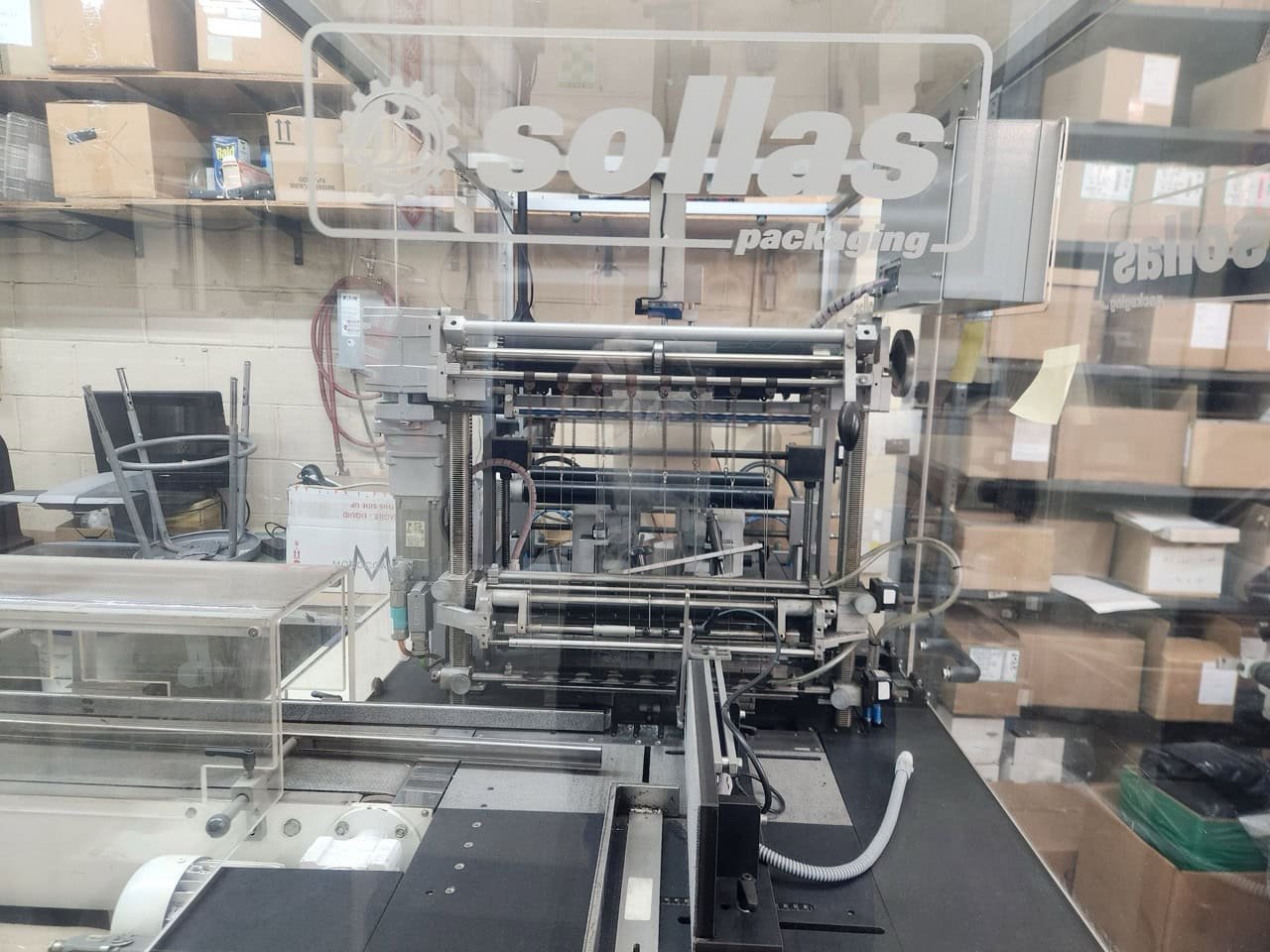

Sollas 20 Right Angled Overwrapping Machine, 2012:
Built to wrap the following size range of cartons:
– Length: minimum 45mm, maximum 300mm
– Width: minimum 40mm, maximum 200mm
– Height: minimum 16mm, maximum 96mm
– Infeed direction of the machine: left hand (90 degree)
– Machine Production Capability: Maximum up to 50 cycles per minute. Machine speed is dependent upon the size of the carton weight of the carton, condition of the carton and local conditions.
– Film Information: Heat sealable polypropylene.
– 230V, 50/60Hz, 3PH
– 6 bar air consumption
Features:
– PLC control with soft touch display
– Frequency controller on main drive system
– One-sided film reel suspension
– Static eliminator
– Film adjustment by means of servo
– Numeric indication in quick-change devices
– Main shaft with type 50 keyed cams
– Universal folding street S20

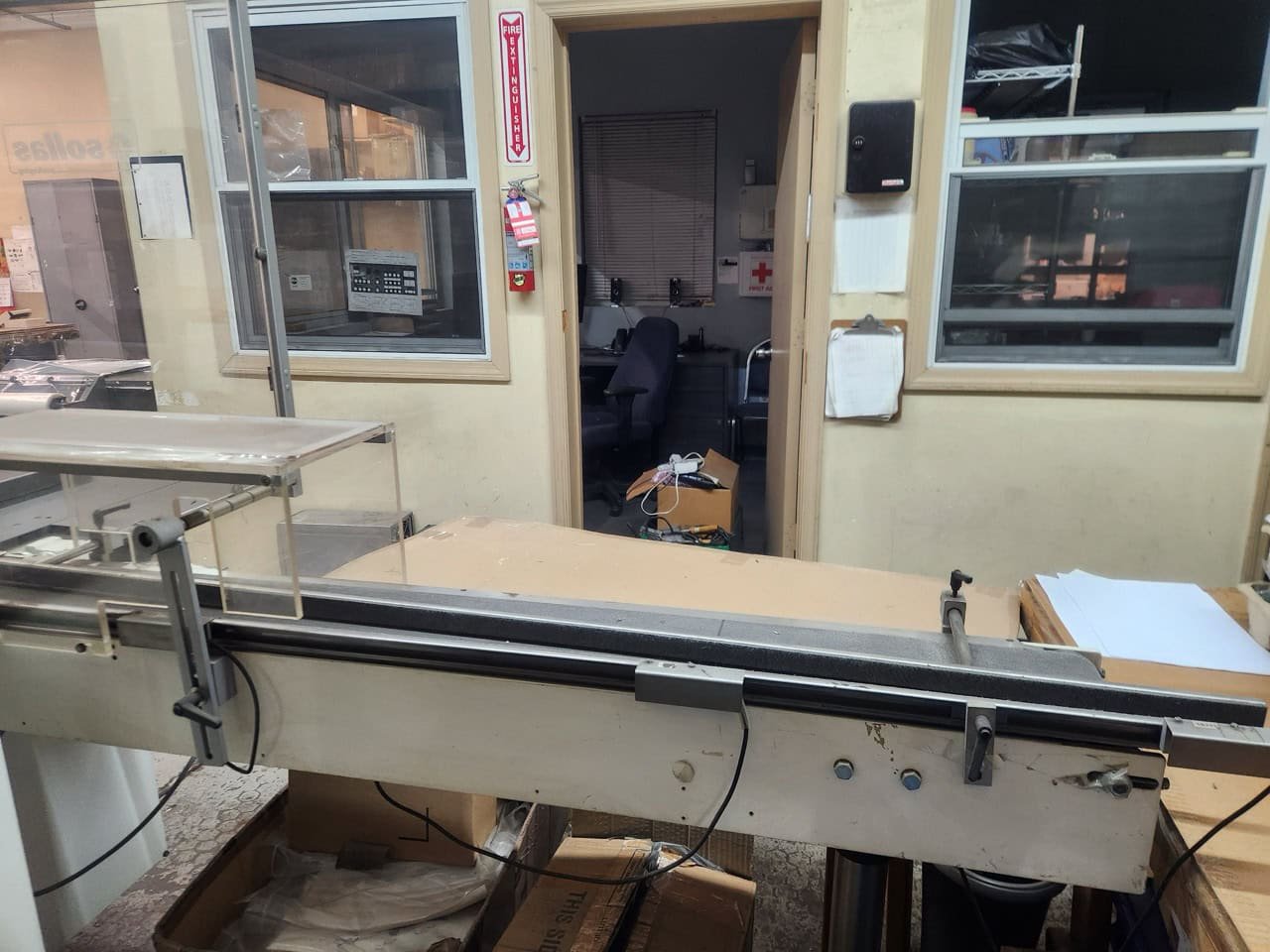

– Conveyor: 1500 x 220 S20 right angles
– Pressure rollers on infeed conveyor
– Safety guards infeed at right angle
– Film slitting device on film reel S20
