Description

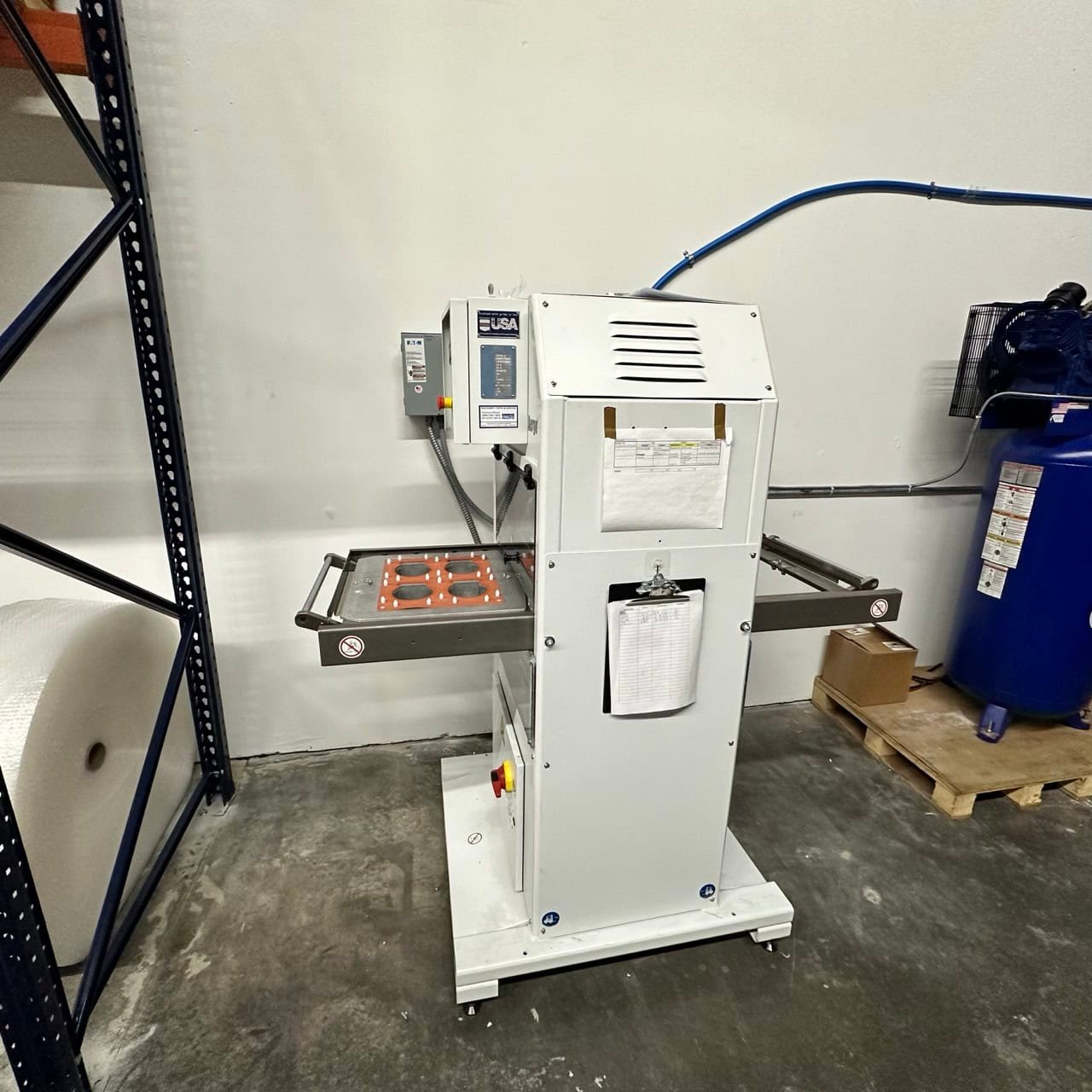

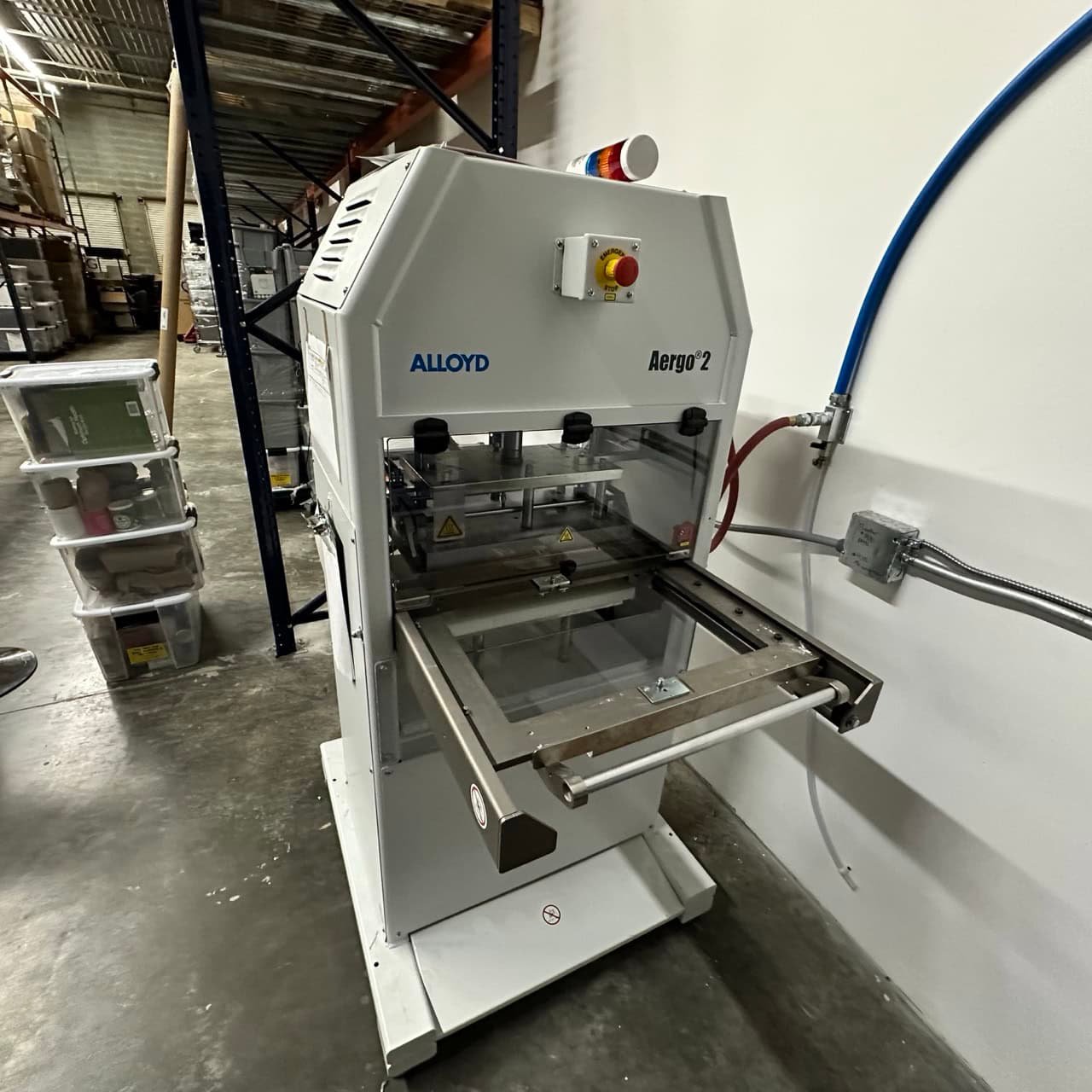

Sonoco Alloyd Aergo 2 Shuttle Blister Sealer:
Operational video available upon request
– Machine type: manual shuttle
– Number of product nesting trays: 2
– Cycle speed: operator paced
– Seal area: 12″ x 18.5″
– Maximum form depth: 8″
Sealing unit
– Heating capacity: 3,900 watts
– Operating temperature range: Ambient-550F
– Air cylinder for press: 1 NFPA compliant
– Bore diameter: 8″
– Maximum total effective seal area (@100 psi) 50 sq. in.
Machine controls:
– Programmable, digital readout LCD display
– Programmable, dual readout LCD display
– Air pressure regulator
– Contact dwell timer
– Temperature controller
– Dual readout gauge (psi/bar)
Electrical requirements: 208/230VAC, 50/60Hz, 1 ph, approx 19 FLA@230VAC
Compressed air:
– Pressure: 100 psig
– Volume: 14 SCFM @ 100 psi @ 8 cpm
Machine dimensions: 61″ L x 34.5″ W x 89″ H
Product load station height: 40″
Machine weight: 1,100 lbs
