Description
Tonnage: 33 tons
Maximum Sheet Size: 80″ x 50″
Maximum Sheet Thickness: 3/8″ (thickness)
Maximum Punch Diameter: 4.5″
Maximum Sheet Weight: 849 lbs.
Hits Per Minute (on 1″ centers): 310
Strokes Per Minute: 550
Nibbling Speed: 543 strokes per minute
Table Travel: 53″ x 82″
Table Speed (X & Y): 3200 inches per minute (IPM)
Throat Depth: 53″

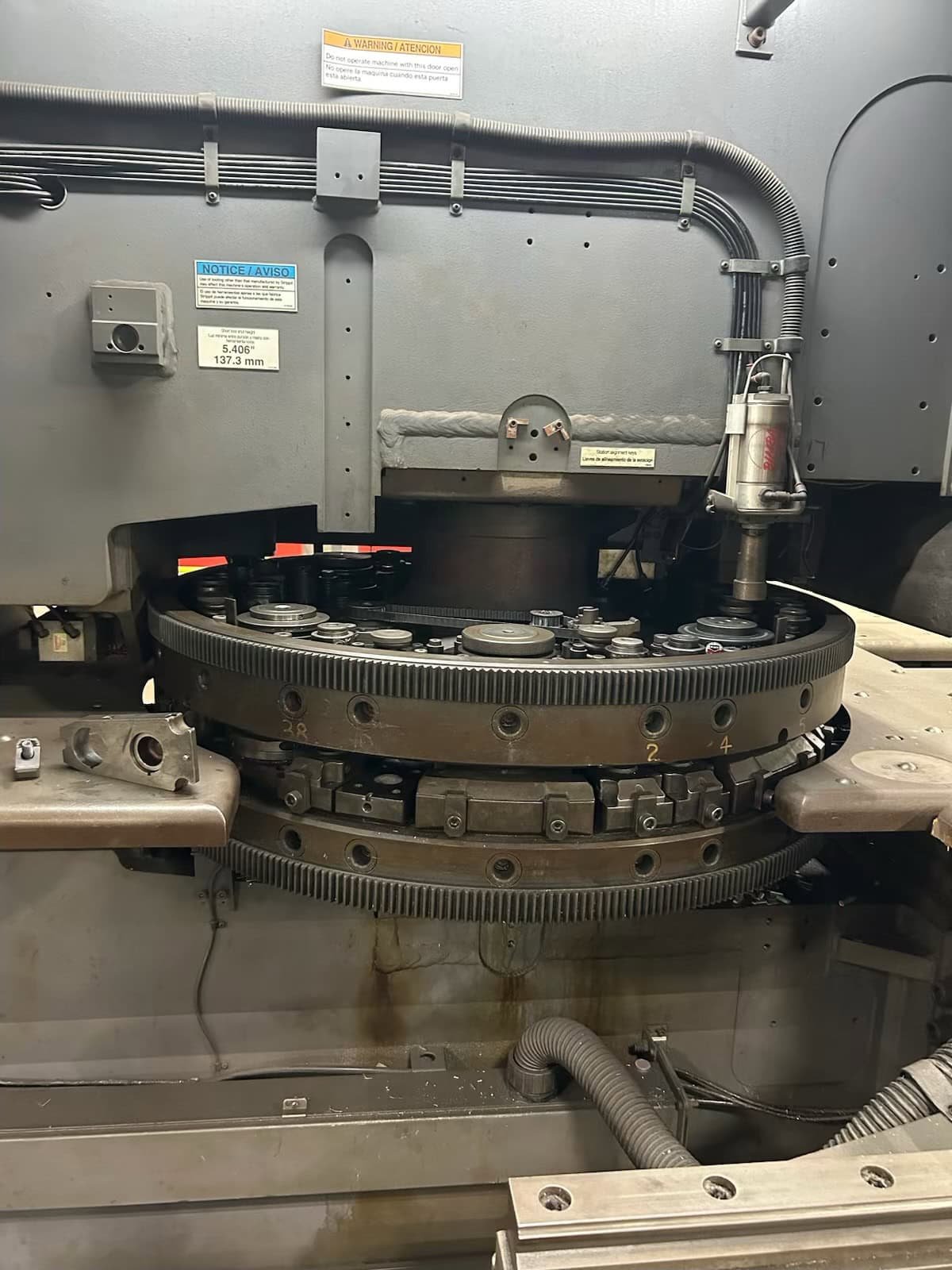

Turret Stations: 42
Turret Speed: 52 revolutions per minute (RPM)
Approximate Floor Space Required: 275″ x 193″
Approximate Weight: 40,000 lbs.

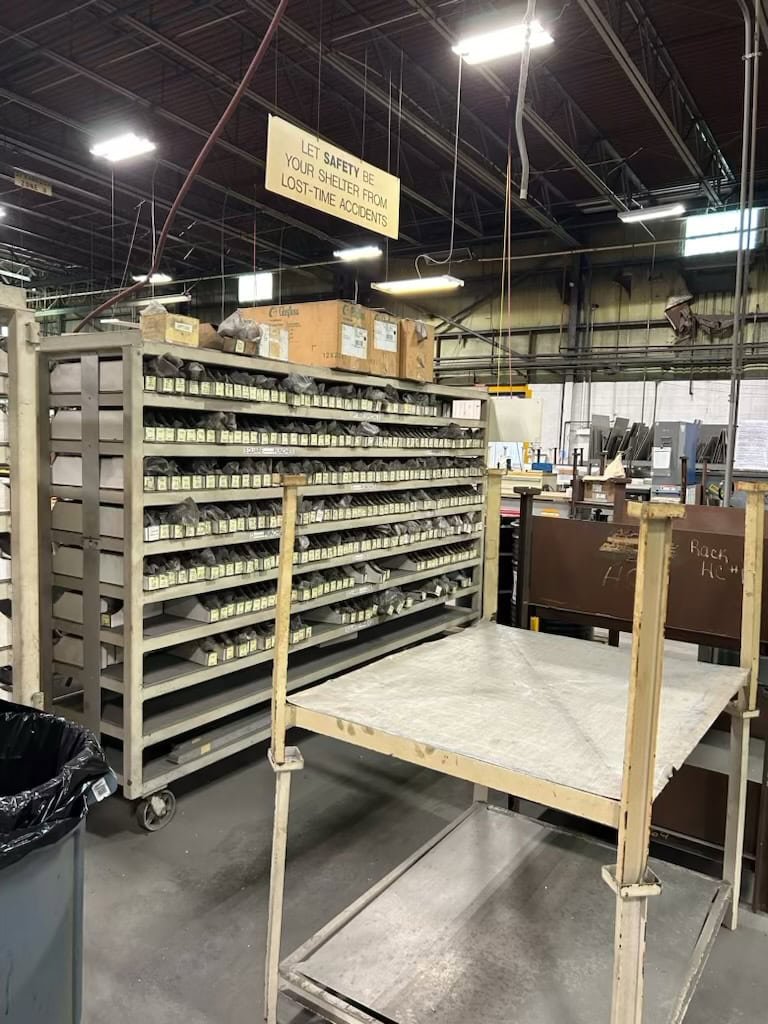

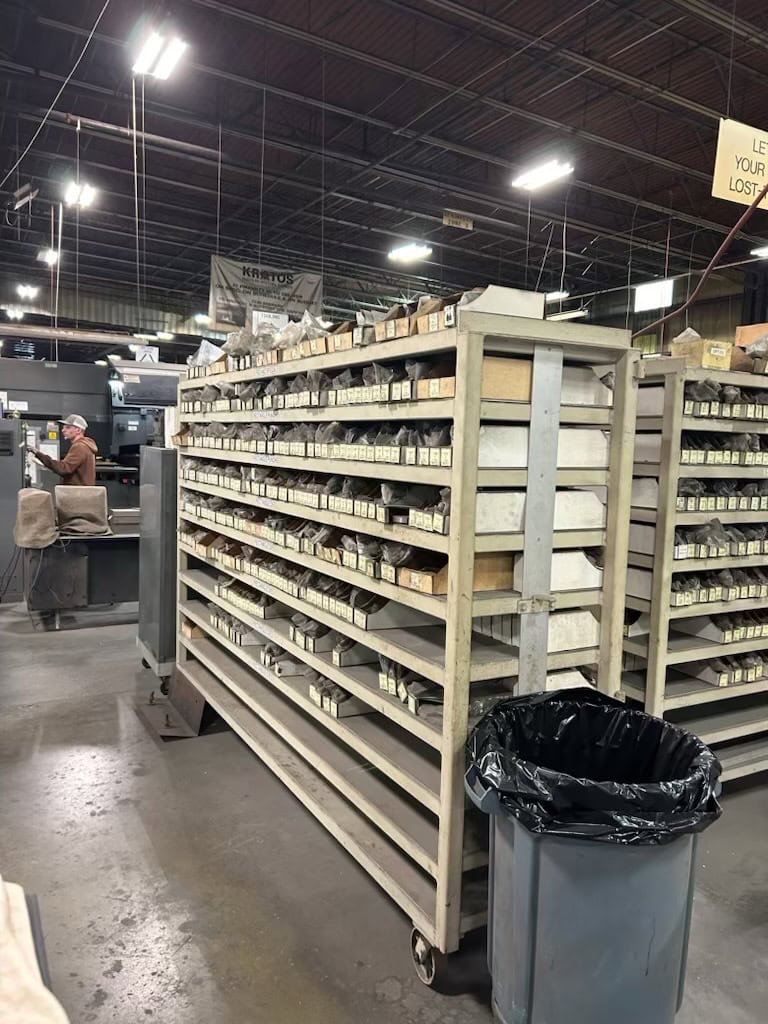

Much Assorted Tooling Included
