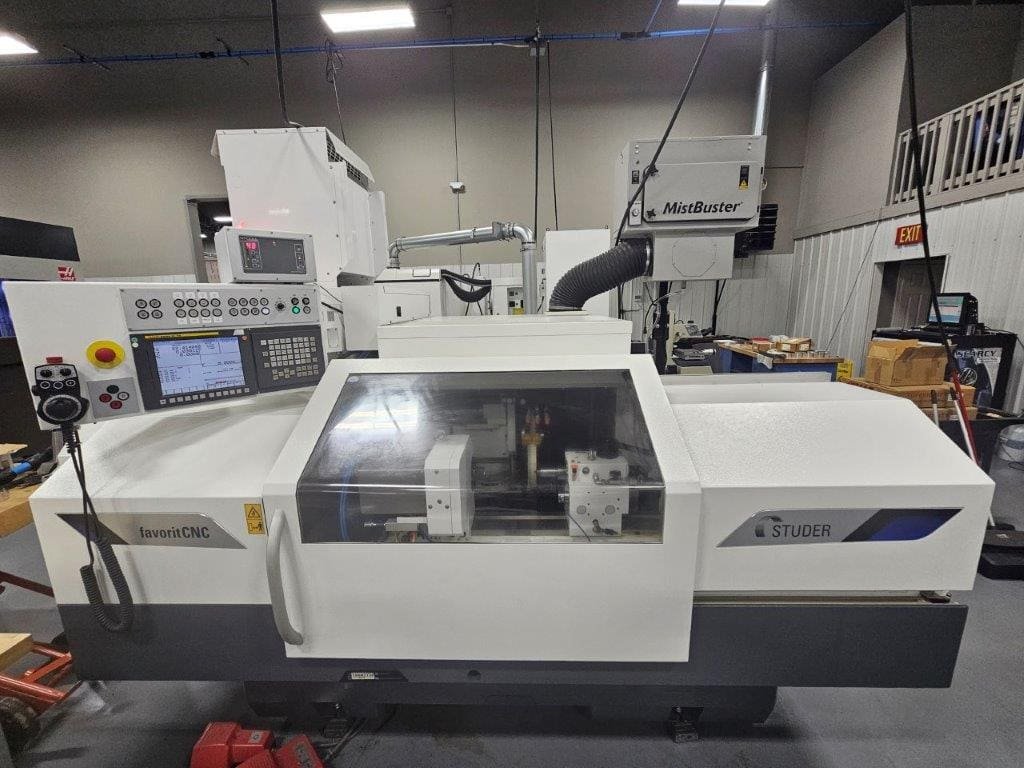

Description
X Axis Travel: 11.2″
Max. Travel Speed X: 394″/min
Z Axis Travel: 31.5″
Max Travel Speed Z: 787″/min
Swiveling Range B: 210 deg
Swiveling Range C: ∞ deg
Max. Spindle Power: 12 hp
Max. Number Of Revolutions: 2’810 rpm

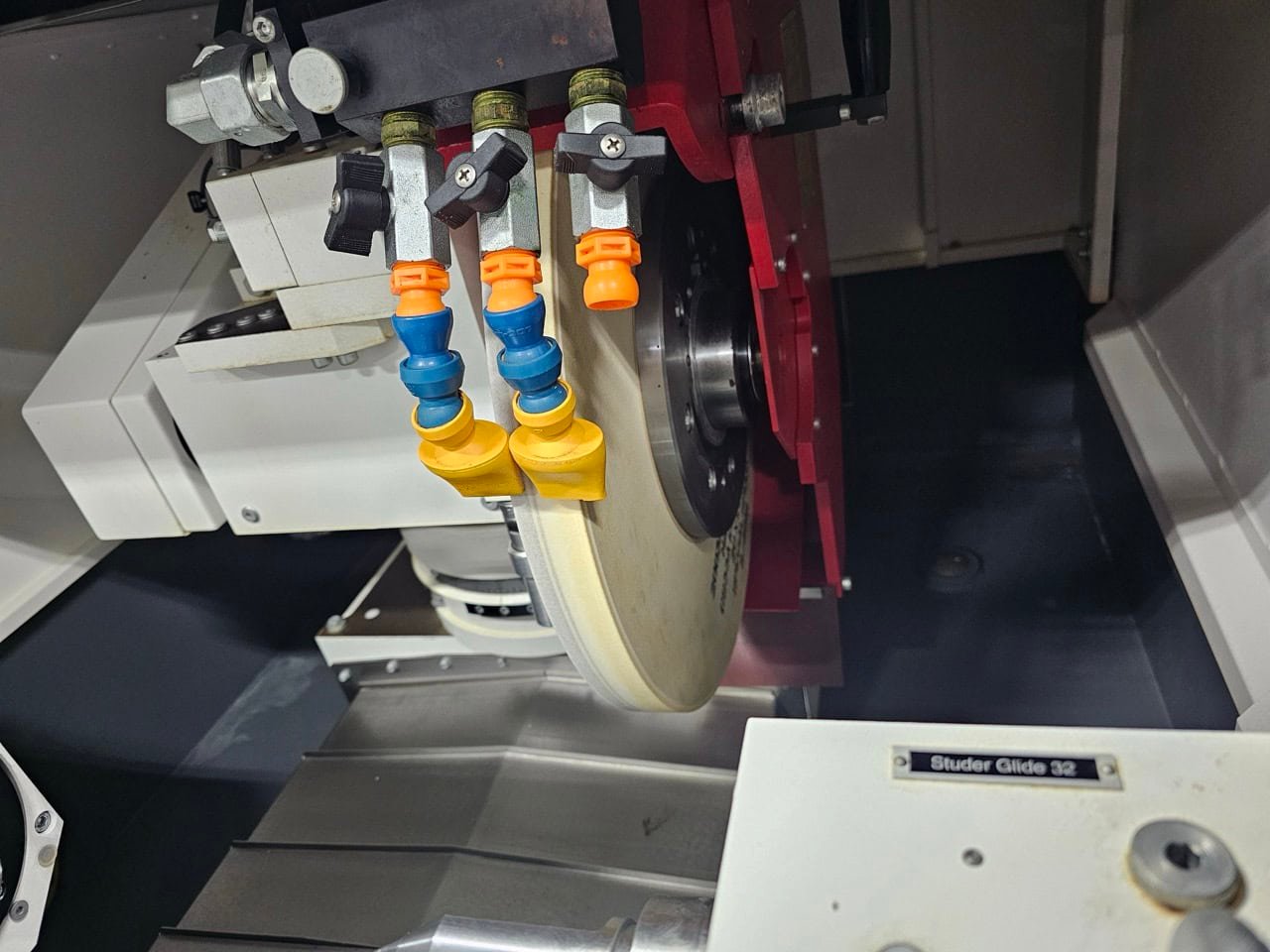

Max. Grinding Wheel Diameter: 20″
Max. Grinding Wheel Width: 3.15″
Workpiece Length: 26.8″
Workpiece Diameter:13.75″
Max. Workpiece Weight: 176 lbs
Distance Between Centers: 25.6″
Center Height: 6.9″
Tailstock:
Taper: MT4
Travel of Barrel: 1.38″
Diameter of Barrel: 1.97″
Approx Dimensions: 10′ x 7′ x 7′
Approx Weight: 11,500 lbs
Equipped With:
Fanuc Oi-TD Control

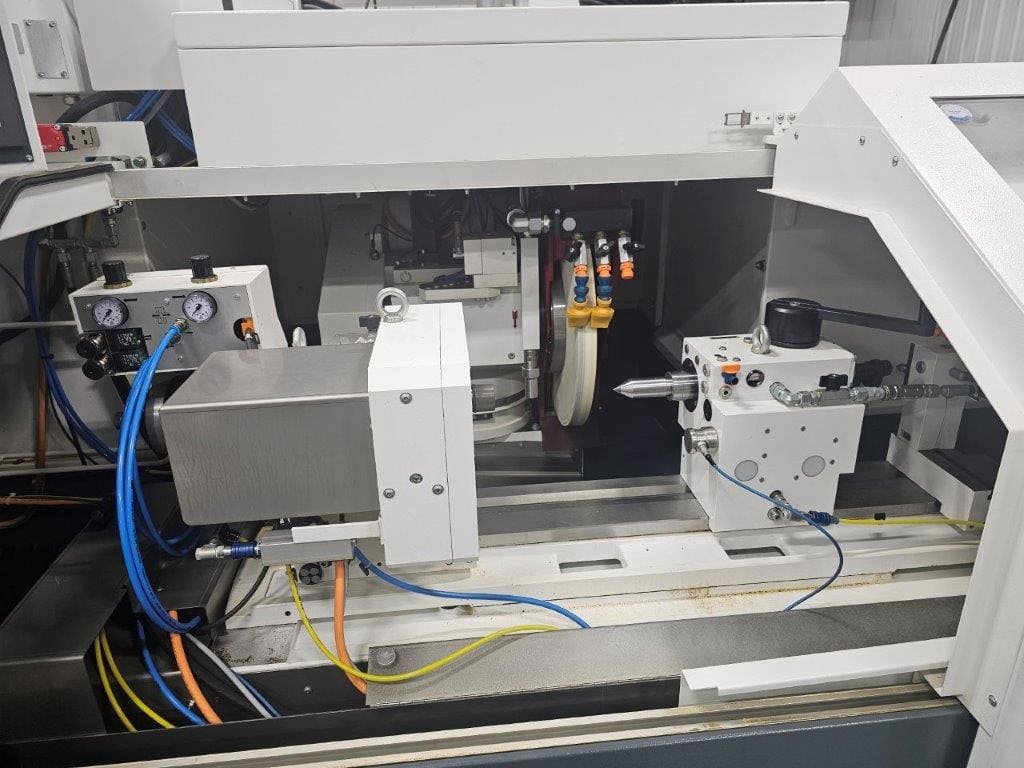

Tailstock

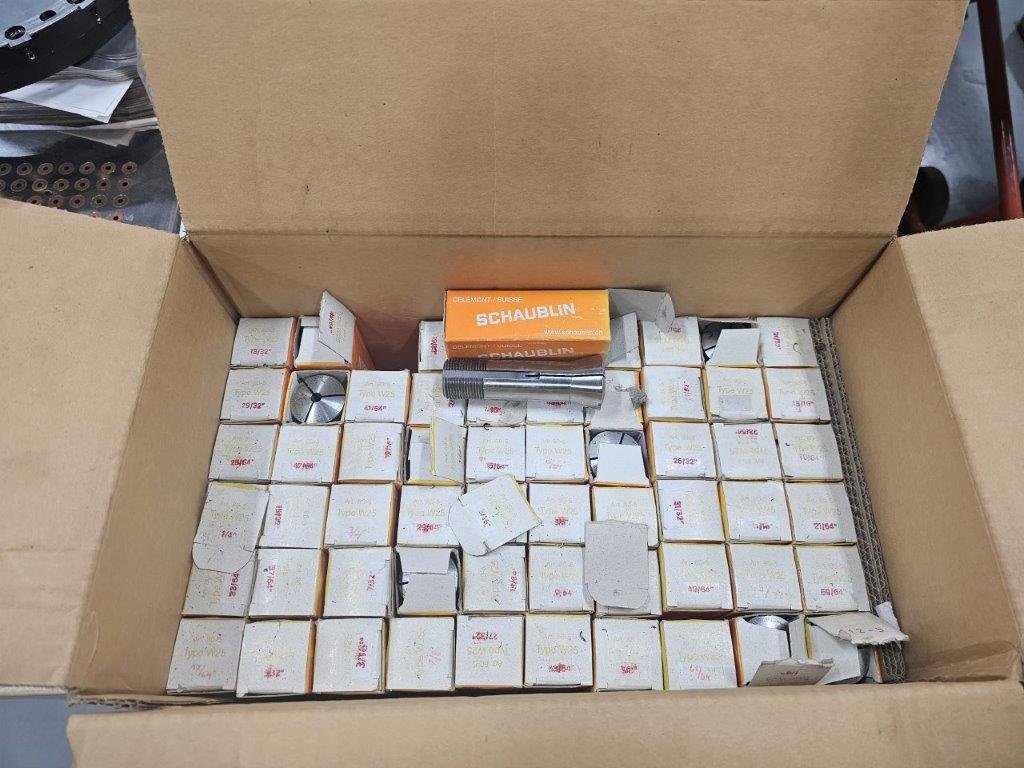

A 60-piece collet set and (6) wheels. Plus other accessories.
