Description
X Axis: 15.7
Y Axis: 12.6″
Z Axis: 12.4″
Table Size: 27.6″ × 15.7″
Spindle Motor Power: 2.9 HP Continuous, 5 HP 15-Minute
Maximum Spindle Speed: 12,000 RPM
Tool Capacity: 15
Max Tool Size: 2.36″ × 7.87″
Max Tool Weight: 4.4 Lbs (7.7 Lbs With Low Speed ATC)
Tool Change Time: 1.0 Second
Rapid Feed X And Y: 945 IPM
Rapid Feed Z: 1,575 IPM
Cutting Feed Rate: 394 IPM
Positioning Accuracy: 0.00016″
Repeatability: ±0.00004″
Machine Width: 68.7″
Machine Length: 118.1″
Machine Height: 113.4″
Machine Weight: 9,920 Lbs
Power Capacity: 18 kVA
Air Pressure: 58–87 PSI
Air Consumption: 3.5 CFM
Noise Level: 75 dB(A) Or Less
Equipped With:
-English Operation Panel
-Full Size Splash Guard With Auto Door, Ceiling, Slide Door Right To Left, Mist Collector, Light Curtain SF4BH48V2
-52.8 Gallon Coolant Tank With Two 1 HP Pumps, Base Cleaning Piping, Splash Gun, Chip Tray
-Additional Chip Tray With 0.5 HP Pump And Cleaning Piping
-Chip Conveyor Installed Inside Right Splash Guard
-Auto Lubrication For Ball Screw And Linear Guides
-DUL Electrical Standard (Breaker, Wire, Electromagnetic Switch, Circuit Protectors)
-Toyooki TP40NA-C3-D Hydraulic Unit

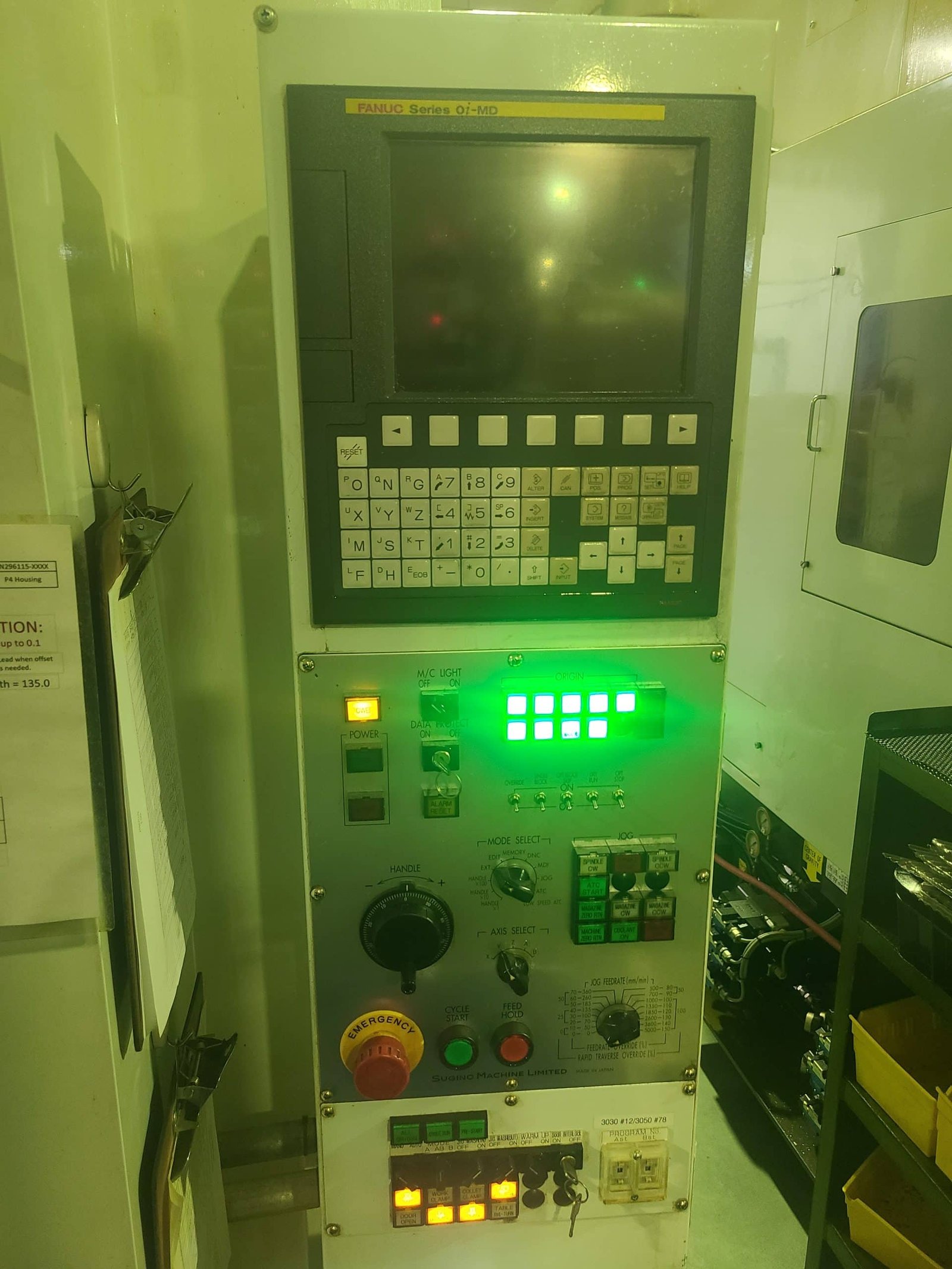

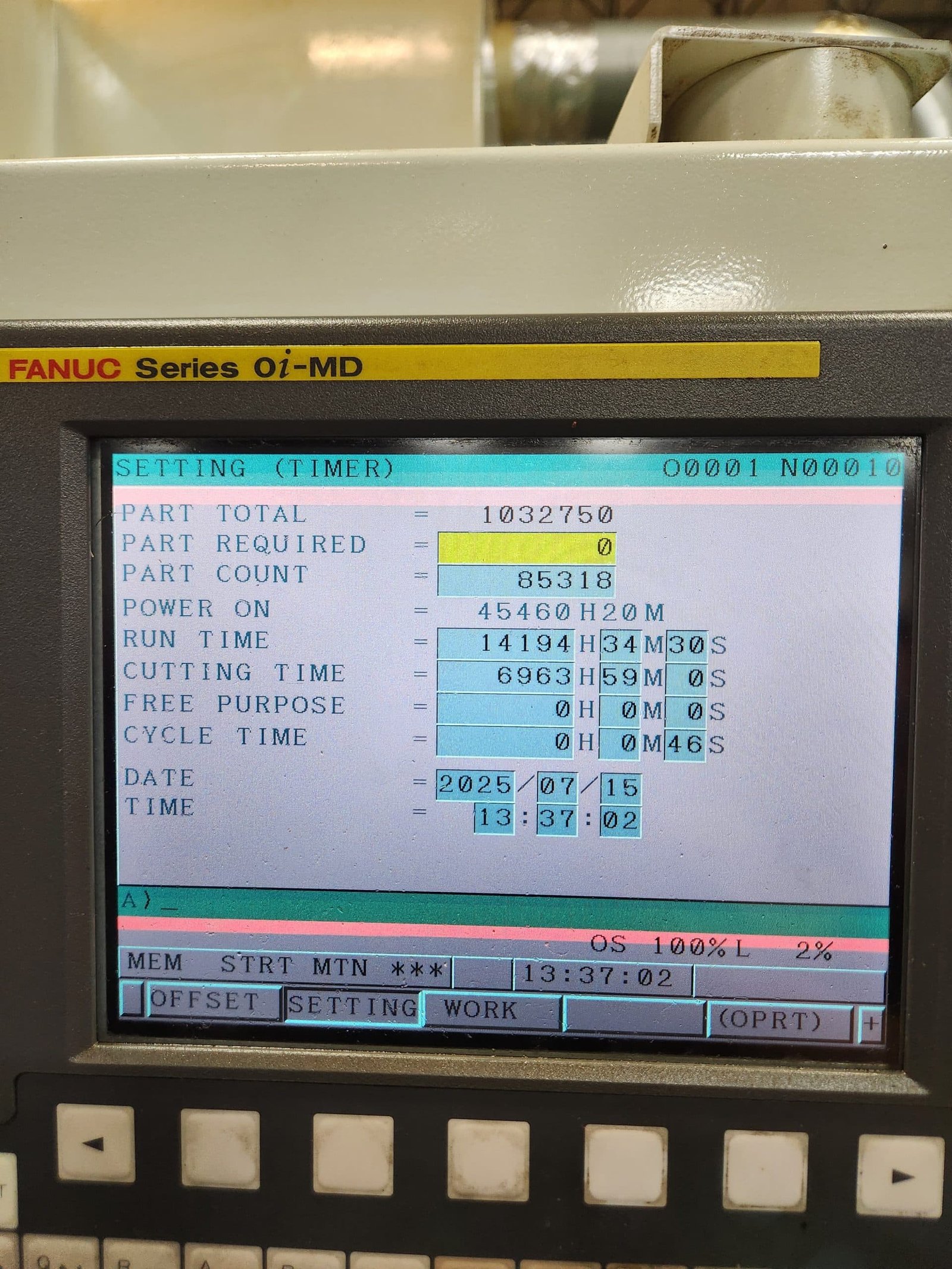

-Fanuc 0i-MD CNC Control
