Description
Inside Diameter Capacity: .350″ to 6-1/2″
Length Range: Bores 1/4″ up to 16″
Depending on Bore Diameter

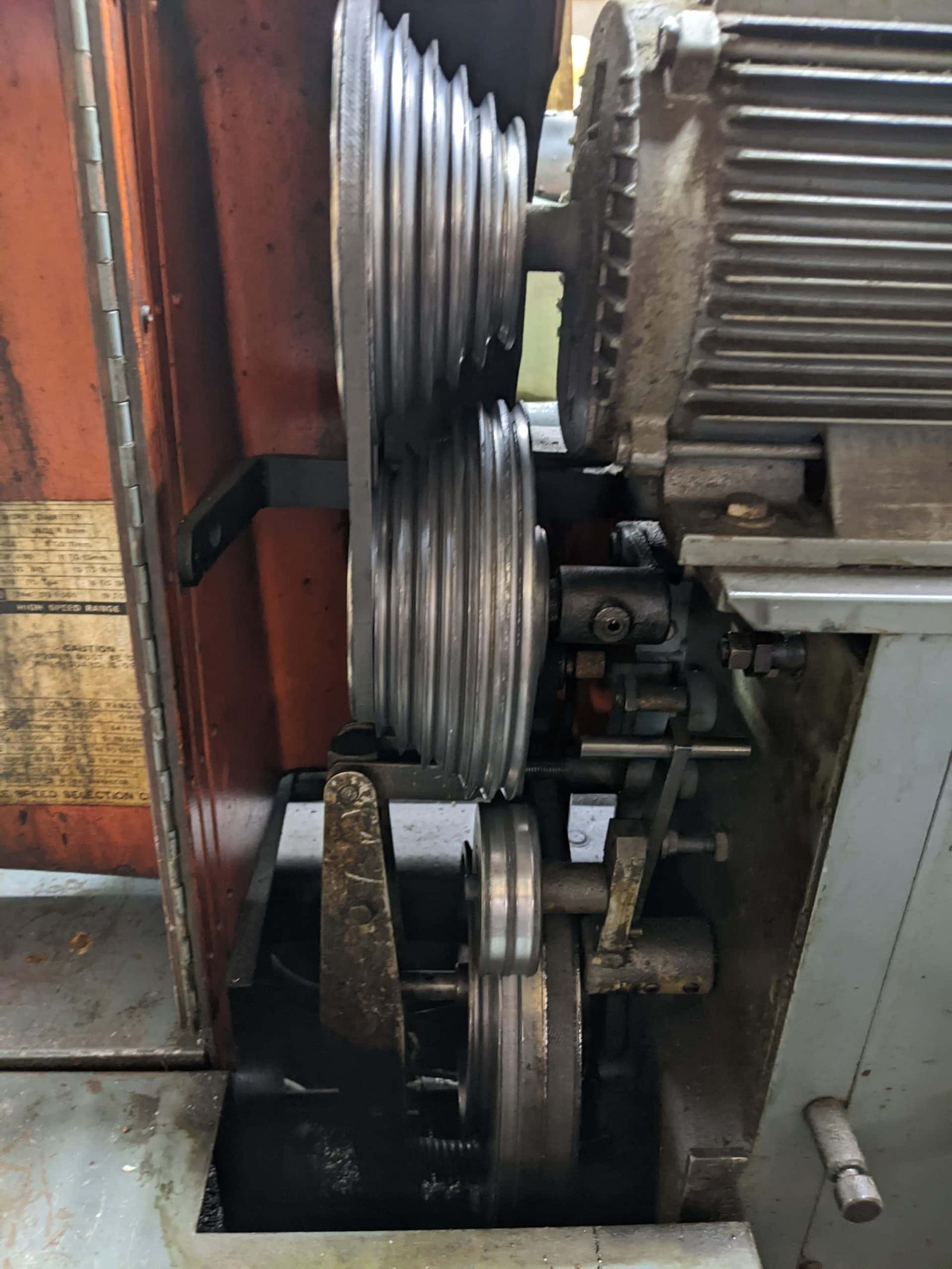

Honing Spindle Speeds
(10) 200 to 1600
Spindle Speeds:
200/250/320/400/500/640/800/1000/
1270/1600 RPM
Spindle Motor: 1/2 HP
Spindle Brake: Standard
Honing Oil Pump: Utilizes Spindle Drive
Motor
Honing Oil Capacity: 16 Gallons
115/230V (Wired 115) 1-Phase
Shipping Dimension: (Approx.)
50″L x 50″W x 75″H
Shipping Weight: 700 Lbs. (Approx.)
Equipped with:
Adjustable Pressure Dial
Tooling
