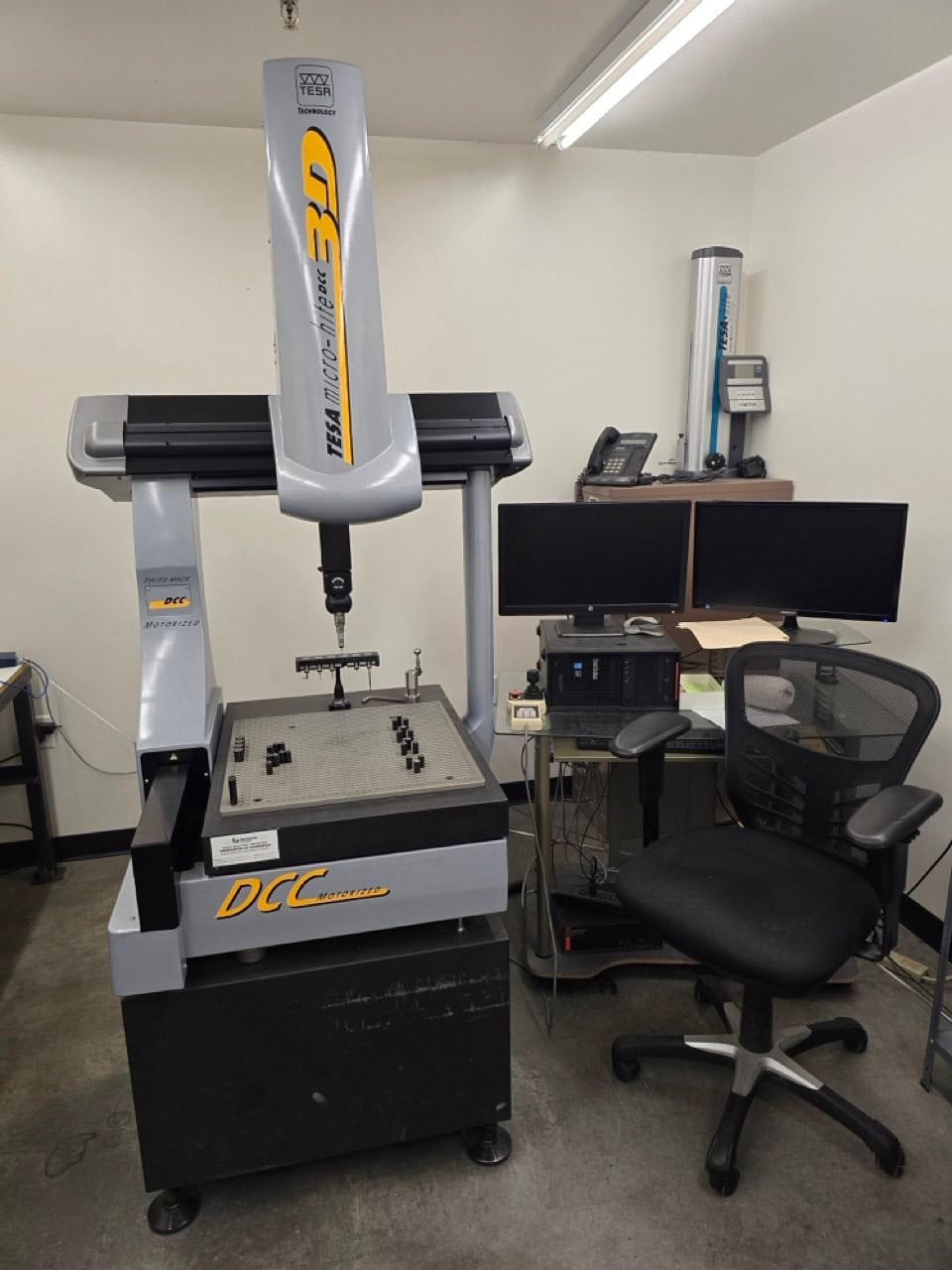

Description
Measuring Volume & Accuracy
Measuring Range (X/Y/Z): 17.32” x 19.29” x 15.35”
Repeatability (ISO MPE-p): 0.00014”
Measurement Uncertainty (ISO MPE-e): 0.000098” + 0.000154” x L
Dimensions & Weight (Imperial Units)
Overall Dimensions (LxWxH): 40.55” x 43.31” x 66.14”
Shipping Box Size: 53.15” x 53.15” x 86.61”
Net Weight: 496 lbs.
Gross Weight: 772 lbs.
Operating Conditions
Power Supply: 230V AC
Air Pressure: Required for air bearings
Operating Temperature Range: 64.4°F to 71.6°F
Equipped With:
Renishaw PH10M
