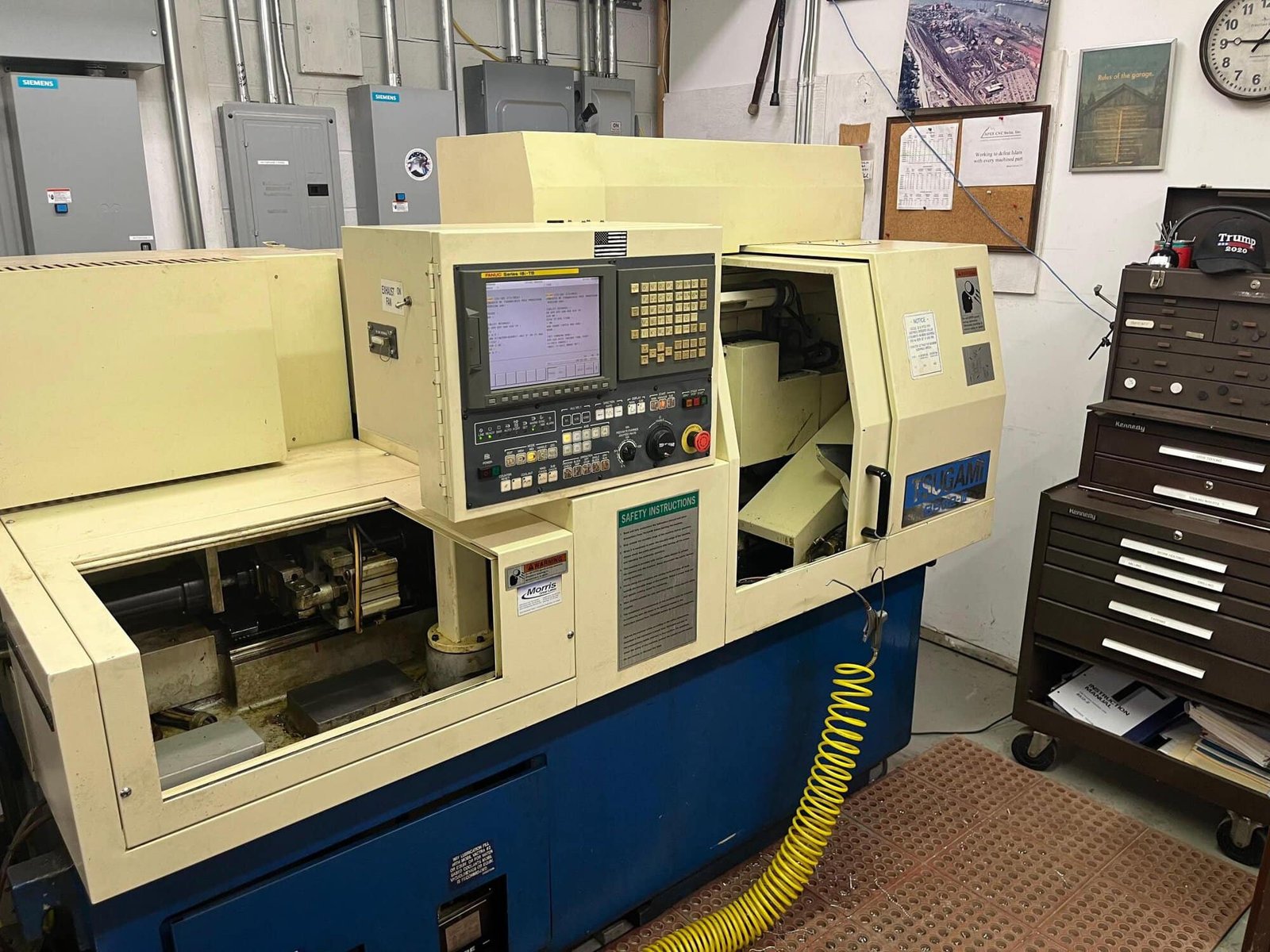

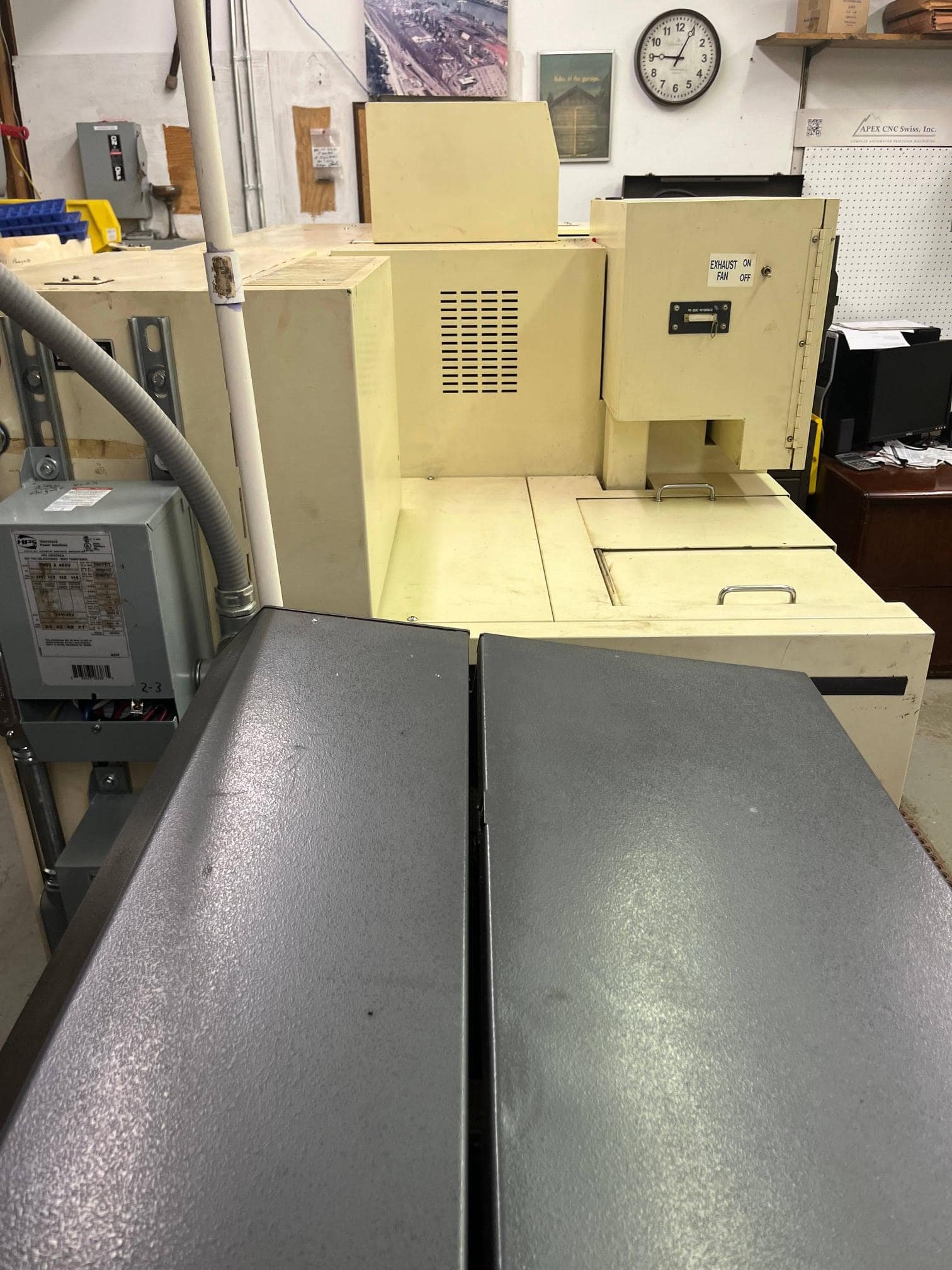

TSUGAMI BS32-C MARK III CNC SWISS LATHE
NEW: 2006
Control: Fanuc 18iTB
Maximum Bar Diameter: 1 1/4″
Z1-Axis Travel (synchronous to Z2): 9.75″
Main Spindle:
Spindle Speed: 200 to 7,000 rpm
Indexing: Full C-Axis (.001 degree)
Programmable Servo Axis Designations:
“Z1 Main Headstock In and Out: 9.75”
“T1 O.D. Tool Slide Up and Down: 11.6”
“X1 O.D. Tool Slide Right and Left: 2.28”
“X2 I.D. Tool Slide Up and Down: 8.66”
Auxiliary Slide Motion:
“Z2 I.D. Tool Slide In and Out:
(synchronous to “Z1″): 7.88″
Sub-Spindle Specifications:
Maximum Diameter: 1 1/4″
Maximum Drill Capacity – mild steel: .472″
Maximum Tap Capacity – mild steel: .393″
Speed Range (serial interface): 200 to 6,000 rpm
Power Rating: 2.7 hp
Sub-Spindle Indexing: 5 degree (C-Axis)
Part Ejection: Front or Rear
Horsepower of Main Spindle: 7.5 hp
Driven Tool Drive Motor Rating: 1.5 hp
Maximum Speed Cross Tool T10-T12: 200-5,000 rpm
Maximum Speed Cross Tool T13: 120-3,000 rpm
Number of Tool Stations: 6 OD, 5 ID, 3 ID/OD Fixed Back working tools, 4 Cross Driven Tools, 2 Driven B/W
Tooling Sizes, Turning: 5/8″ square
Dimensions (approx): 88″ x 60” x 7’
Weight (approx): 6000 lbs.
