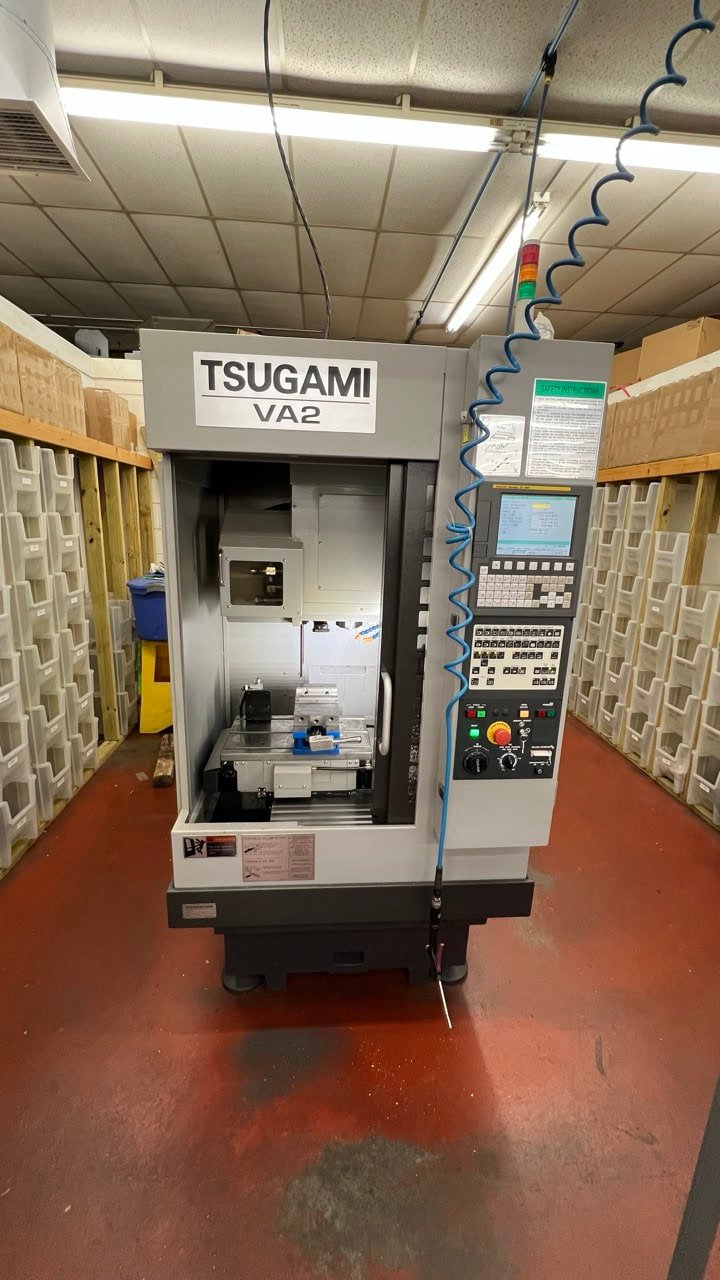

Description

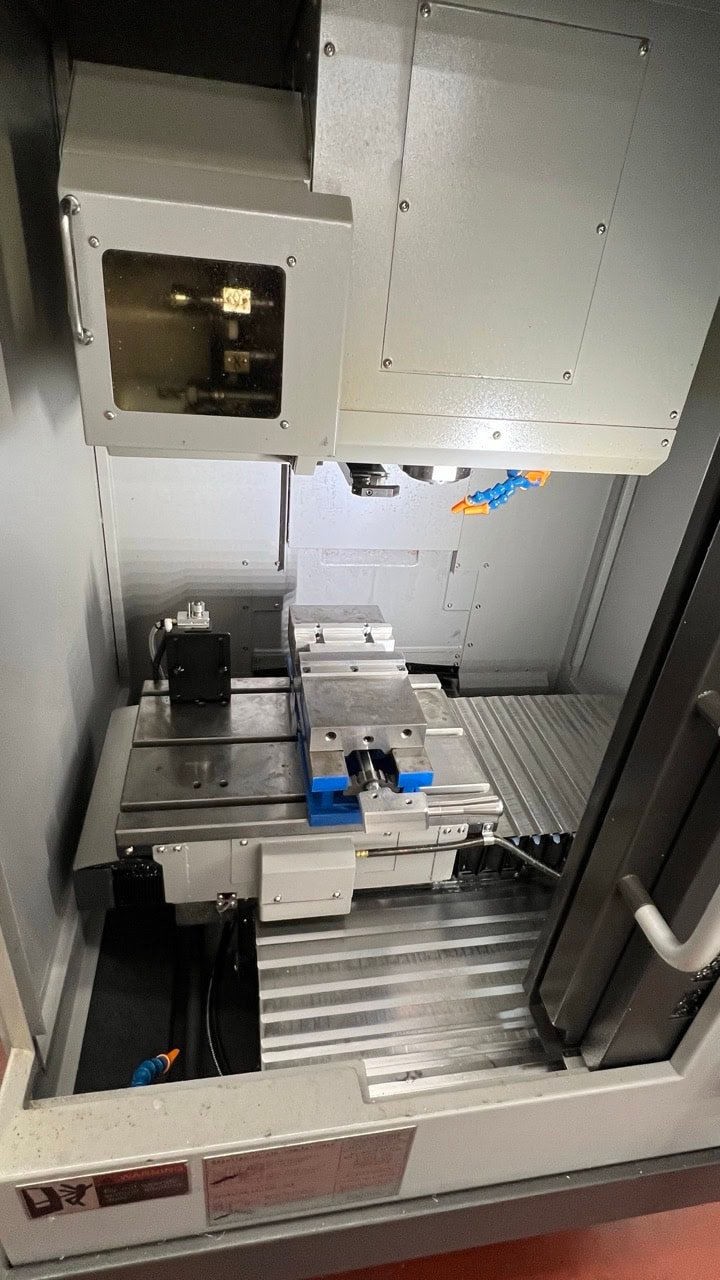

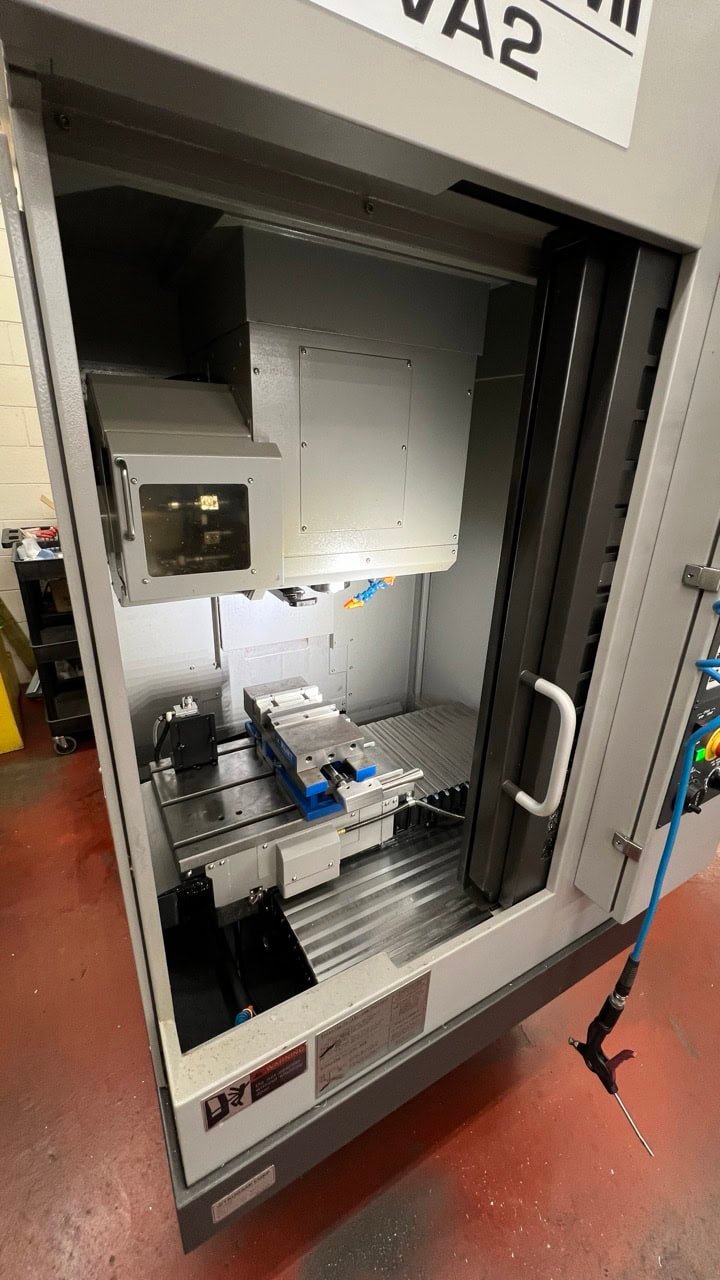

Table Size: 23.6″ x 12.6″
Spindle Nose to Table: 5.9″ – 19.7″
Max Table Load: 330 lbs
Travels:
X-axis: 16.14″
Y-axis: 12.6″
Z-axis: 13.78″
Rapid Traverse (X/Y/Z): 1,417 ipm
Cutting Feed Rate: 394 ipm
Positioning Accuracy: ±0.0002″
Repeatability: ±0.00008″
Spindle Taper: 7/24 taper S20T
Spindle Speed: 12,000 RPM
Spindle Power: approx 7.5HP
Tool Storage Capacity: 14
Dimensions: approx 80″ x 64″ x 87″
Weight: approx 3,968lbs

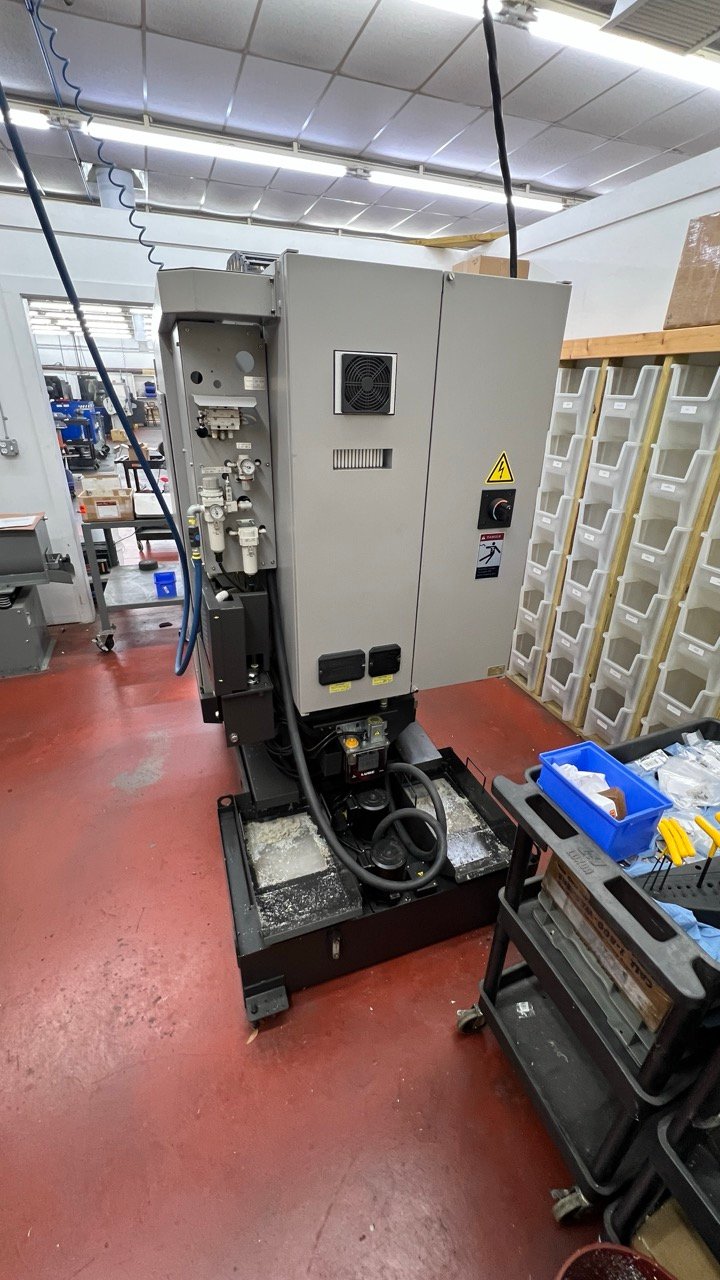

Electrical Requirements: 200V/3 Phase/50Hz
Equipped With:
Tool Setter
