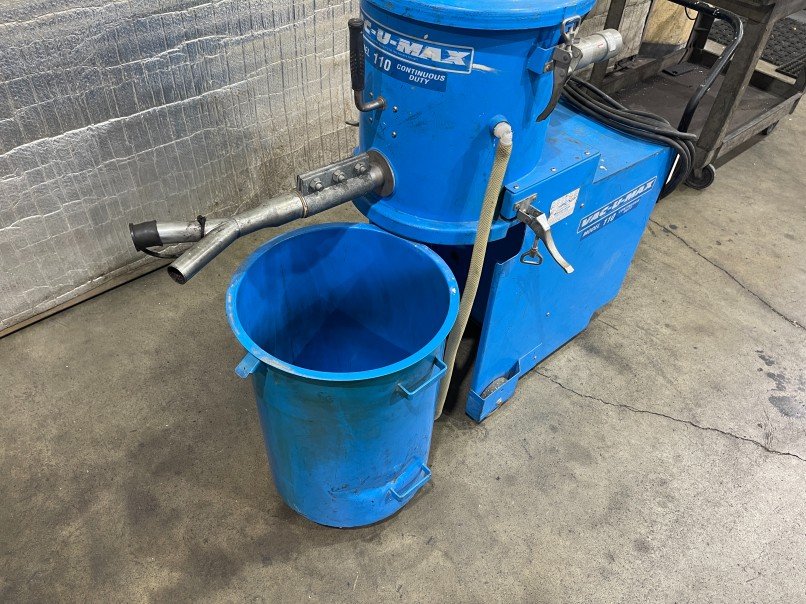

Description
Maximum Suction Power 7″ Hg. (240mbar)
Maximum Air Flow 230 CFM (390 m3/hr) at 60 Hz (192 CFM / 326 m3/hr at 50 Hz)
Suction Connection 2.0″ (50mm)
Motor 5.0 HP (3.75 kW) XP Motor for Class 1 or 2 environments

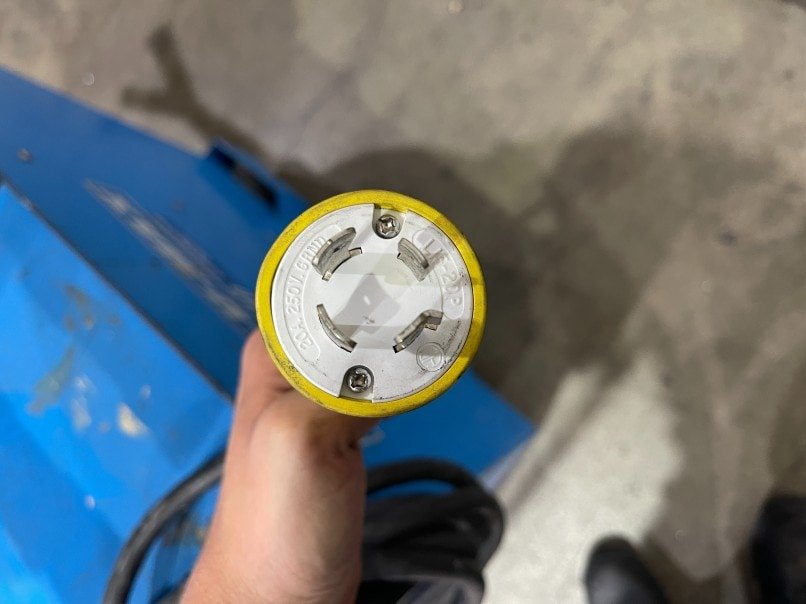

Voltage 230V, 460V, or 575V – 60hz/3 phase (select at time of order). 380V /50 Hz also available.
Capacity of Container 18 gallon (68L)
Dimensions 46″L x 21″W x 49″H (1170mm x 535mm x 1259)
Operating Weight 260 lbs. (118kg)
Seller –
$12,000 system new. We basically just rebuilt it, rewired it, cleaned it and replaced all the seals.
