Description
Table Size: 4′ x 8′
X Axis: 53″
Y Axis: 98″
Z Axis: 8″
Part Clearance: 60″x6″
Overall Foot Print: 69″x125″x33″
Rapid Speeds:
X Axis: 900 ipm
Y Axis: 900 ipm
Z Axis: 200 ipm
Cut Speeds Foam 2″ deep, 1/2 Bit:
X Axis: 600 ipm
Y Axis: 600 ipm
Z Axis: 100 ipm
Cut Speeds Wood .500″ deep, 1/2 Bit:
X Axis: 200 ipm
Y Axis: 200 ipm
Z Axis: 100 ipm
Resolution:
X Axis: 0.001″
Y Axis: 0.001″
Z Axis: 0.00035″
Repeatability: 0.003″ +/-
Drive Mechanism: Rack and Pinion X & Y. Ballscrew on Z.
Weight: Est. 2000 lbs
Equipped With:

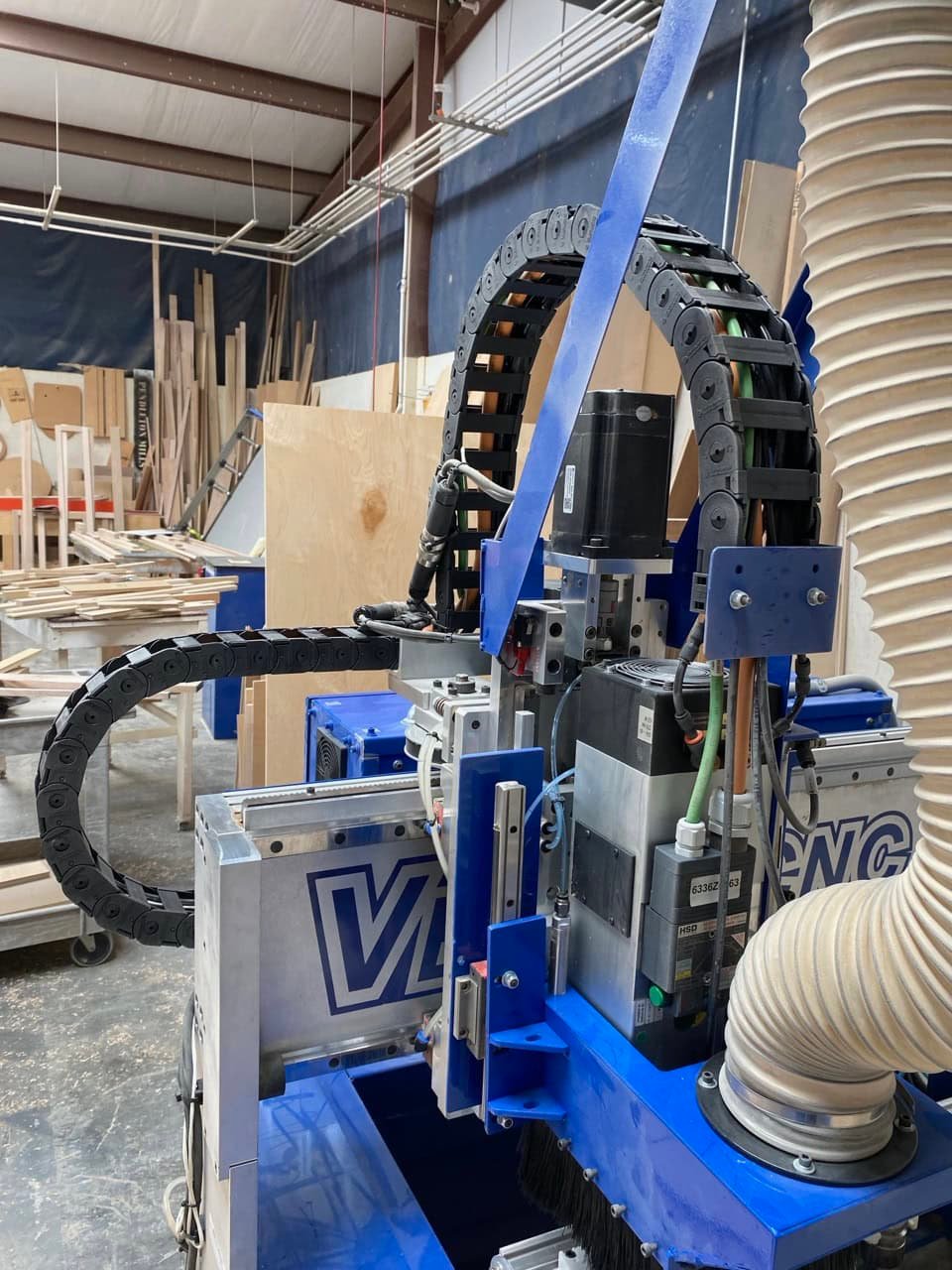

-5Hp HSD Auto tool change spindle, 220V, Single or three Phase, Italian
-Delta VFD
-Vacuum Table
-11HP Vacuum
-Remote vacuum on/off control
