Description
SPECS & FEATURES:

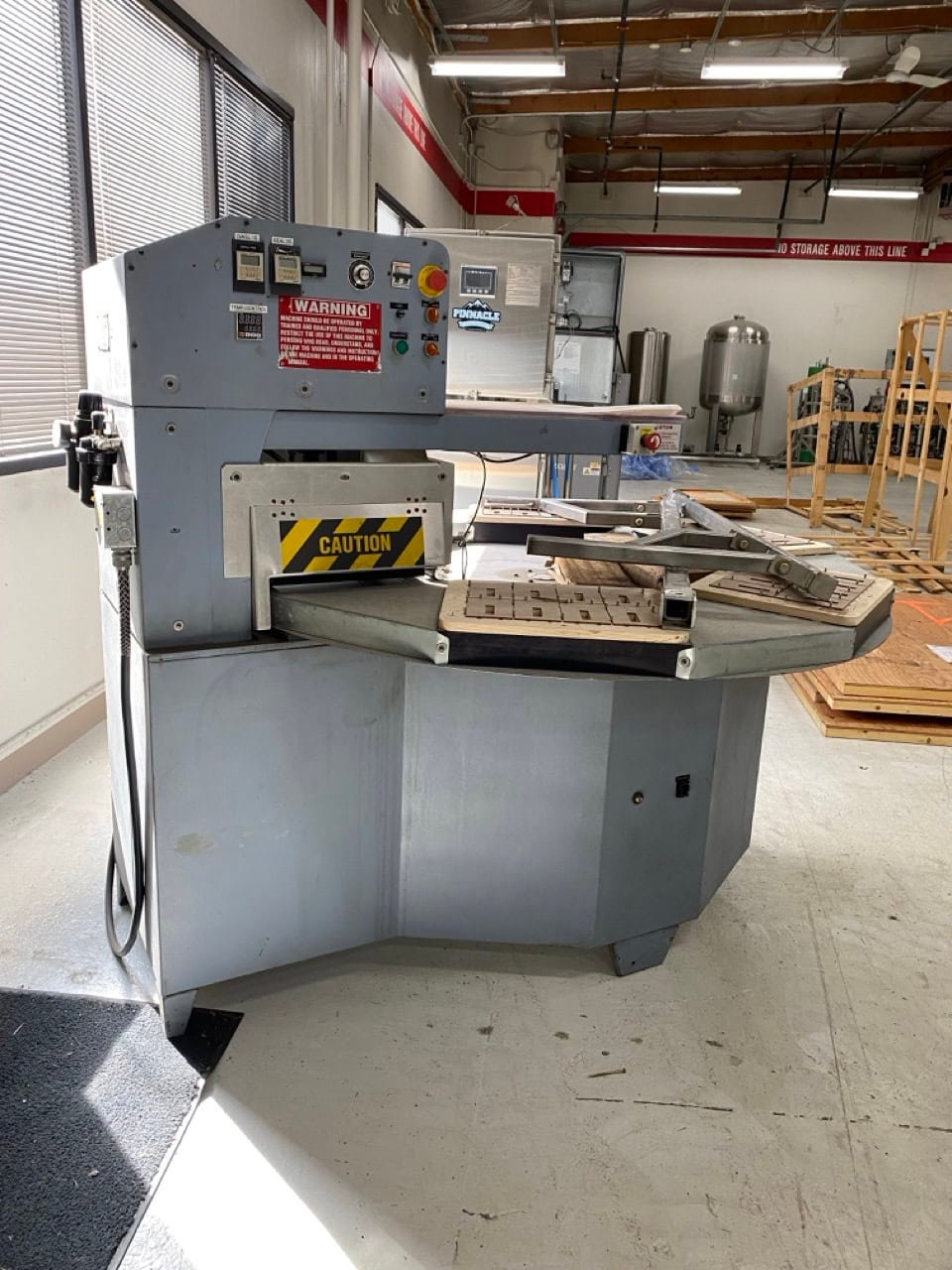

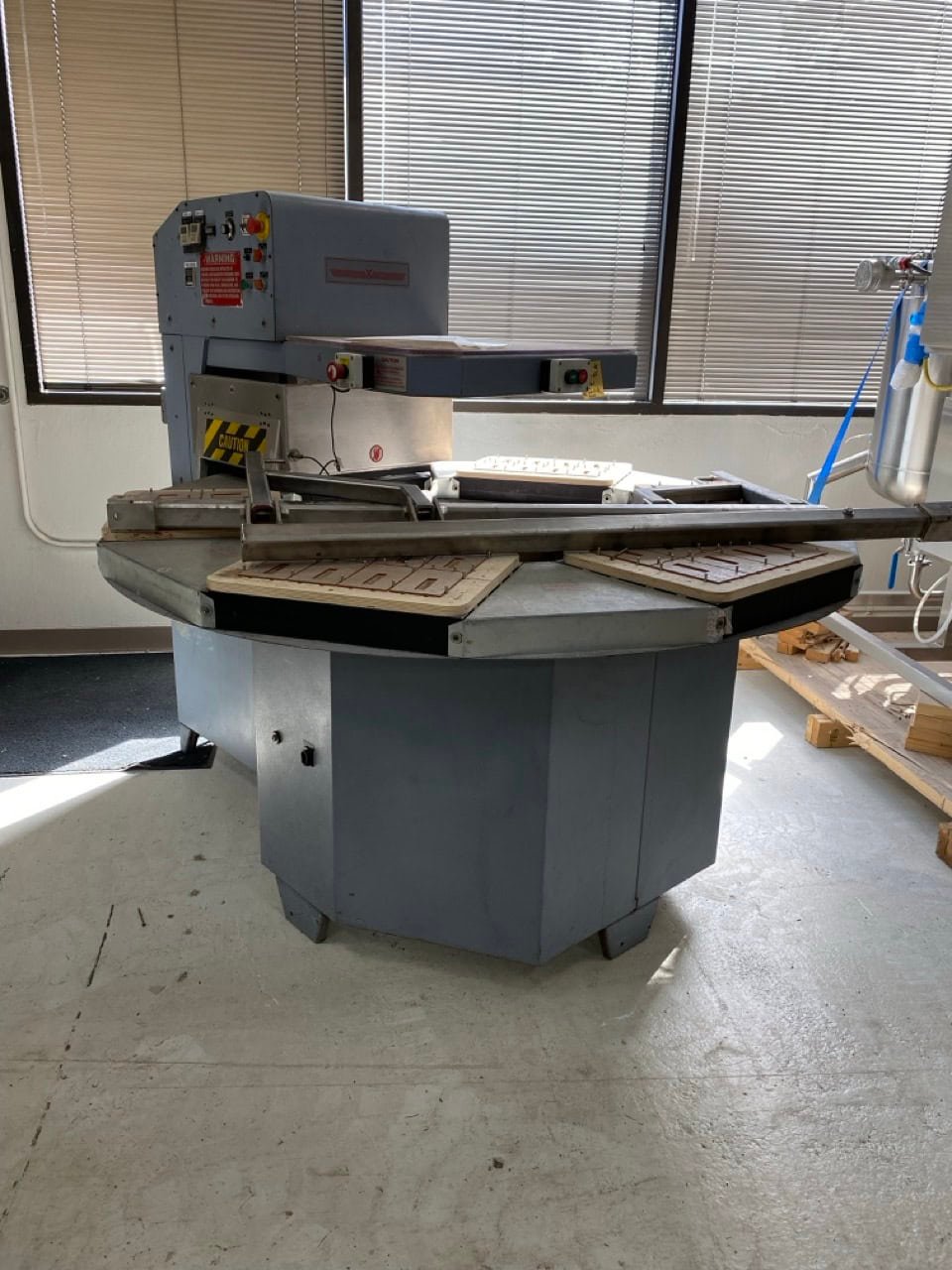

– ROTARY INDEXING: 6-STATION AUTOMATIC ROTARY TABLE
– SEALING TYPE: HEAT SEALER (BLISTER PACK APPLICATIONS)
– TYPICAL APPLICATIONS: BLISTER PACKAGING FOR CONSUMER GOODS, PHARMA, ELECTRONICS, ETC.
– STATION CONFIGURATION: 6 SEALING HEADS, CONTINUOUS MOTION
– MAX SEALING AREA: 12″ X 16″ (TYPICAL)
– PRODUCTION RATE: 18–30 CYCLES PER MINUTE
– OPERATOR INTERFACE: TOUCHSCREEN OR PLC CONTROLS
– CONSTRUCTION: INDUSTRIAL-GRADE FRAME
– HEAT SEAL PLATENS: TEMPERATURE CONTROLLED
– AIR & VACUUM INTEGRATION
– SAFETY: LIGHT CURTAINS, SAFETY INTERLOCKS
– TOOLING: QUICK-CHANGE
– STANDARD COMPLIANCE: OSHA, CE, UL/CSA
PNEUMATIC / AIR REQUIREMENTS: 80 PSI, 3–6 CFM
ELECTRICAL REQUIREMENTS: 220V OR 480V, 3 PHASE, 50/60 HZ, 10–15 AMPS
DIMENSIONS: 8’ L X 5’ W X 6.5’ H
WEIGHT: 3,500–5,000 LBS
