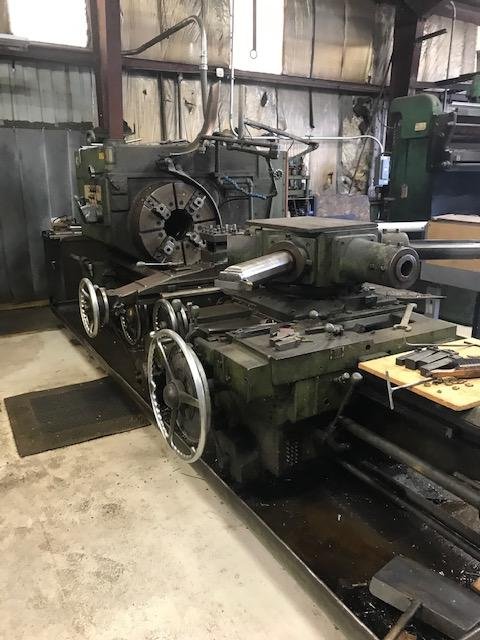

Description
Swing Over Bed Ways: 28-1/4″
Swing Over Cross Slide: 22-7/16″
Center Distance: 59-7/8″

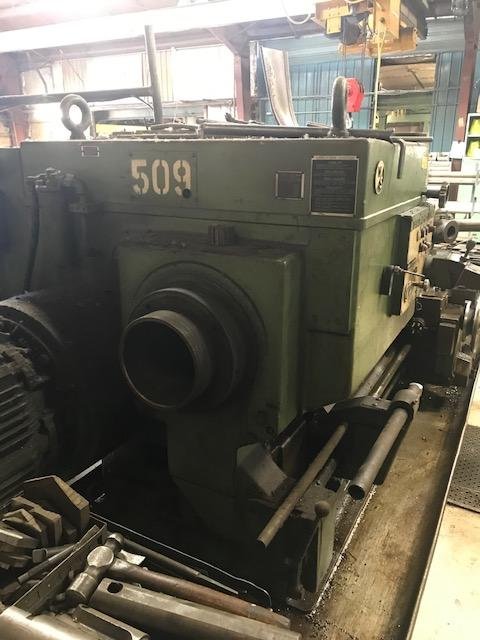

Spindle Hole: 9-1/4″
Spindle Speeds: 10 To 526Rpm
Spindle Nose: A2 American Standard
Chuck Size: 24″, 4- Jaw
Cross: 0035 To .167 I.P.R.
Feeds Long: 005 To .167 I.P.R.
Main Motor: 75 Hp.
Approximate Weight: 28,000Lbs.
Approximate Dims: 23′ X 84’x 80″h
Equipped With:

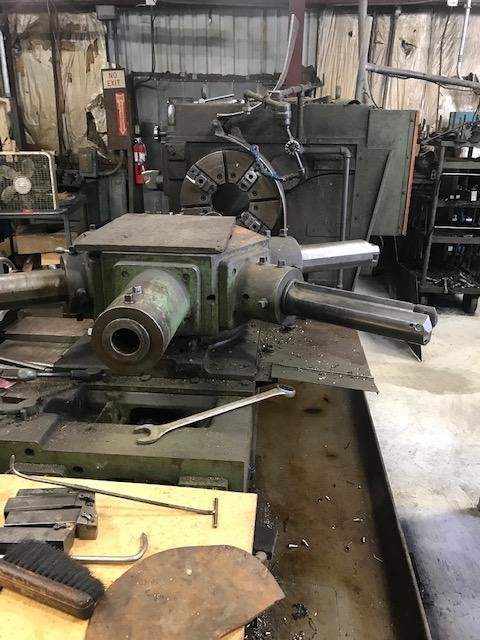

Cross Sliding Rear Turret
Coolant
Tool Post 4 Way On Front
Rapid Traverse Front & Rear Carriages
24″ Chuck,
Power Rapid Traverse,
15″ Type Spindle Nos
