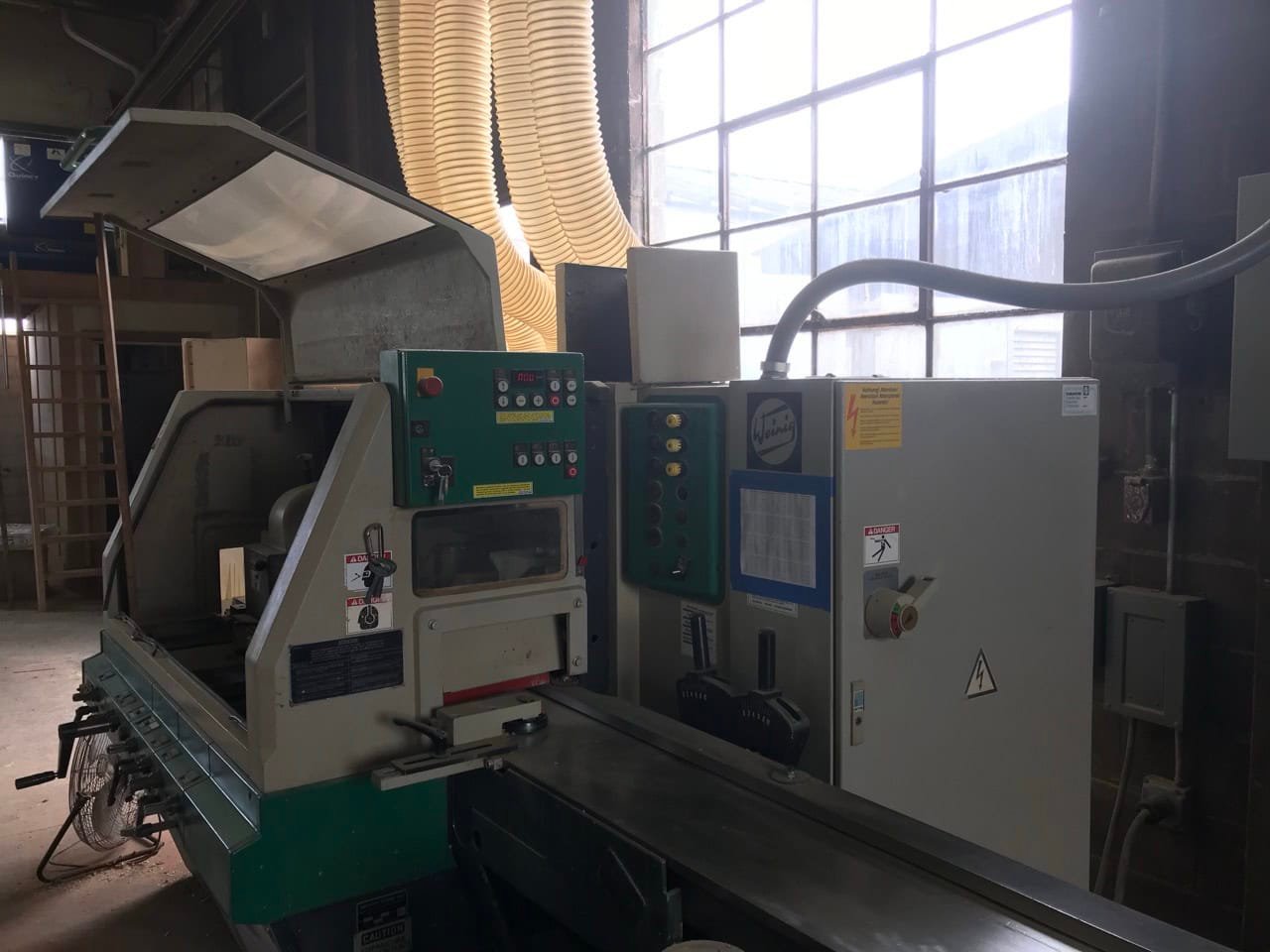

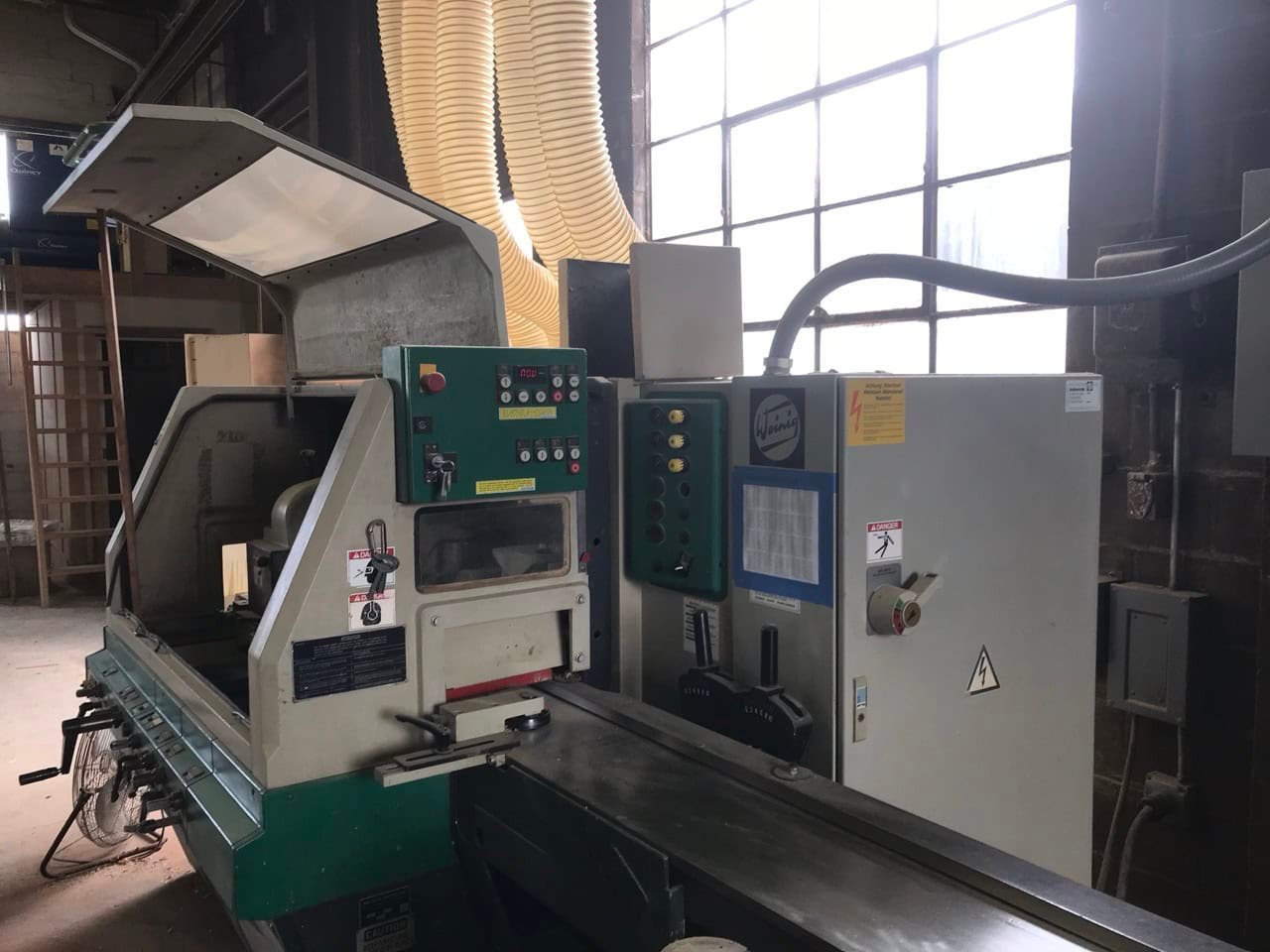

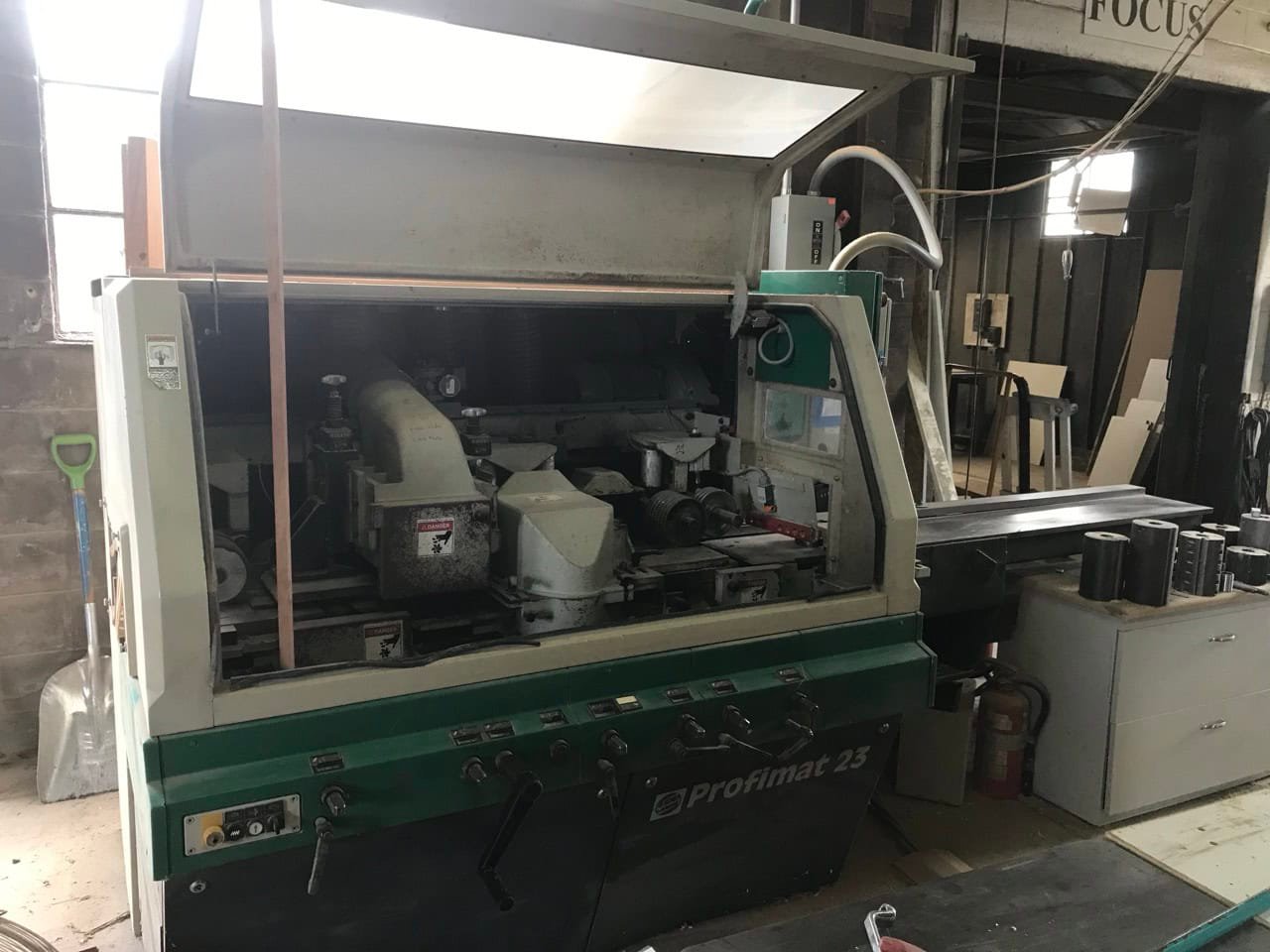

Description
40mm bore
4 heads: Bottom (10HP), Right/left (10HP), Top (15HP)
Feed (3HP)
Working width: 3/4″ – 3 1/16″
Working height: 5/16″ – 4 3/4″
Spindle speed: 6000 RPM
Tool cutting circle, 1st bottom spindle: 5″ – 5 11/16″
Tool cutting circle, vertical spindles: 4″-7 7/8″/7 1/8″
Tool cutting circle, horizontal spindles: 4″ – 7 7/8″
Tool cutting circle, universal spindle: 4″ – 7 7/8″
Feed speed, infinitely variable: 16/78 ft/min
Feed roller diameter: 5 1/2″
Pneumatic pressure for feed roller, max: 87 PSI
Range of adjustment of straightening table and edge-jointing fence: 3/8″
Motorized “up and down” feed adjustment
Motorized left head width adjustment
Shipping Footprint: 10 (length) x 6 (width) x 6 (height)
Weight: 6000 lbs
