WSM 3466 BHBP Horizontal Grinder – Heavy-Duty Wood & Biomass Grinding System

Name: WSM 3466 BHBP Horizontal Grinder – Heavy-Duty Wood &amp; Biomass Grinding System
SKU: 34005667182
Availability: InStock

€ 99.900,00

-Feed Opening: 66″ W x 16″ H -Rotor Dimensions: 34″ Diameter x 66″ Length -Hammer Configuration: Fours Rows of Rigid Hammers -Feed Mechanism: 15 HP Feed Roller and Bed Plate -Motor: 250 HP -RPM: 1188 RPM -Electrical Requirements: 460V, 3P, 60Hz Application info: Primary grind Guayule plant at 20,000LBS per hour Drawing Available

SKU: 34005667182

Category: Process Equipment

Description

Description

-Feed Opening: 66″ W x 16″ H

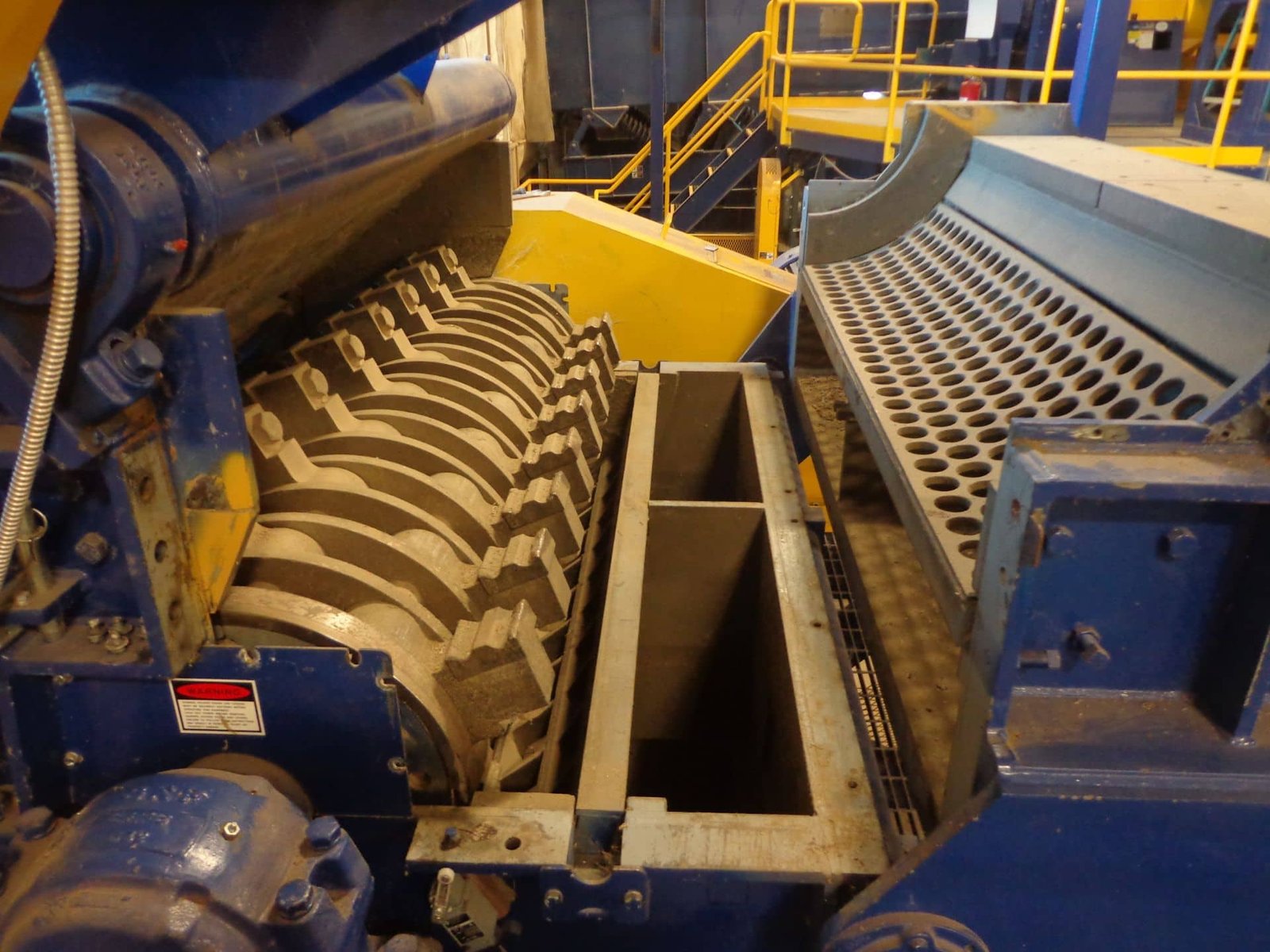

-Rotor Dimensions: 34″ Diameter x 66″ Length

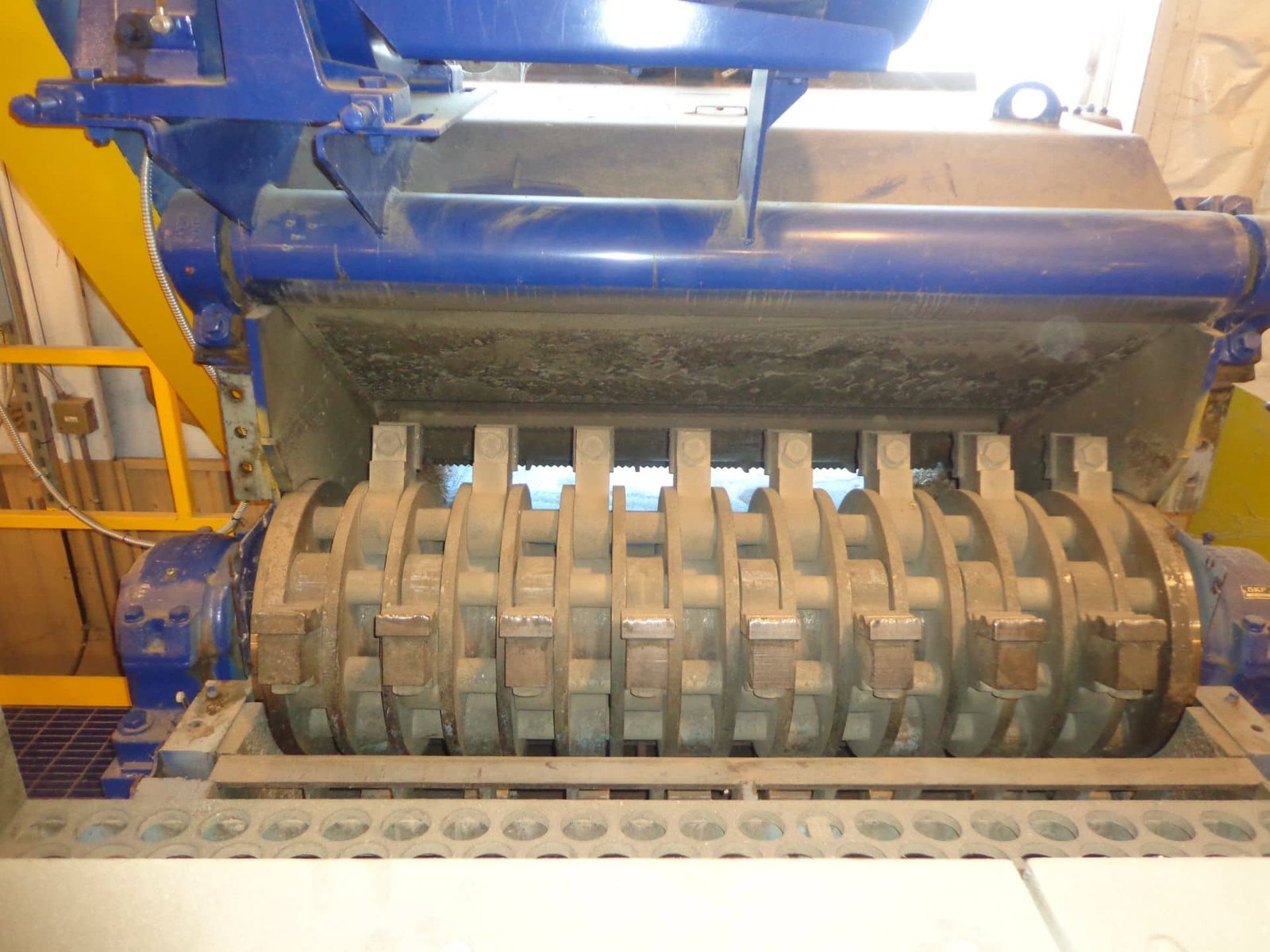

-Hammer Configuration: Fours Rows of Rigid Hammers
-Feed Mechanism: 15 HP Feed Roller and Bed Plate
-Motor: 250 HP
-RPM: 1188 RPM
-Electrical Requirements: 460V, 3P, 60Hz

Application info: Primary grind Guayule plant at 20,000LBS per hour

Drawing Available
