Description
Equipment Overview

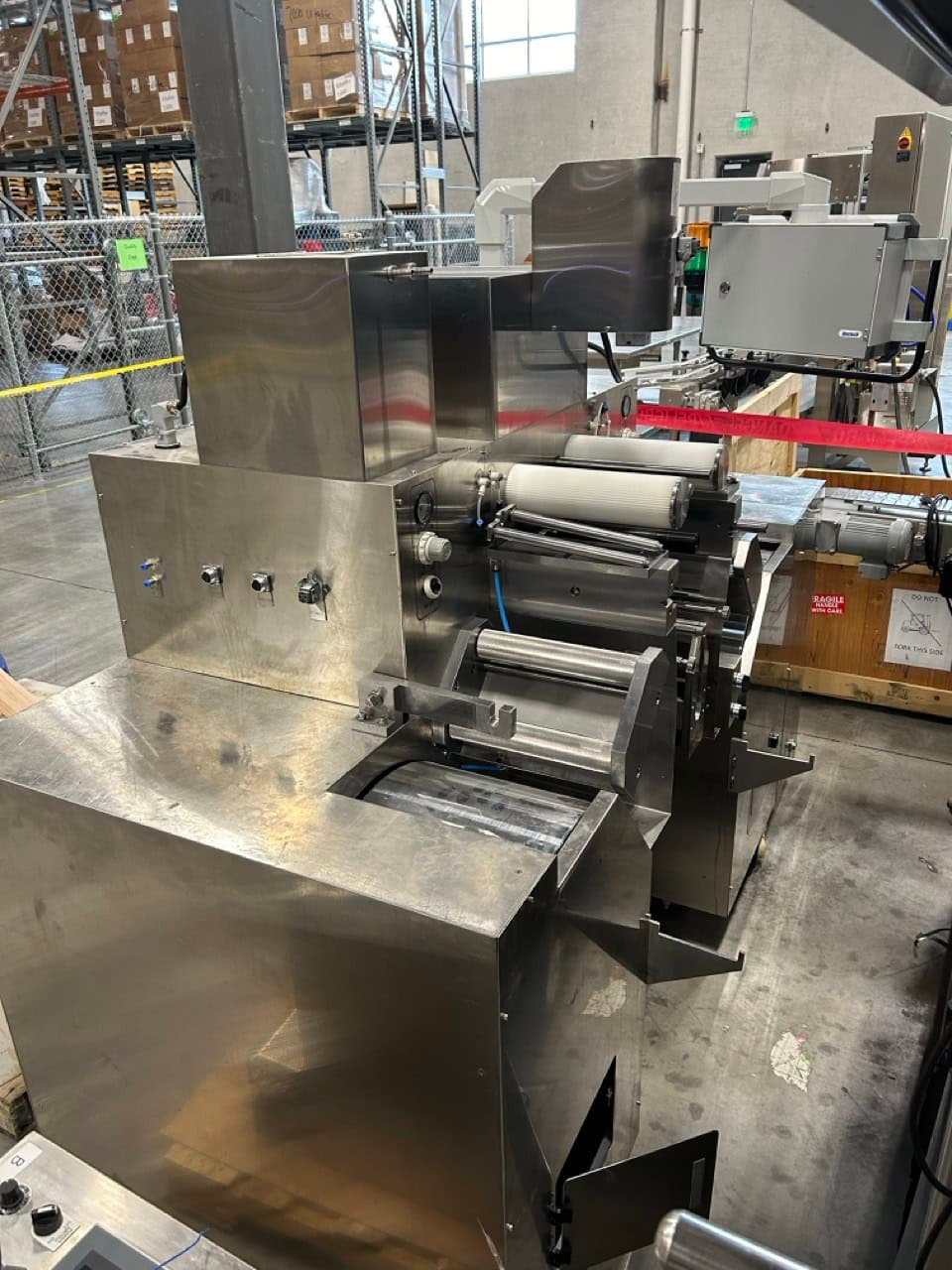

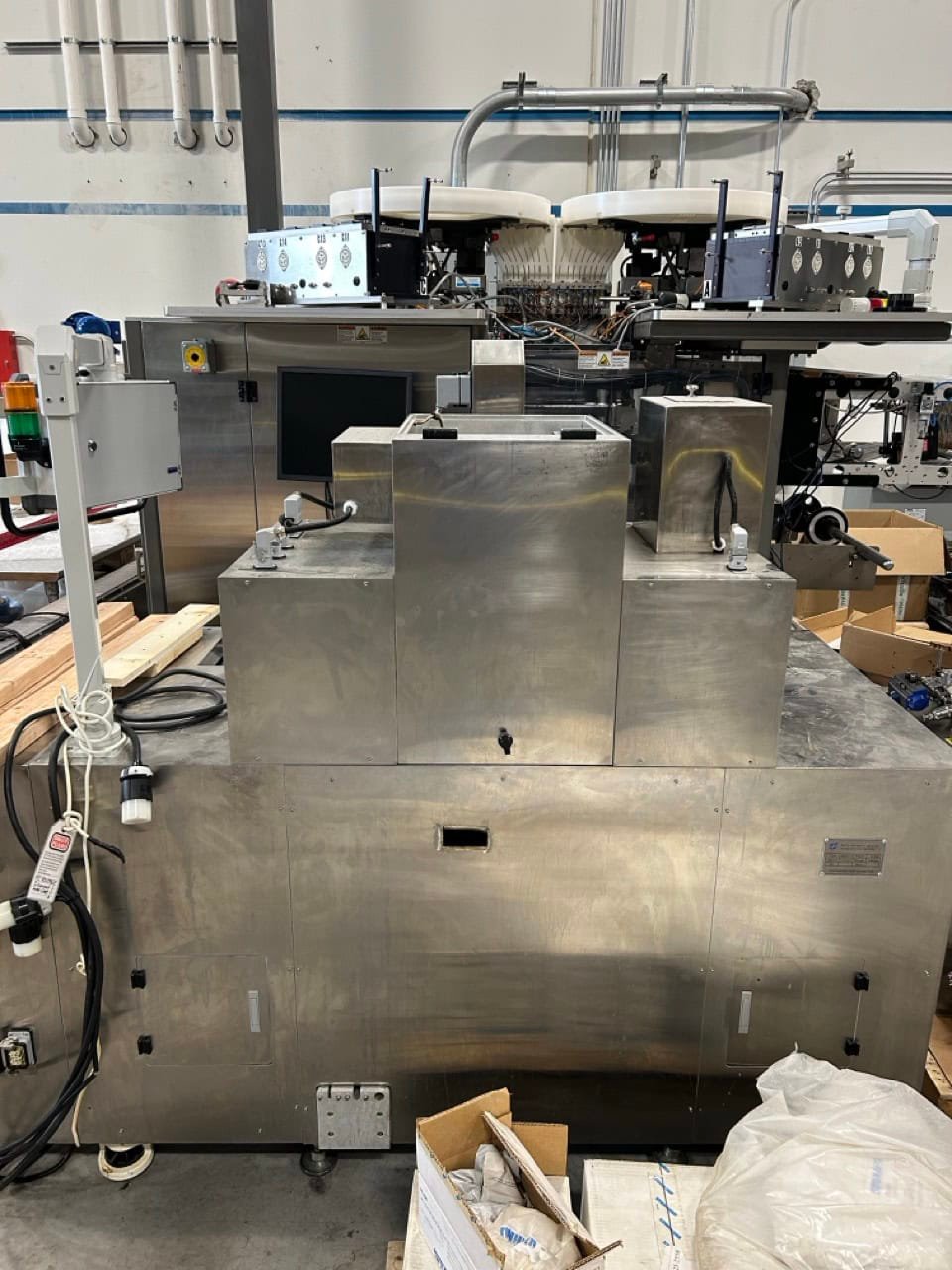

The YWJ250-II is a high-capacity softgel encapsulation machine designed for pharmaceutical or nutraceutical operations. It supports 20-plunger dosing, precision fill control, and integrated water/air cooling. Rated for up to 115,000 capsules per hour, it features PLC recipe control, pneumatic clamping, and CE/GMP-ready build. Stainless steel chassis, 12 kW power draw, and standard mold size φ150×250 mm place it in the upper tier of automated gelatin processing systems.
Key Features and Specifications
– Fully automatic softgel encapsulation system
– Rated production: up to 115,440 capsules/hour (8# OV at 4 rpm)
– Water-bath injection ±0.1°C temperature control
– Mold size: φ150×250 mm; speed: 0–5 rpm
– Control accuracy: ±0.5% (≥500 mg), ±1.5% for suspended fills
– Power: 12 kW / 360–380 V / 3-phase

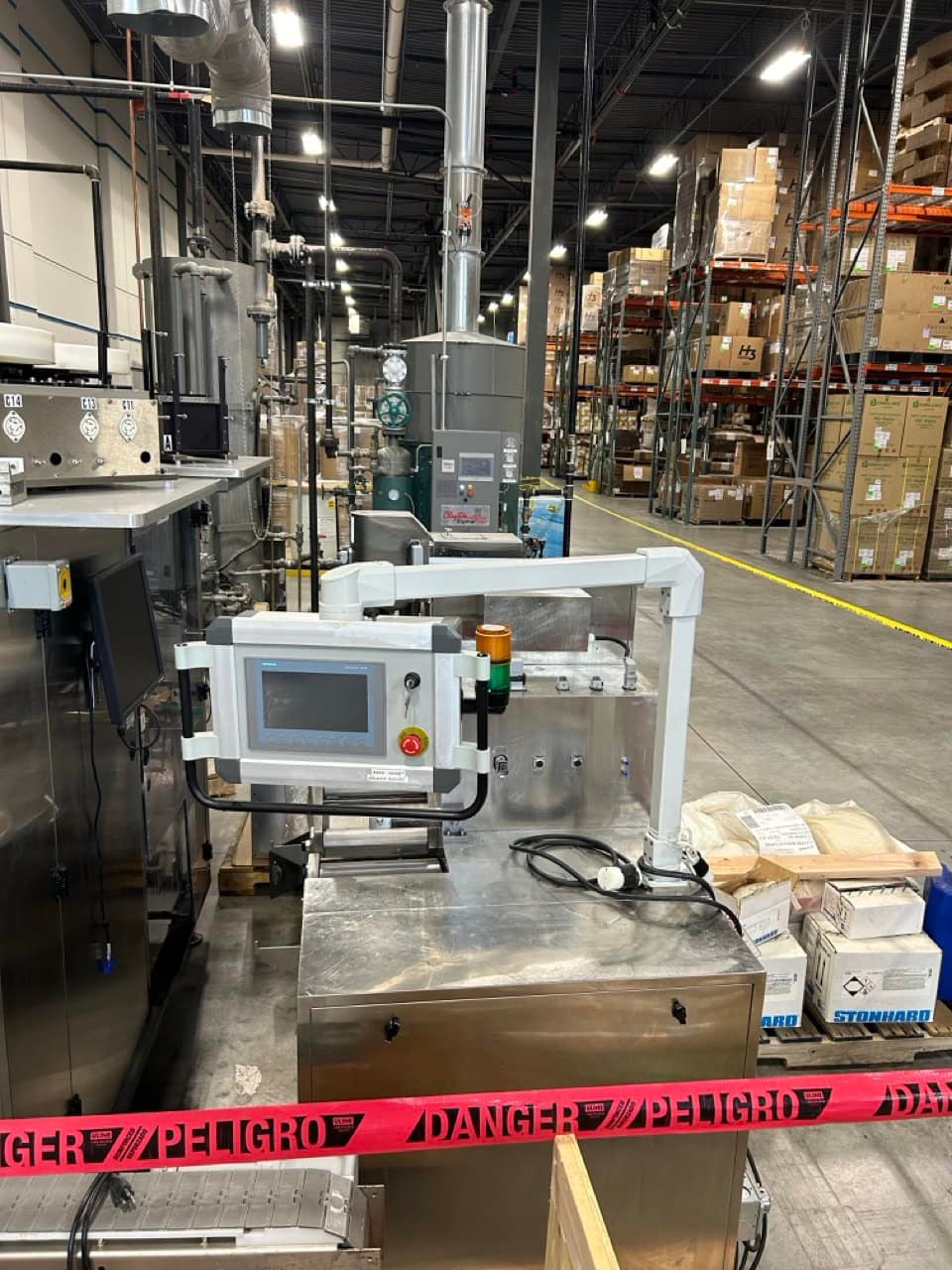

– PLC touchscreen with recipe memory
– 20-plunger pump for accurate volumetric fill
– Siemens/Schneider electrical components
– Stainless steel exterior, weight ~1,500 kg
– Dimensions approx. 2040 × 960 × 1900 mm
