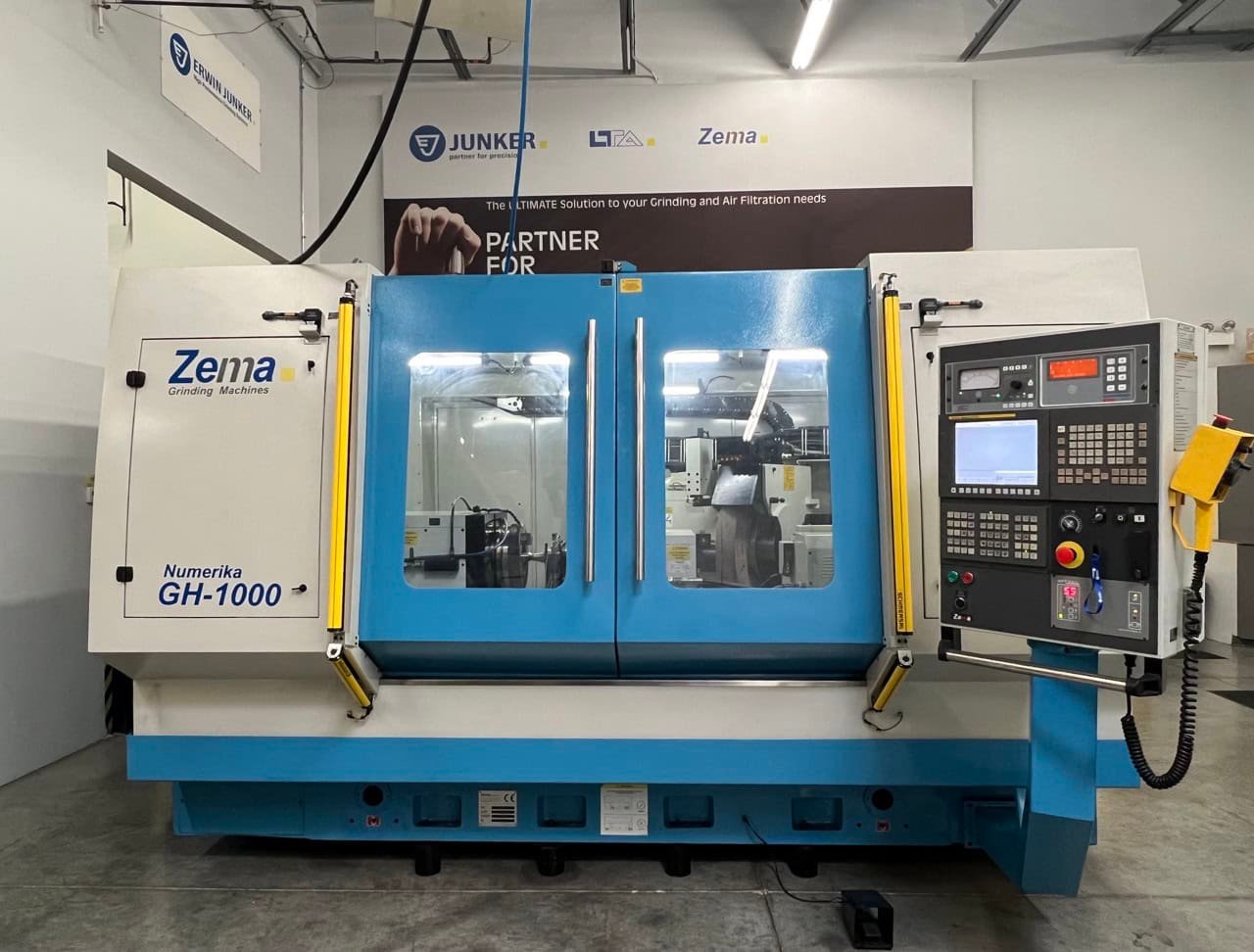

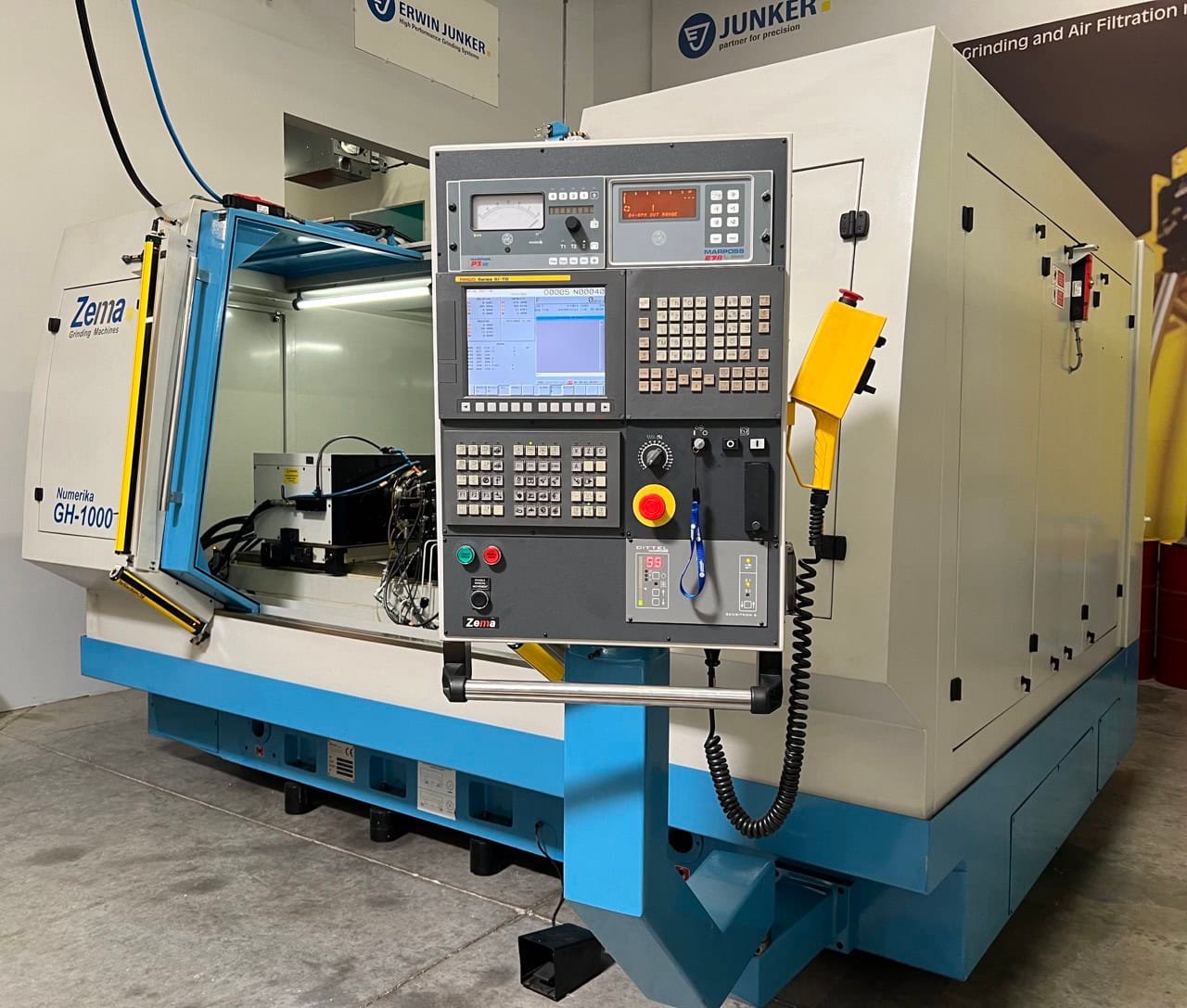

Description
Grinding length: 31.49”
Distance between centers: 39.37″
Center height: 9.05”
Swing diameter: 17.71”
Workpiece weight: Max. 551.15 lbs
Grinding Wheel Width: 5.90″
Weight:
Basic machine: 29,000 LBS
Wheelhead:
X axes (infeed):
Travel: max. 17.71”
speed: max. 6m/min
Z axes:
Travel: max. 47.24”
Speed: max. 12 m/min
Spindle power: 40.78 hp
Workhead rotational speed: 20-500 rpm
Internal taper: MT 5

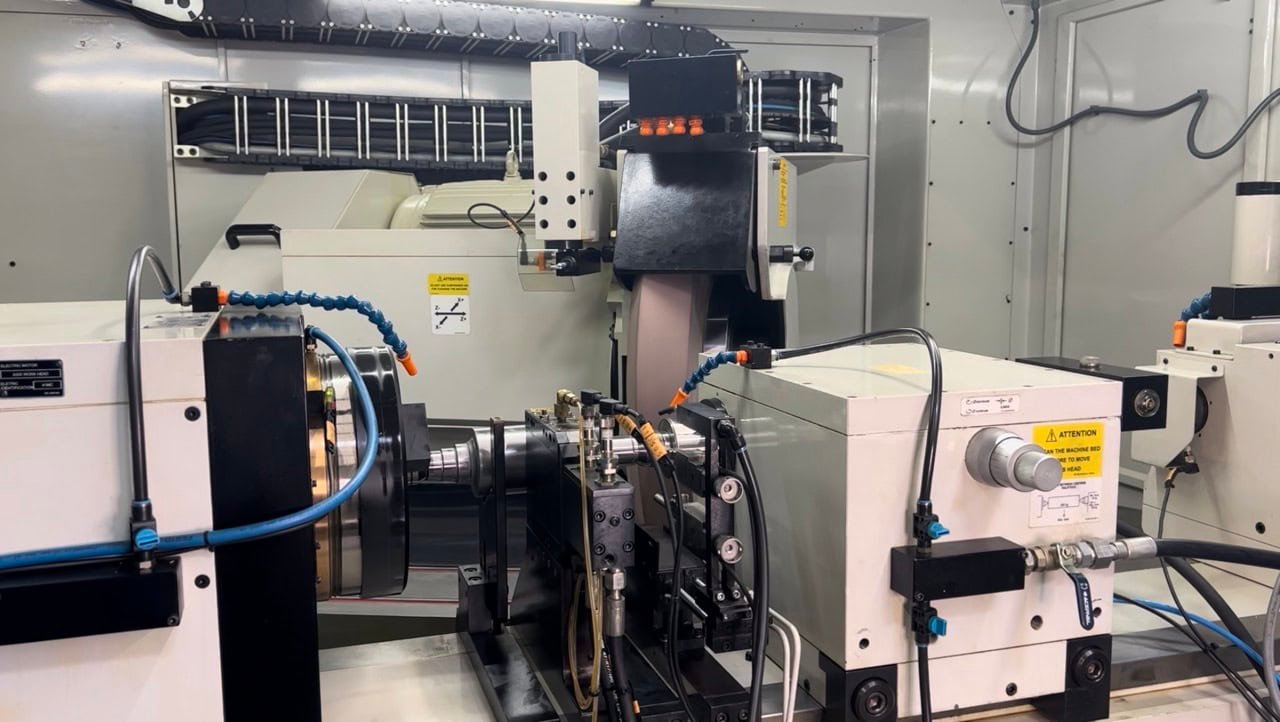

Tailstock
Stroke of the tailstock sleeve: 2.36”
Internal taper: MT5
Taper correction: 0,15 mm
Equipped With:

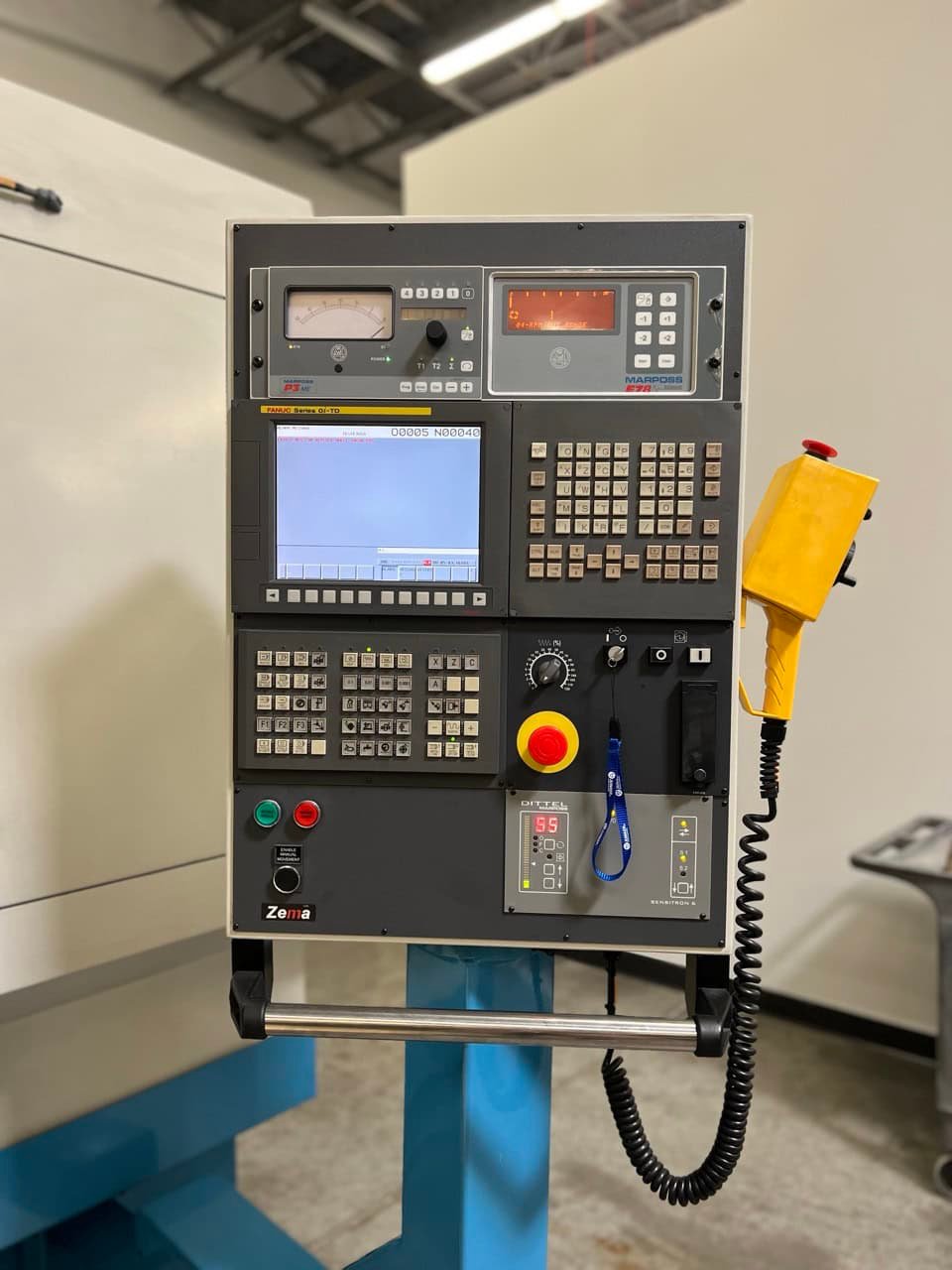

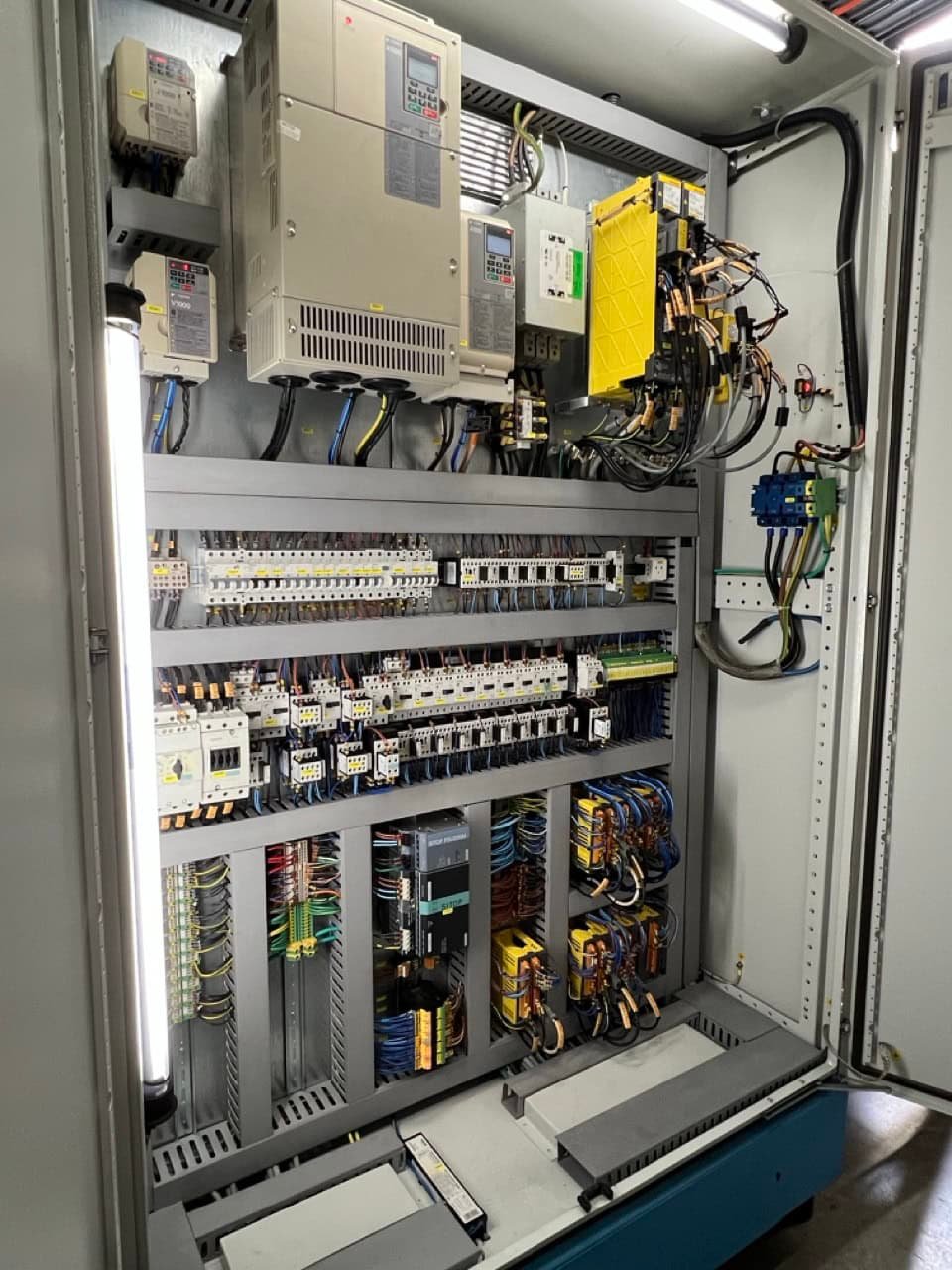

Fanuc 0i TD Control
High Frequency Dressing Spindle

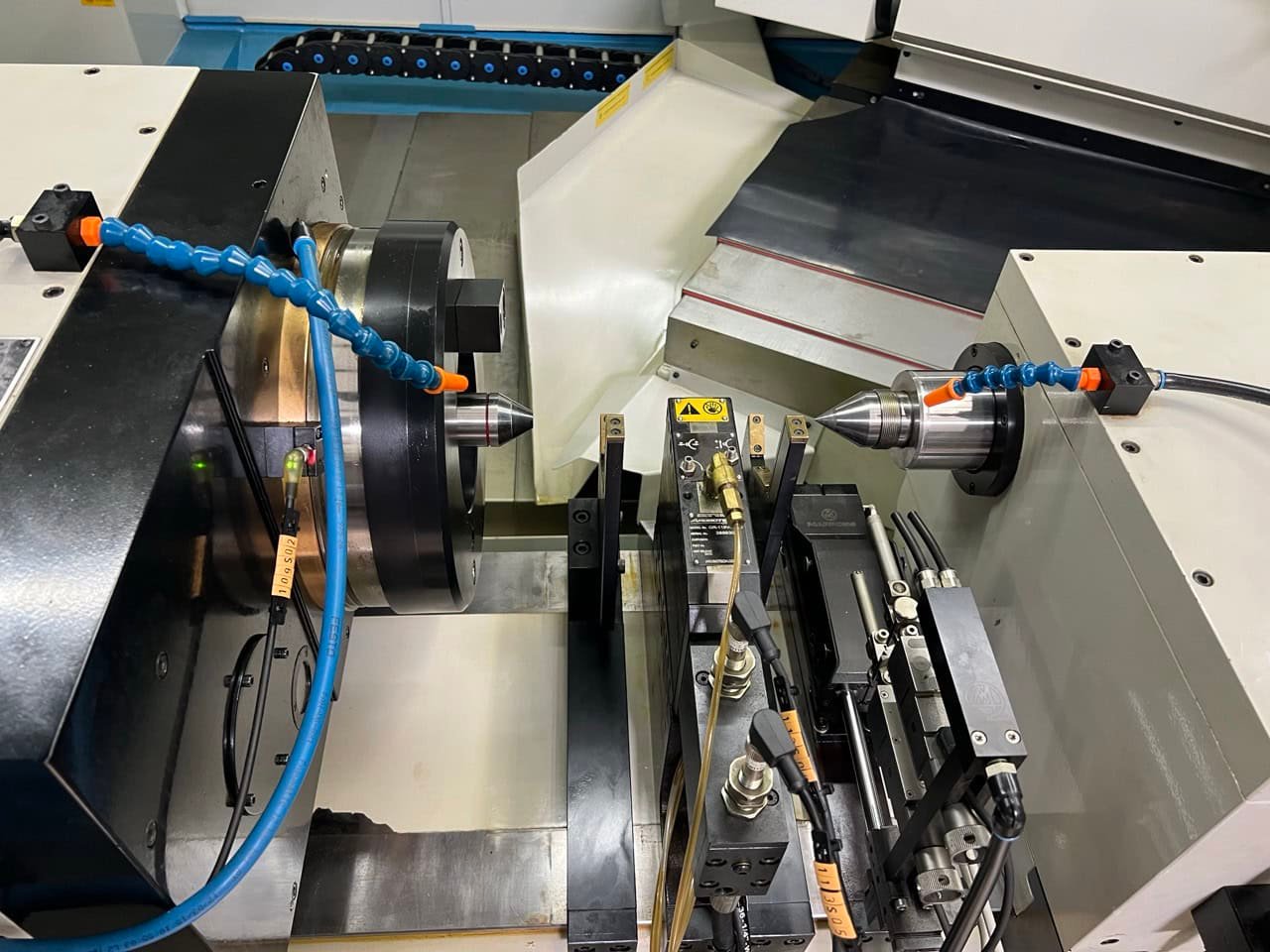

Workhead with Hydraulic Cylinder

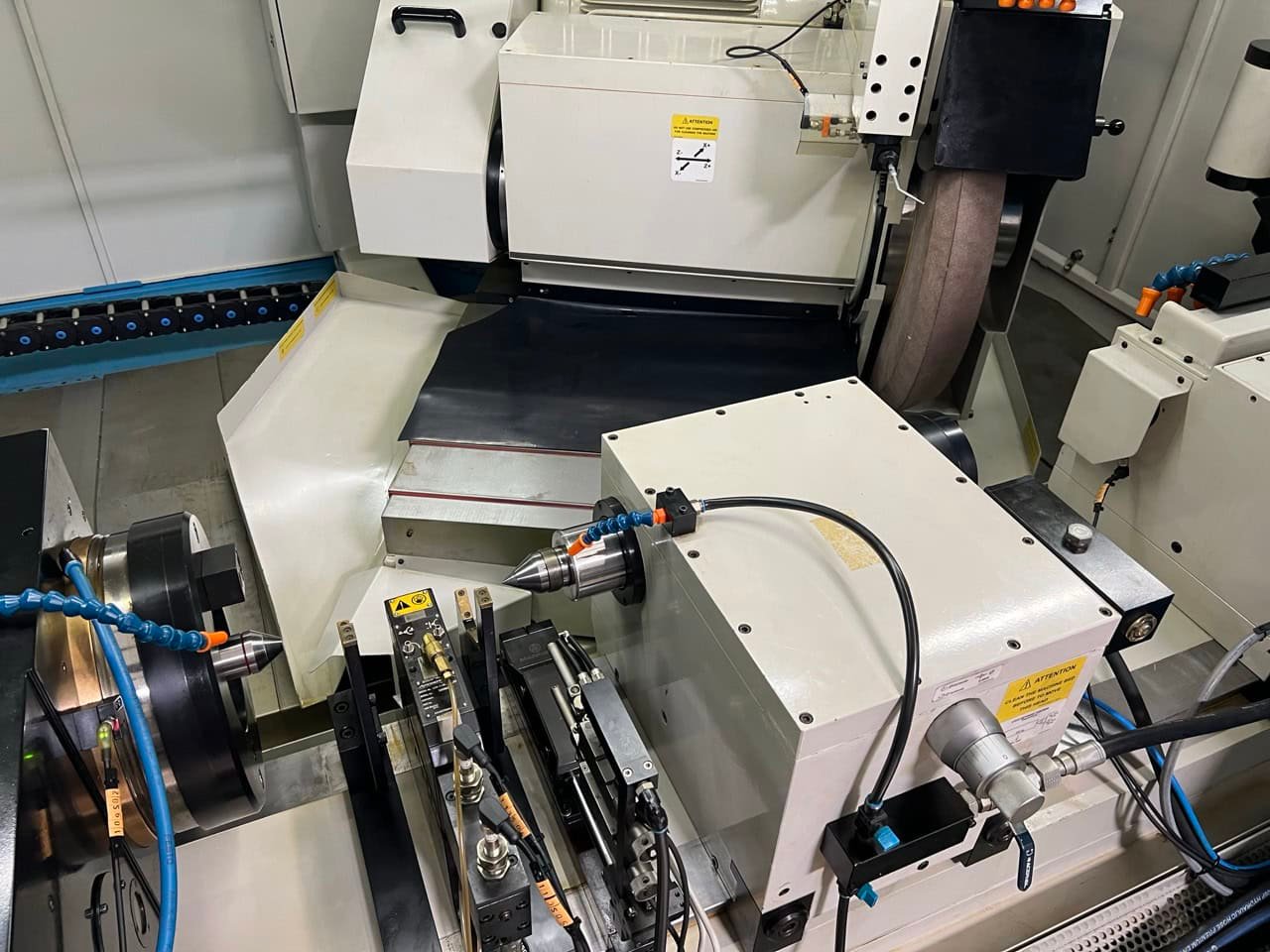

Tailstock
Tailstock Actuation
Diamond Dressing Wheel
Steady
Jaw Insert for Steady
