Description
Equipment Overview

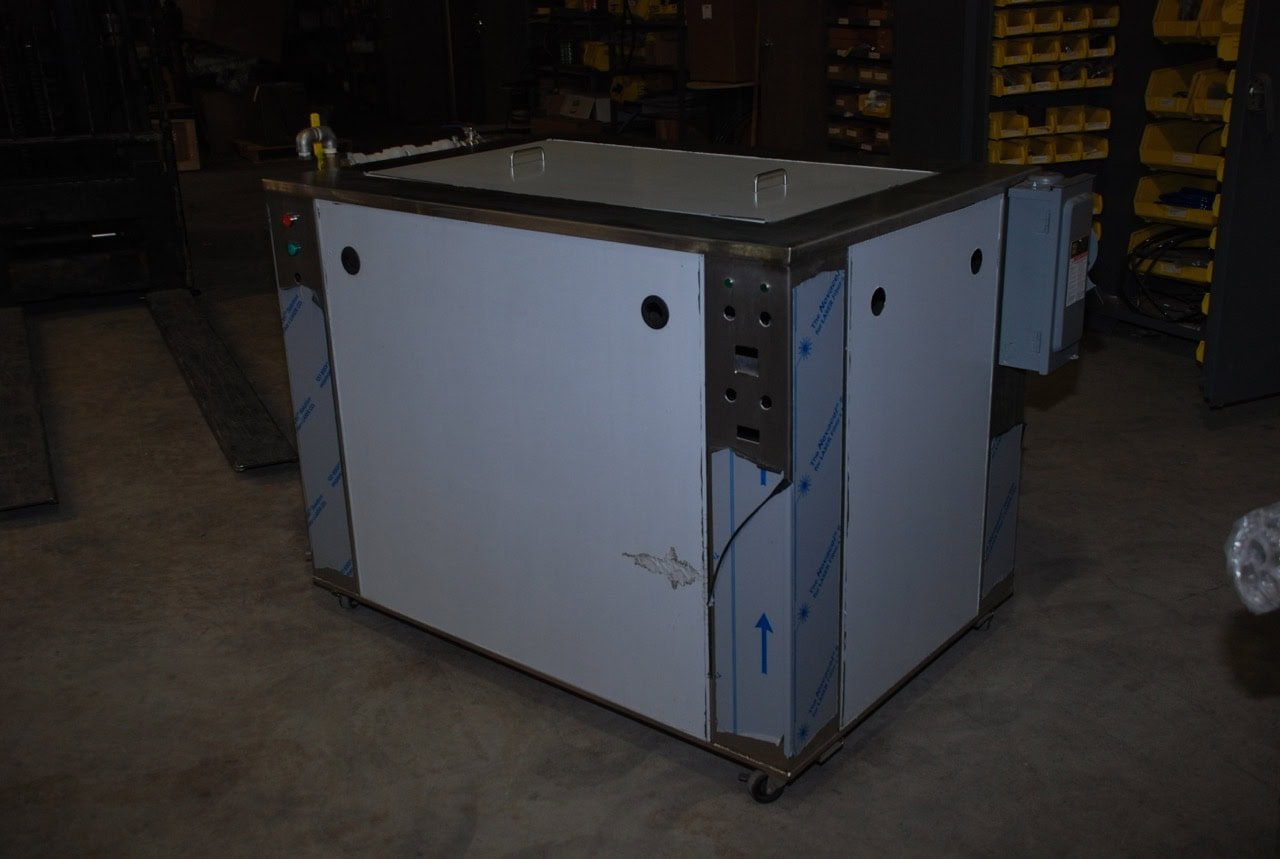

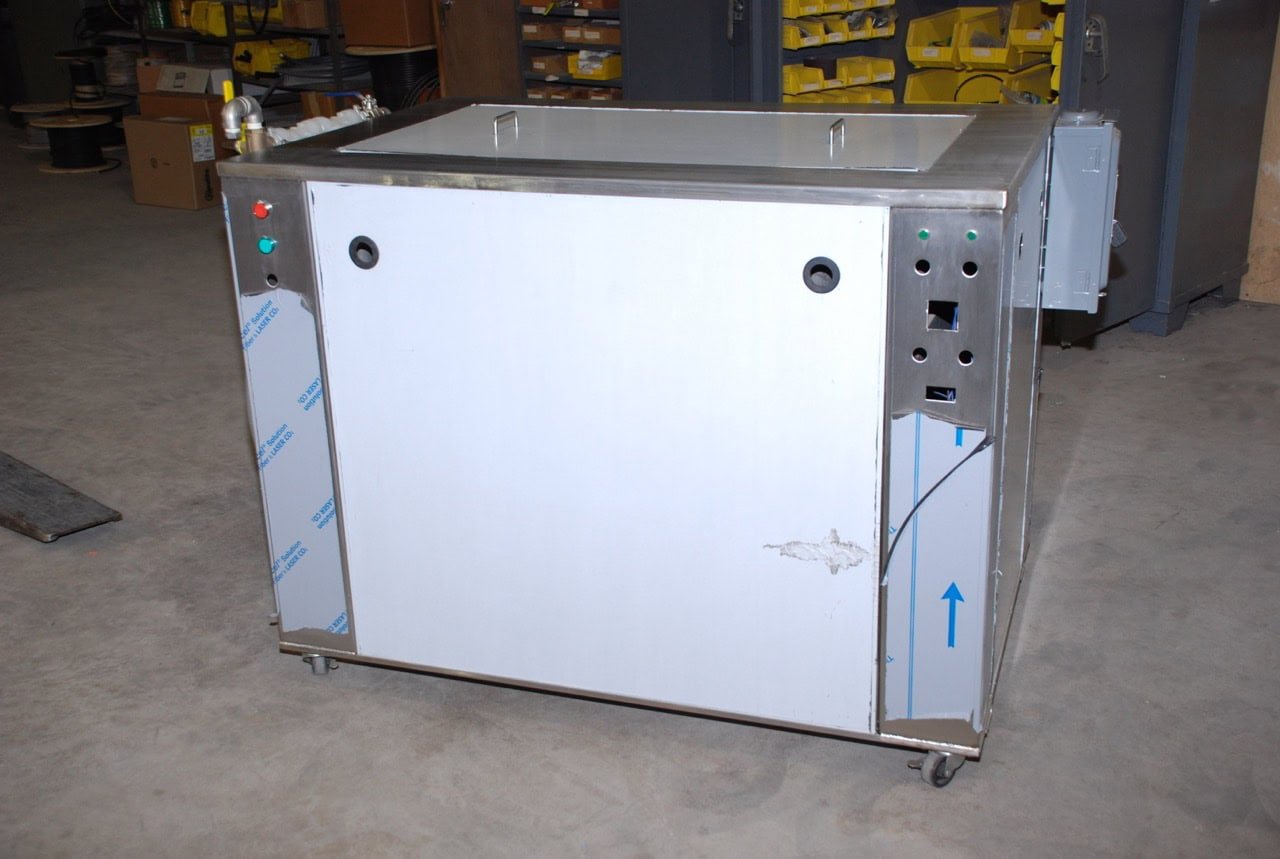

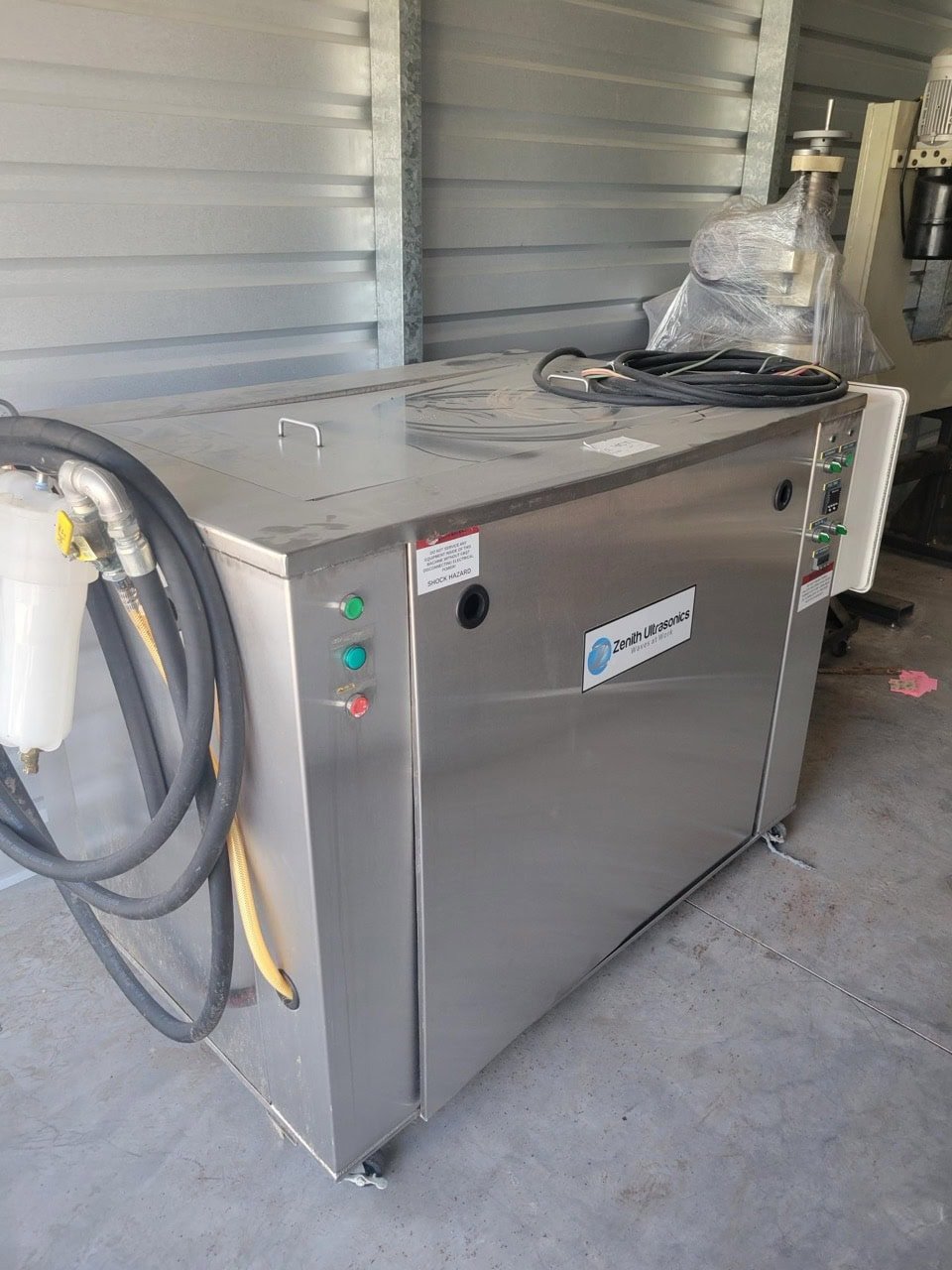

The ZENITH ACS-70S is a fully enclosed ultrasonic cleaning system designed for mid-size industrial applications including aerospace, manufacturing, and precision component washing. With a 70-gallon capacity, dual-filtration system, and 10,180 watts of total heating and ultrasonic power, this model is engineered for high-reliability, deep-clean immersion cycles in demanding environments.
Key Features and Specifications
Brand: Zenith Ultrasonics
Model: ACS-70S
Power Requirements:
– Voltage: 208V
– Phase: 3-phase
– Amperage: 37 amps
– Power: 10,180 watts
Tank Capacity: Approx. 70 gallons

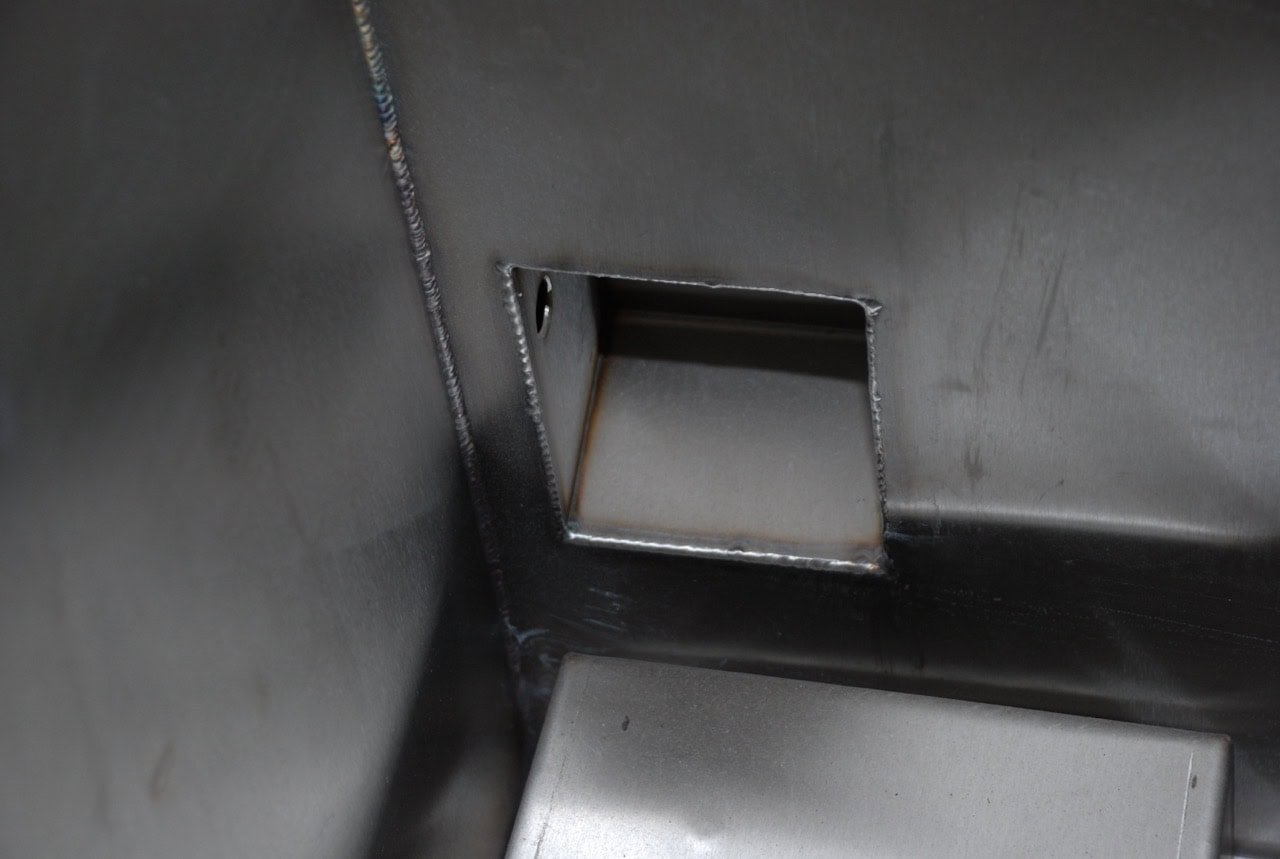

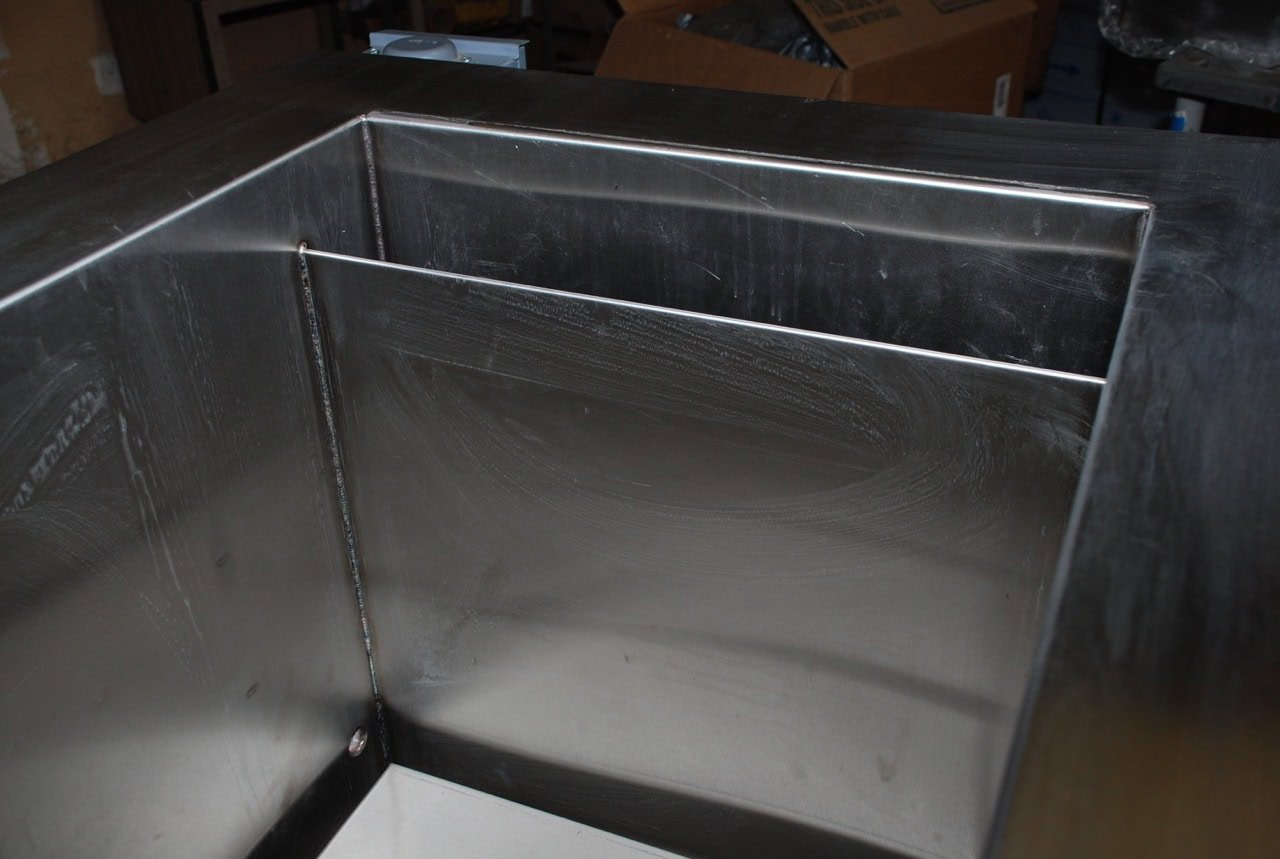

Tank Construction:
– All-welded 316 stainless steel
– Fully insulated side panels
– Lift-off stainless tank lid with integrated handles
– Sloped bottom and drain port
Ultrasonic Transducers: Bottom-mounted heavy-duty transducers in baffle configuration

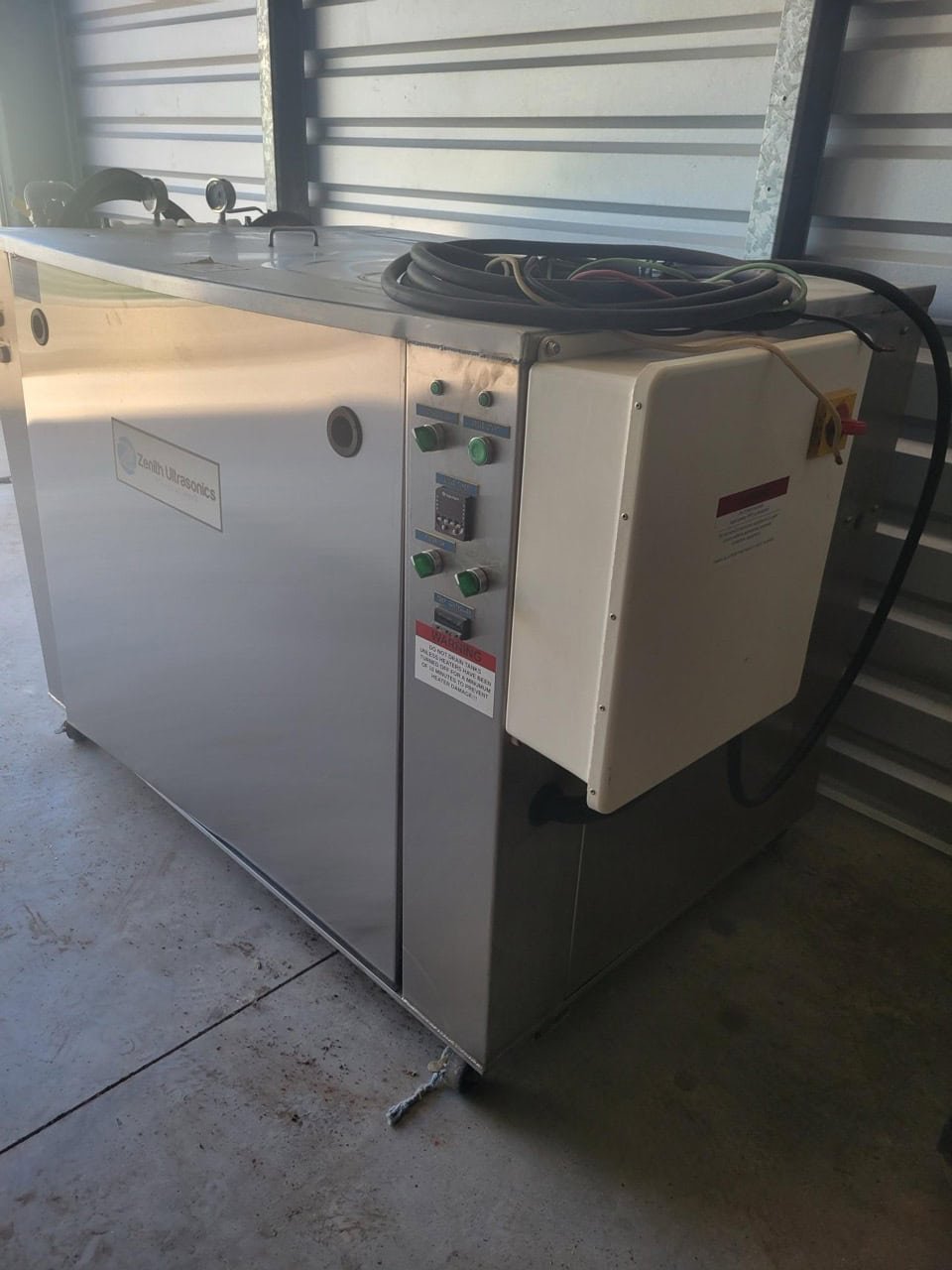

Controls:
– PID-style digital temperature control
– Front-panel cycle switches with status indicators
– Emergency stop
– Integrated wiring bundle
Filtration:
– Dual-cartridge external filter system
– Quick-connect plumbing
Mobility: Heavy-duty casters with locking front wheels

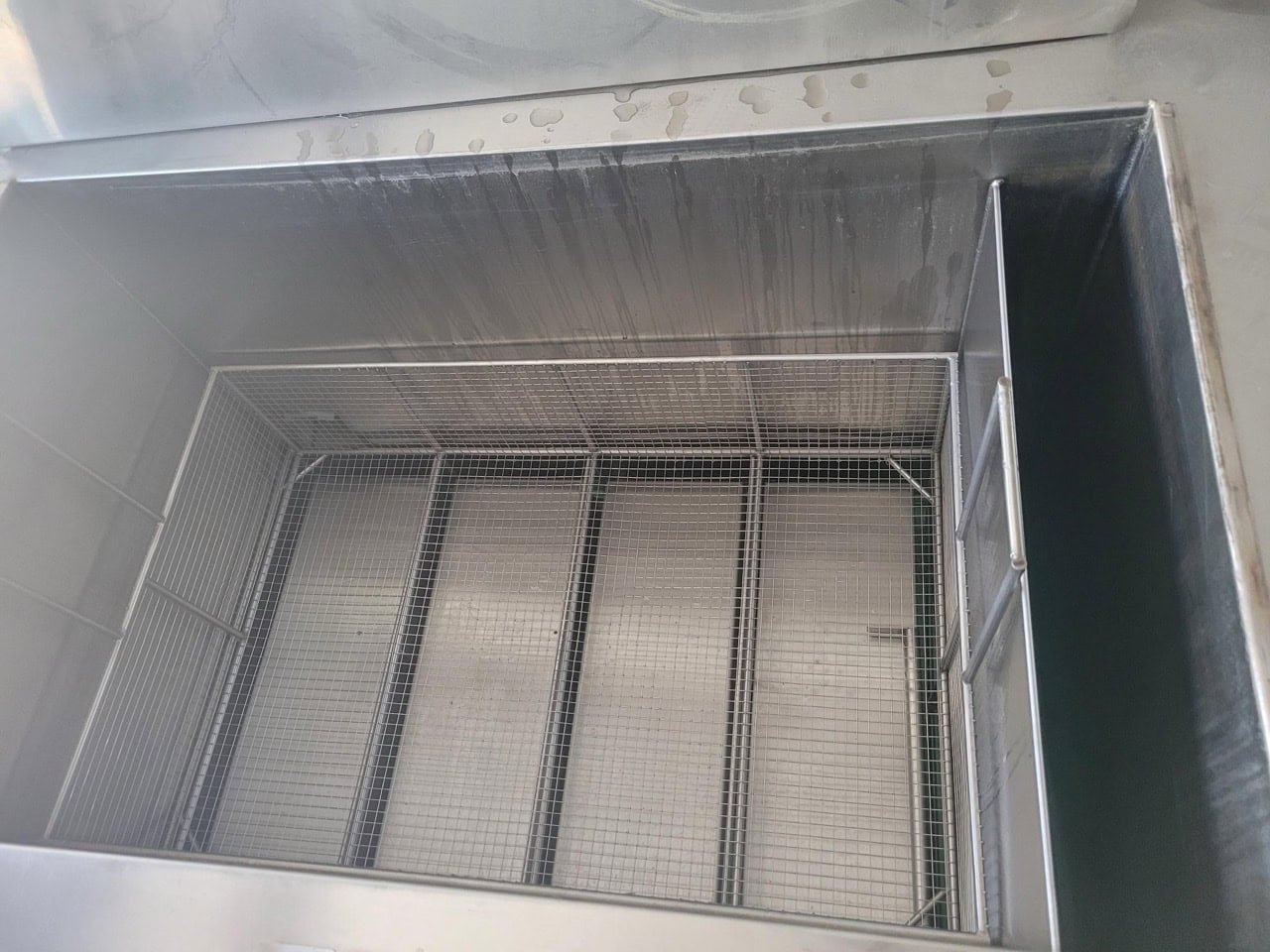

Accessory Basket:
– Stainless steel mesh insert
– Lift-out design
Finish: Brushed stainless with protective film partially intact (some units)
Safety:
– Electrical enclosure mounted externally
– Grounded chassis
– Over-temp trip on heater
