Description
Used Zhangjiagang Bottling Line for Still Beverages in Glass Bottles with Bottle Washer, Filler, Crowner, and Labeler:
Previously used for filling 7 oz bottles of Sake beverage at a rate of 15 bpm

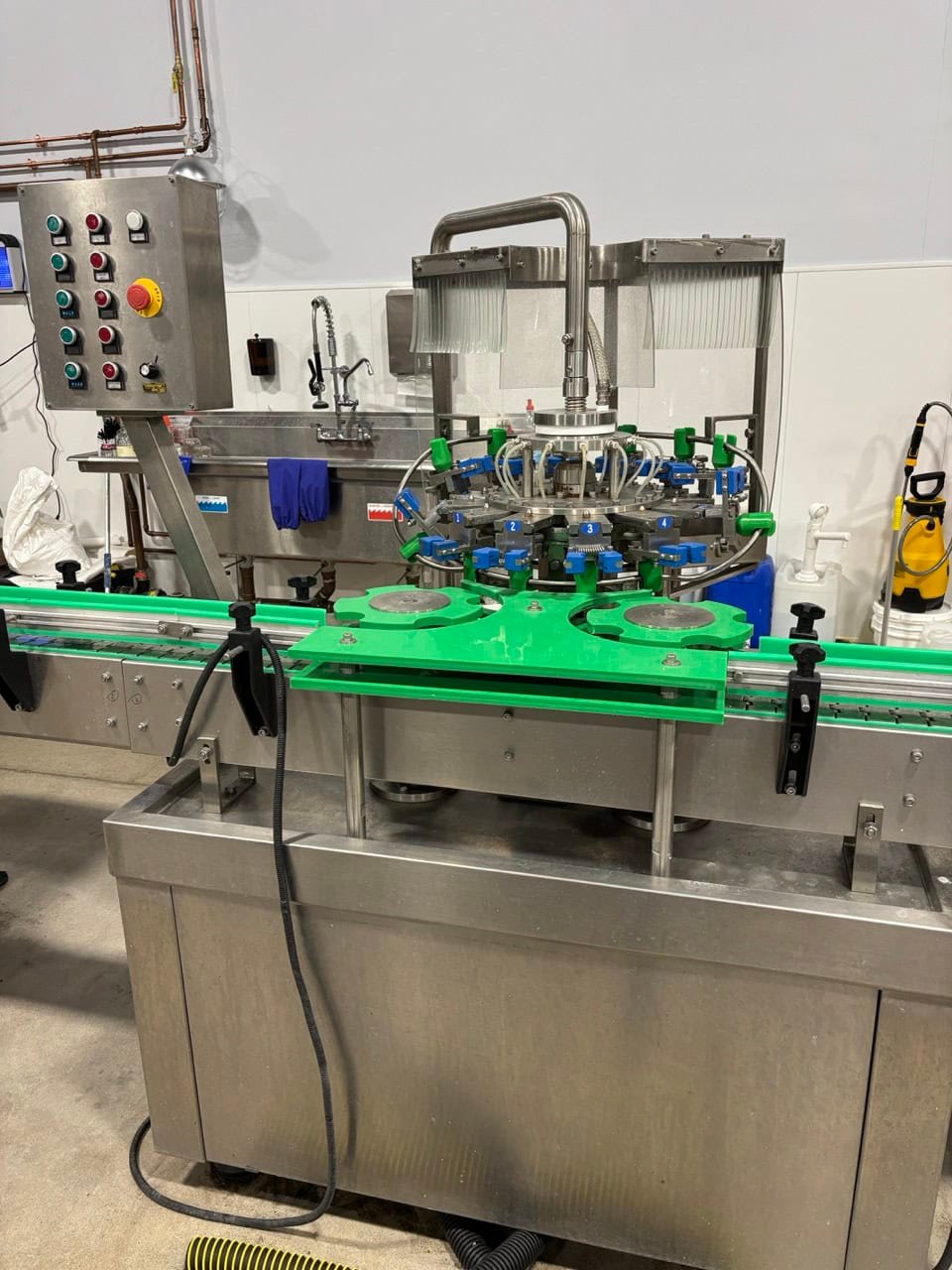

Automatic Bottle Washing Machine
– Washing heads: 12
– Production capacity: 1000-2400 bph
– Application bottle type: diameter 50-100mm, height 160-320mm (with change parts, not included)
– 3 Phase
– Power: 1.2kw
– Dimensions: 1200mm L x 1380mm W x 1680mm H
– Weight: 900kg

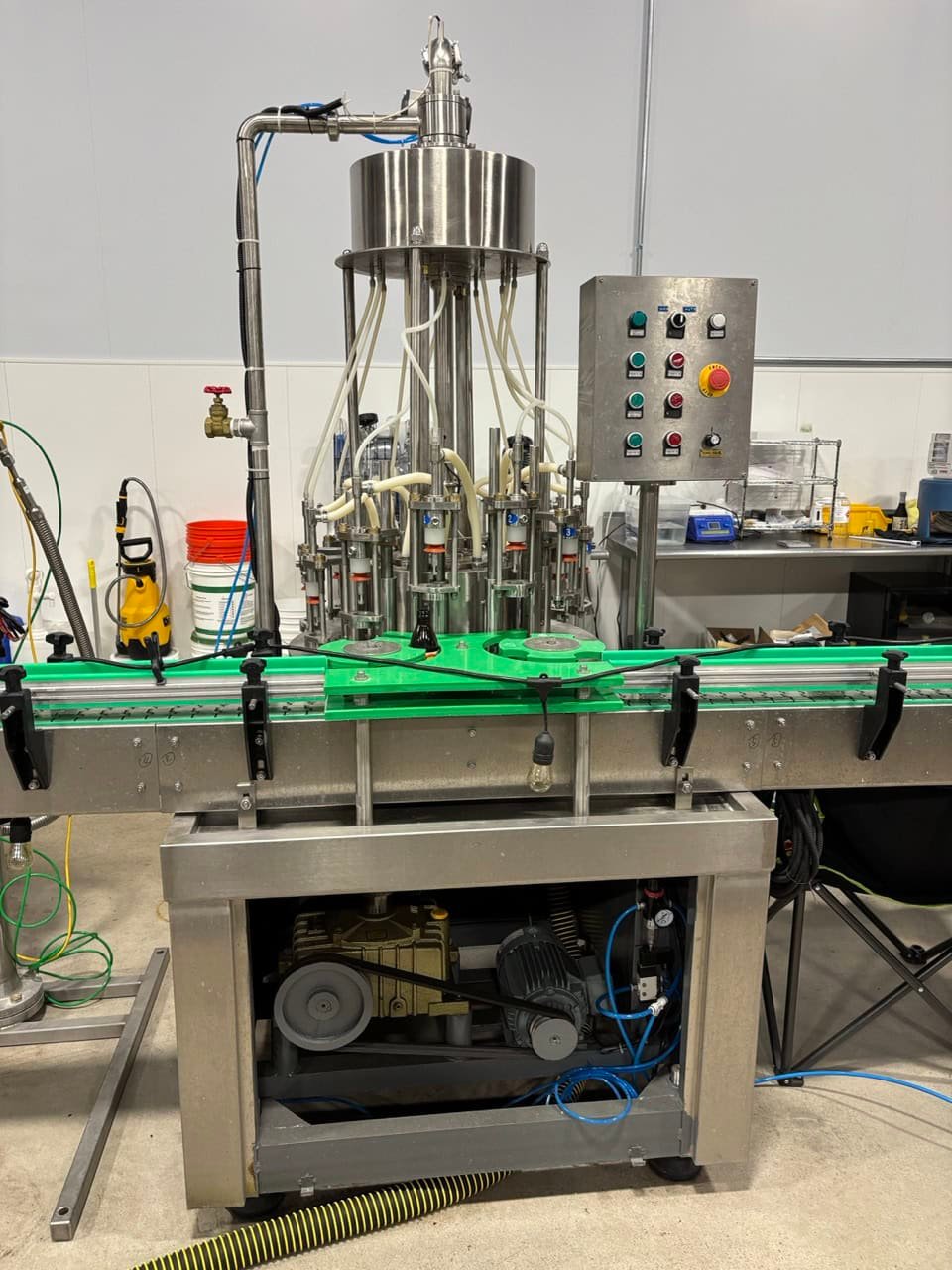

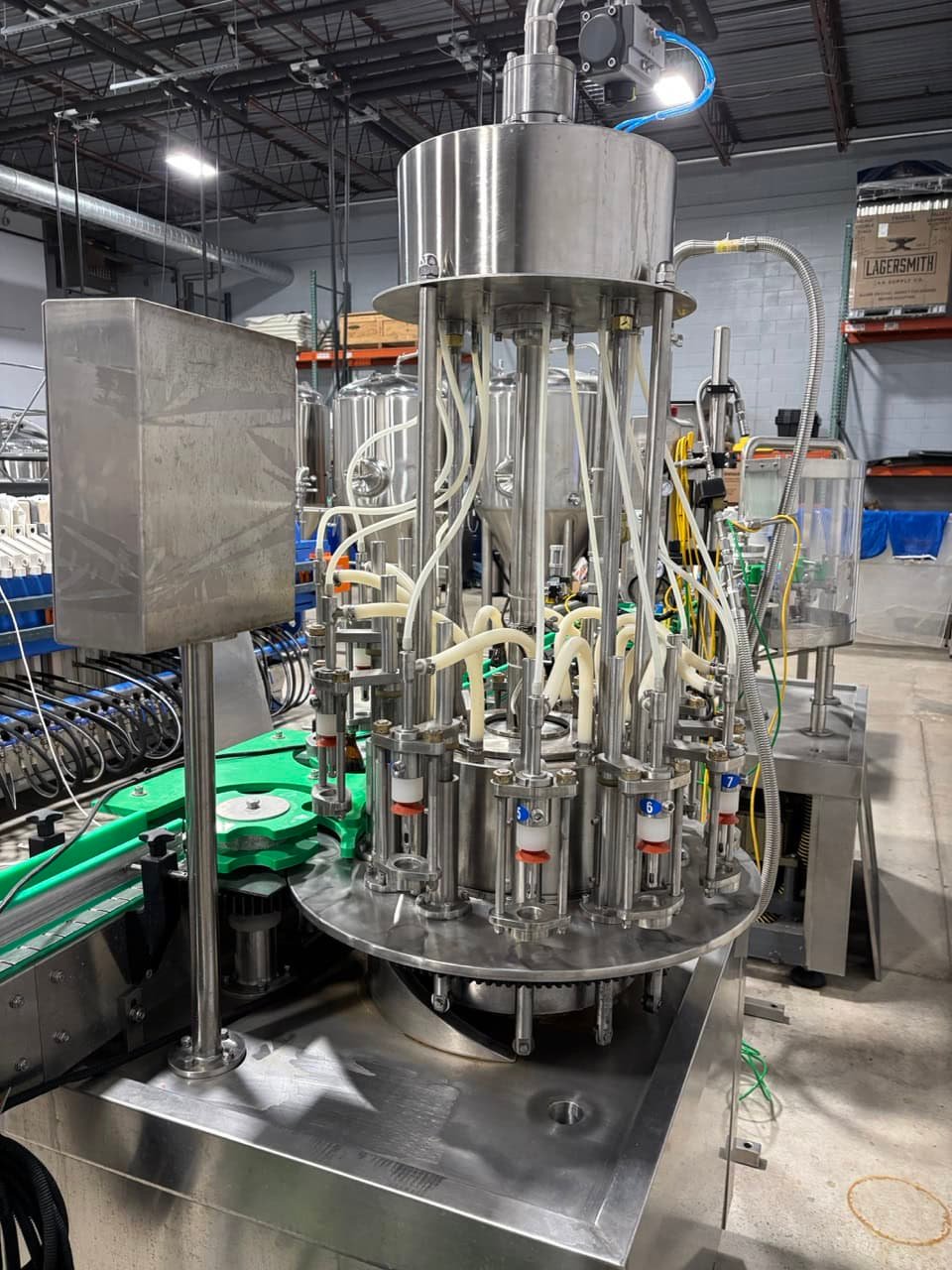

Automatic Filling Machine: This filling machine is for filling glass bottles; it is widely used in filling non-carbonated drinks, such as mineral water, purified water, wine, vinegar, soy sauce and so on. Fully-closed beverage-holding tank makes it conform to requirements of law of food sanitation.
– Filling heads: 12
– Capacity: 1000-2000 bph based on 500ml PET bottles
– 3 Phase
– Power: 1.5kw
– Dimensions: 1050mm L x 1050mm W x 2100mm H
– Weight: 1000kg

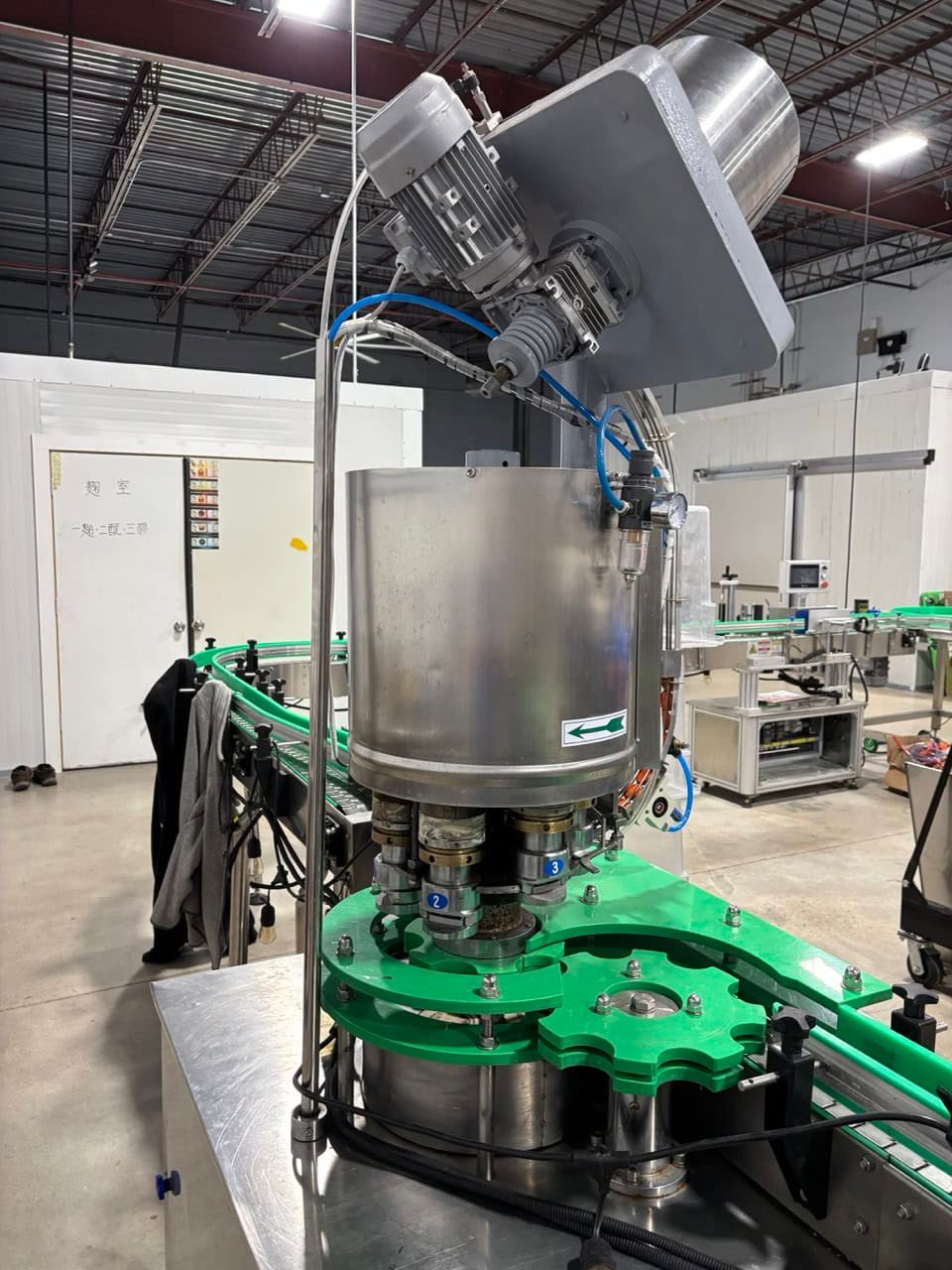

Automatic Capping Machine for Sealing Crown Caps on glass bottles:
– Capacity: 2000 bph
– Bottle type: height: 150-320mm, volumes: 50 ml, 330ml, 750ml (with change parts, not included)
– Power: 1.5kw
– Dimensions: 1000mm L x 500mm W x 1850mm H
– Weight: 700kg

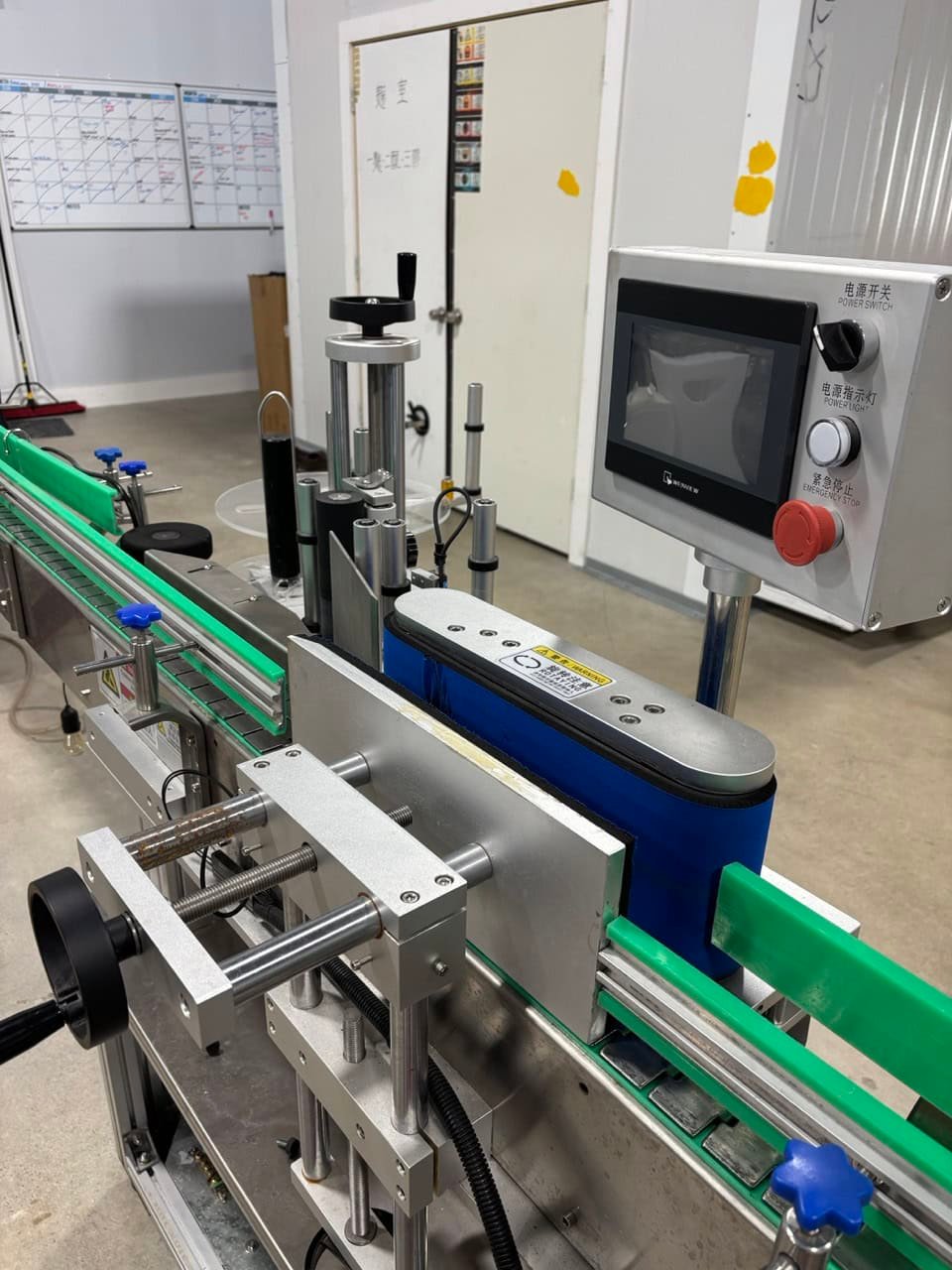

JDN-630 Pressure Sensitive Label Machine:
– Capacity: 1000-4000 bph
– Voltage: 220V, 50Hz
– Label spec:
Height: 10mm-150mm
Length: 15-300mm
– Roller size:
Inside: 76mm
Outside: 300mm
– Weight: 180kg
– Dimensions: 1800mm L x 800mm W x 1300 mm H

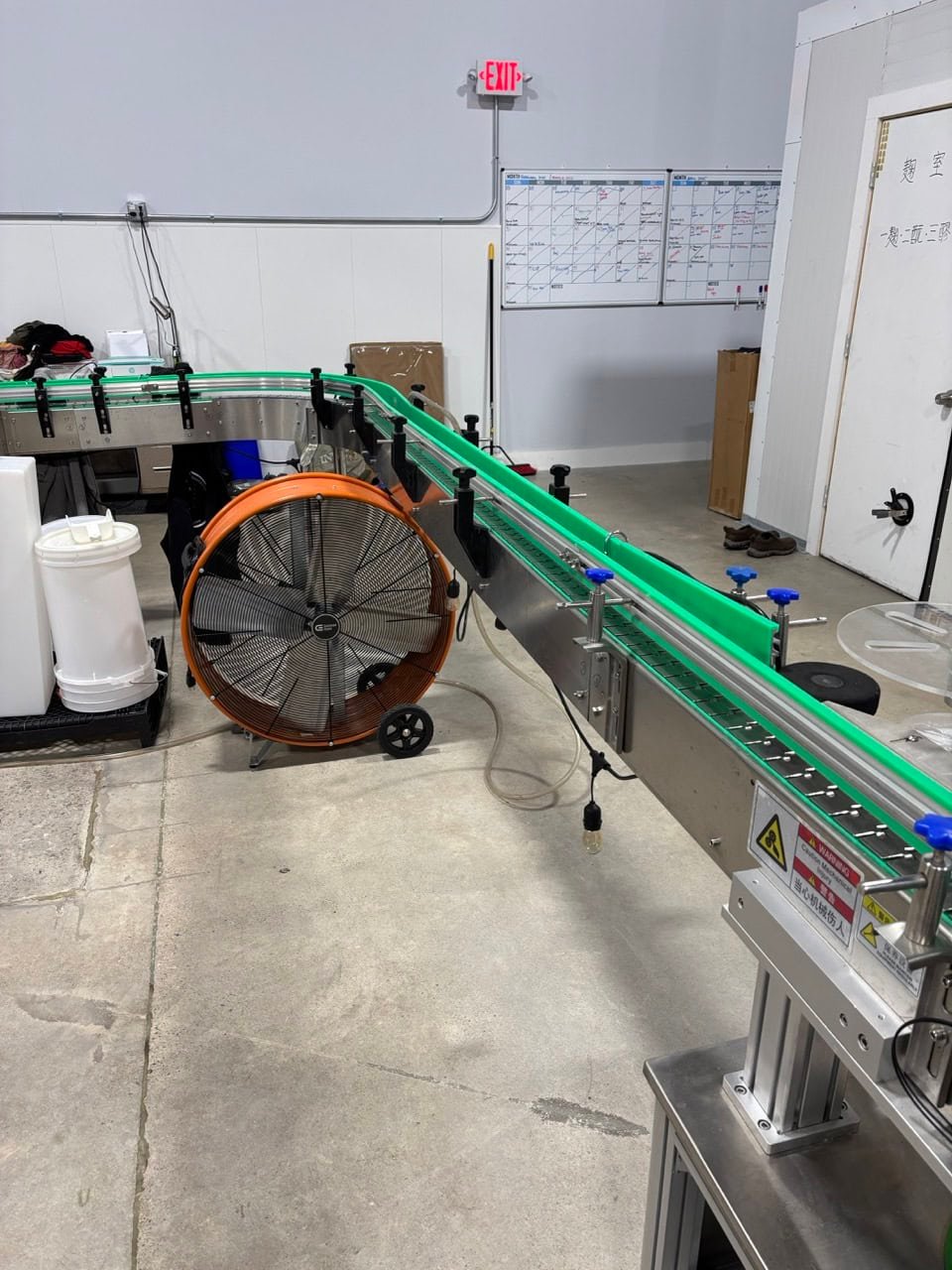

Front and rear collection accumulation tables
